 <h3>What Is Amps to kW Conversion?</h3>
 <p>Amps to kilowatts conversion is an electrical calculation used to estimate the active power associated with a measured current and a known supply voltage. An ammeter or clamp meter measures current in amperes, while electrical equipment, generators and power systems are commonly rated in watts or kilowatts. The conversion connects these electrical quantities through the power equations.</p>
 <p>Ampere (A) is the SI unit of electric current. Kilowatt (kW) is a unit of power equal to one thousand watts. Current alone cannot determine power: voltage is also required, and AC calculations generally require the power factor. The correct equation also depends on whether the circuit is DC, single-phase AC or three-phase AC.</p>

 <h3>1. Understanding Electrical Power</h3>
 <p>Electrical power is the rate at which electrical energy is transferred or converted by a load. In a DC circuit, voltage and current have fixed polarities and the ideal electrical power equation is the product of voltage and current. For AC circuits, voltage and current vary with time. In a sinusoidal AC circuit, the phase relationship between voltage and current is represented by the power factor.</p>
 <div class="ak-equation">\[P=V\times I\quad\text{(DC)}\]</div>
 <p>The watt is the SI unit of power. Since one kilowatt is equal to 1000 watts, divide a power result in watts by 1000 to express it in kilowatts.</p>
 <div class="ak-equation">\[1\,kW=1000\,W\qquad P(kW)=\frac{P(W)}{1000}\]</div>

 <h3>2. DC Amps to kW Formula</h3>
 <p>For an ideal DC load, active electrical power is the product of DC voltage and current. Power factor is not used in this DC equation because there is no AC phase displacement between voltage and current.</p>
 <div class="ak-equation">\[P(kW)=\frac{V(V)\times I(A)}{1000}\]</div>
 <p><b>Worked example:</b> A DC battery system supplies 48 V and the connected load draws 25 A. The power is:</p>
 <div class="ak-equation">\[P=\frac{48\times25}{1000}=\frac{1200}{1000}=1.2\,kW\]</div>
 <p>Therefore, the ideal electrical input power is 1.2 kW. Real systems may have wiring losses, converter losses and changing battery voltage, so measured power can vary.</p>

 <h3>3. Single-Phase AC Amps to kW Formula</h3>
 <p>Single-phase AC supplies are common in residential buildings, offices, lighting circuits and small appliances. For sinusoidal AC, active power depends on RMS voltage, RMS current and power factor. The power factor accounts for the phase relationship between voltage and current; it is not the same as equipment efficiency.</p>
 <div class="ak-equation">\[P(W)=V\times I\times PF\]</div>
 <p>To convert the result into kilowatts:</p>
 <div class="ak-equation">\[P(kW)=\frac{V(V)\times I(A)\times PF}{1000}\]</div>
 <p><b>Worked example:</b> Calculate the active power of a single-phase load drawing 20 A from a 230 V supply at a power factor of 0.8.</p>
 <div class="ak-equation">\[P=\frac{230\times20\times0.8}{1000}=3.68\,kW\]</div>
 <p>The load uses approximately 3.68 kW of active electrical power under the stated operating conditions.</p>

 <h3>4. Three-Phase AC Amps to kW Formula</h3>
 <p>Three-phase AC power is widely used in industrial plants, commercial buildings, pumps, compressors, HVAC systems and large motors. A balanced three-phase system has three sinusoidal phase quantities separated by 120 electrical degrees. The total active power is three times the active power per phase.</p>
 <h4>Using Line-to-Line Voltage (L-L)</h4>
 <p>When the voltage entered is the RMS voltage measured between two lines, the balanced three-phase active power equation is:</p>
 <div class="ak-equation">\[P(kW)=\frac{\sqrt{3}\times V_{L-L}\times I_L\times PF}{1000}\]</div>
 <p><b>Worked example:</b> A balanced three-phase load draws 30 A from a 415 V line-to-line supply at PF 0.85.</p>
 <div class="ak-equation">\[P=\frac{1.732\times415\times30\times0.85}{1000}\approx18.34\,kW\]</div>
 <h4>Using Line-to-Neutral Voltage (L-N)</h4>
 <p>For a balanced star-connected system, line-to-neutral voltage can also be used. The corresponding total active power formula is:</p>
 <div class="ak-equation">\[P(kW)=\frac{3\times V_{L-N}\times I_L\times PF}{1000}\]</div>
 <p>For the same balanced system, line-to-line voltage is √3 times line-to-neutral voltage. Both equations produce the same total power when the matching voltage value is entered.</p>
 <div class="ak-equation">\[V_{L-L}=\sqrt{3}\times V_{L-N}\]</div>

 <h3>5. What Is Power Factor?</h3>
 <p>Power factor (PF) is the ratio of active power to apparent power in an AC system. It indicates how effectively apparent power is converted into useful active power. For a sinusoidal system, power factor is the cosine of the phase angle between voltage and current.</p>
 <div class="ak-equation">\[PF=\frac{P(kW)}{S(kVA)}=\cos\phi\]</div>
 <p>A lower power factor means that a higher current is required to deliver the same active power at a fixed voltage. Power factor correction equipment, such as capacitor banks, may be used in suitable installations to improve power factor. Actual PF should be taken from measurements or equipment documentation whenever possible.</p>
 <div class="ak-tablewrap"><table><thead><tr><th>Example load</th><th>Illustrative power factor</th><th>Comment</th></tr></thead><tbody>
 <tr><td>Resistive heater</td><td>Approximately 1.00</td><td>Voltage and current are nearly in phase</td></tr>
 <tr><td>Incandescent lamp</td><td>Approximately 1.00</td><td>Predominantly resistive load</td></tr>
 <tr><td>Induction motor, loaded</td><td>0.80–0.90</td><td>Varies with motor design and loading</td></tr>
 <tr><td>Induction motor, lightly loaded</td><td>May be lower</td><td>Use measured/nameplate data</td></tr>
 <tr><td>Electronic equipment</td><td>Varies</td><td>Depends on input power-supply design</td></tr>
 </tbody></table></div>
 <p>These are broad illustrative ranges, not guaranteed equipment specifications. Modern non-linear loads may also have distortion power factor, so a simple phase-angle interpretation may not describe every installation.</p>

 <h3>6. Difference Between kW, kVA and kVAr</h3>
 <p>Active power (kW) represents the average power converted into useful work, heat or light. Apparent power (kVA) is the product of RMS voltage and RMS current with the appropriate phase-system factor. Reactive power (kVAr) represents energy exchanged between the source and reactive elements such as inductors and capacitors.</p>
 <div class="ak-equation">\[S(kVA)=\frac{V\times I}{1000}\quad\text{(single phase)}\]</div>
 <div class="ak-equation">\[S(kVA)=\frac{\sqrt{3}\times V_{L-L}\times I}{1000}\quad\text{(balanced three phase)}\]</div>
 <div class="ak-equation">\[P(kW)=S(kVA)\times PF\]</div>
 <div class="ak-tablewrap"><table><thead><tr><th>Quantity</th><th>Symbol</th><th>Unit</th><th>Meaning</th></tr></thead><tbody>
 <tr><td>Active power</td><td>P</td><td>kW</td><td>Average real power</td></tr>
 <tr><td>Apparent power</td><td>S</td><td>kVA</td><td>Voltage-current product</td></tr>
 <tr><td>Reactive power</td><td>Q</td><td>kVAr</td><td>Reactive energy exchange rate</td></tr>
 <tr><td>Power factor</td><td>PF</td><td>Dimensionless</td><td>Active power divided by apparent power</td></tr>
 </tbody></table></div>

 <h3>7. Amps to kW Conversion Examples</h3>
 <div class="ak-tablewrap"><table><thead><tr><th>Supply type</th><th>Current</th><th>Voltage</th><th>PF</th><th>Calculated power</th></tr></thead><tbody>
 <tr><td>DC</td><td>25 A</td><td>48 V</td><td>Not used</td><td>1.20 kW</td></tr>
 <tr><td>Single phase AC</td><td>20 A</td><td>230 V</td><td>0.80</td><td>3.68 kW</td></tr>
 <tr><td>Single phase AC</td><td>10 A</td><td>230 V</td><td>1.00</td><td>2.30 kW</td></tr>
 <tr><td>Three phase AC (L-L)</td><td>30 A</td><td>415 V</td><td>0.85</td><td>18.34 kW</td></tr>
 <tr><td>Three phase AC (L-L)</td><td>16 A</td><td>400 V</td><td>0.90</td><td>9.98 kW</td></tr>
 </tbody></table></div>
 <p>Values are rounded to two decimal places and assume balanced three-phase loading where applicable. They are examples of the mathematical formulas, not equipment ratings.</p>

 <h3>8. How to Use the Amps to kW Calculator</h3>
 <ul>
  <li><b>Select current type:</b> Choose DC, AC single phase or AC three phase.</li>
  <li><b>Enter current:</b> Type the measured or specified current in amperes.</li>
  <li><b>Enter voltage:</b> Use the correct RMS supply voltage for the selected system.</li>
  <li><b>Select three-phase voltage:</b> Choose line-to-line or line-to-neutral to match the voltage entered.</li>
  <li><b>Enter power factor:</b> For AC systems, enter a value greater than zero and up to 1. DC does not require PF.</li>
  <li><b>Calculate:</b> Press Calculate to display power in kW, W and mW, along with the formula and substituted values.</li>
 </ul>
 <p>The result panel also displays apparent power where applicable. Check the input values and selected voltage type before relying on the calculated result.</p>

 <h3>9. Engineering Applications</h3>
 <p>Amps-to-kW calculations are useful for preliminary assessment of electrical loads and for understanding the relationship between measured current and power. Engineers and technicians may use the calculation when checking motor loads, estimating generator loading, reviewing distribution panels, comparing equipment demand or interpreting clamp-meter readings. It can also support classroom exercises involving Ohm&#8217;s law, AC power and three-phase systems.</p>
 <ul>
  <li><b>Motor assessment:</b> Estimate electrical input power from measured current, voltage and PF.</li>
  <li><b>Generator loading:</b> Relate current measurements to active power demand.</li>
  <li><b>Distribution systems:</b> Compare calculated load power across circuits.</li>
  <li><b>Energy management:</b> Understand instantaneous power before estimating energy consumption.</li>
  <li><b>Electrical education:</b> Practice the use of DC and AC power equations.</li>
 </ul>

 <h3>10. Important Engineering Considerations and Limitations</h3>
 <p>This calculator uses standard ideal power equations. For a real motor, the electrical input power is not the same as mechanical shaft output power. If the known value is motor shaft output, efficiency must be included to estimate electrical input power. For example, input power is approximately output power divided by efficiency.</p>
 <div class="ak-equation">\[P_{input}=\frac{P_{output}}{\eta}\]</div>
 <p>For non-linear loads, harmonics and waveform distortion can affect the relationship between RMS current, voltage and power factor. For unbalanced three-phase systems, a single balanced-load equation may not provide an accurate total; each phase may need to be measured or evaluated separately. Instrument accuracy, voltage variation and load operating conditions also influence the result.</p>
 <div class="ak-note"><b>Electrical safety note:</b> This calculator provides an estimate of active power. It does not select cable size, fuse or circuit-breaker rating and does not replace measurements, equipment nameplate data, applicable electrical codes or review by a qualified electrical professional. Never work on live electrical equipment unless properly trained and authorised.</div>

 <h3>11. Conclusion</h3>
 <p>Converting amperes to kilowatts requires current and voltage, with power factor included for AC active-power calculations. DC uses the simple voltage-current product. Single-phase AC includes power factor, while balanced three-phase AC uses the √3 factor with line-to-line voltage or the factor 3 with line-to-neutral voltage. Selecting the correct supply type and voltage reference is essential for a meaningful result.</p>
 <p>The Amps to kW Calculator provides a convenient way for students, electricians and engineers to perform preliminary calculations and understand the relationship between electrical current and active power.</p>
</div>

<div class="ak-card ak-faq">
 <h3>Frequently Asked Questions</h3>
 <details><summary>1. How do I convert amps to kW?</summary><p>Multiply current by voltage. For AC active power, also multiply by power factor. For three-phase systems, use the appropriate three-phase factor. Divide watts by 1000 to obtain kW.</p></details>
 <details><summary>2. What is the DC amps to kW formula?</summary><p>P(kW) = V(V) × I(A) / 1000. Power factor is not needed for the basic DC equation.</p></details>
 <details><summary>3. What is the single-phase AC formula?</summary><p>P(kW) = V × I × PF / 1000, using RMS voltage and current.</p></details>
 <details><summary>4. What is the three-phase AC formula?</summary><p>With line-to-line voltage, P(kW) = √3 × VLL × I × PF / 1000 for a balanced three-phase system.</p></details>
 <details><summary>5. Should I use line-to-line or line-to-neutral voltage?</summary><p>Select the voltage type that matches the value you enter. Use √3 with line-to-line voltage or 3 with line-to-neutral voltage for a balanced star system.</p></details>
 <details><summary>6. Why is power factor required for AC?</summary><p>Power factor accounts for the phase relationship and, in practical systems, may also reflect waveform distortion. It is needed to calculate active power from RMS voltage and current.</p></details>
 <details><summary>7. Does kW mean the same as kVA?</summary><p>No. kW is active power, while kVA is apparent power. For a sinusoidal system, kW = kVA × power factor.</p></details>
 <details><summary>8. Can I use this calculator for motors?</summary><p>Yes, for an estimate of electrical input power when current, voltage and PF are known. If you start with motor shaft output power, include motor efficiency to estimate electrical input.</p></details>
</div>
<div class="ak-footer">HowElectrical – Electrical Engineering Calculators and Learning Resources</div>
</div>

<script>
(function () {
  function g(id) { return document.getElementById(id); }

  /* true only for finite numbers greater than 0 (no < > & characters used,
     so CMS editors cannot corrupt the code) */
  function isPos(x) {
    if (isNaN(x)) { return false; }
    if (!isFinite(x)) { return false; }
    if (x === 0) { return false; }
    return Math.max(x, 0) === x;
  }

  function fmt(n) {
    return Number(n).toLocaleString("en-IN", { maximumFractionDigits: 3 });
  }

  function showError(msg) {
    g("ak-error").textContent = msg;
    g("ak-result").className = "ak-result";
  }

  function updateFields() {
    var mode = g("ak-system").value;
    var volts = g("ak-voltage");
    g("ak-pf-field").style.display = (mode === "dc") ? "none" : "";
    g("ak-vtype-field").style.display = (mode === "three") ? "" : "none";
    if (mode === "single") {
      g("ak-vtype").value = "ll";
      if (volts.value === "" || Number(volts.value) === 415) { volts.value = "230"; }
    }
    if (mode === "three") {
      if (volts.value === "" || Number(volts.value) === 230) { volts.value = "415"; }
    }
    if (mode === "dc") { g("ak-vtype").value = "ll"; }
  }

  function calculate() {
    g("ak-error").textContent = "";

    var mode = g("ak-system").value;
    var I = parseFloat(g("ak-current").value);
    var V = parseFloat(g("ak-voltage").value);
    var F = parseFloat(g("ak-pf").value);

    if (!isPos(I)) { showError("Please enter a current greater than 0 A."); return; }
    if (!isPos(V)) { showError("Please enter a voltage greater than 0 V."); return; }
    if (mode !== "dc") {
      if (!isPos(F)) { showError("Power factor must be greater than 0 and up to 1."); return; }
      if (Math.min(F, 1) !== F) { showError("Power factor must be greater than 0 and up to 1."); return; }
    }

    var P, formula, work, S = "N/A";

    if (mode === "dc") {
      P = V * I / 1000;
      formula = "P(kW) = V × I / 1000";
      work = "P = " + V + " × " + I + " / 1000";
    } else if (mode === "single") {
      P = V * I * F / 1000;
      formula = "P(kW) = V × I × PF / 1000";
      work = "P = " + V + " × " + I + " × " + F + " / 1000";
      S = fmt(V * I / 1000) + " kVA";
    } else if (g("ak-vtype").value === "ll") {
      P = Math.sqrt(3) * V * I * F / 1000;
      formula = "P(kW) = √3 × VLL × I × PF / 1000";
      work = "P = 1.73205 × " + V + " × " + I + " × " + F + " / 1000";
      S = fmt(Math.sqrt(3) * V * I / 1000) + " kVA";
    } else {
      P = 3 * V * I * F / 1000;
      formula = "P(kW) = 3 × VLN × I × PF / 1000";
      work = "P = 3 × " + V + " × " + I + " × " + F + " / 1000";
      S = fmt(3 * V * I / 1000) + " kVA";
    }

    if (!isPos(P)) { showError("Unable to calculate. Please check the entered values."); return; }

    g("ak-kw").textContent = fmt(P) + " kW";
    g("ak-outkw").textContent = fmt(P) + " kW";
    g("ak-w").textContent = fmt(P * 1000) + " W";
    g("ak-mw").textContent = fmt(P * 1000000) + " mW";
    g("ak-kva").textContent = S;
    g("ak-showa").textContent = fmt(I) + " A";
    g("ak-showpf").textContent = (mode === "dc") ? "Not applicable" : fmt(F);
    g("ak-formula").textContent = formula;
    g("ak-working").textContent = work + " = " + fmt(P) + " kW";
    g("ak-result").className = "ak-result show";
  }

  function resetAll() {
    g("ak-system").value = "single";
    g("ak-current").value = "20";
    g("ak-voltage").value = "230";
    g("ak-pf").value = "0.8";
    g("ak-vtype").value = "ll";
    updateFields();
    calculate();
  }

  function onSystemChange() { updateFields(); calculate(); }

  /* global fallbacks used by the inline onclick attributes */
  window.akCalc = calculate;
  window.akReset = resetAll;

  function bind(id, evt, fn) {
    var node = g(id);
    if (node) { node.addEventListener(evt, fn); }
  }

  bind("ak-system", "change", onSystemChange);
  bind("ak-current", "input", calculate);
  bind("ak-voltage", "input", calculate);
  bind("ak-pf", "input", calculate);
  bind("ak-vtype", "change", calculate);

  updateFields();
  calculate();
})();
</script>
<script>
window.MathJax = window.MathJax || { tex: { inlineMath: [["\\(", "\\)"]], displayMath: [["\\[", "\\]"]] }, options: { skipHtmlTags: ["script", "noscript", "style", "textarea", "pre", "code"] } };
</script>
<script async="async" src="https://cdn.jsdelivr.net/npm/mathjax@3/es5/tex-chtml.js"></script>
<p>The post <a href="https://howelectrical.com/amps-to-kw-calculator/">Amps to kW Calculator – Convert Amps to Kilowatts (DC &#038; AC)</a> appeared first on <a href="https://howelectrical.com">Electrical and Electronics Blog</a>.</p>
]]></content:encoded>

					<wfw:commentRss>https://howelectrical.com/amps-to-kw-calculator/feed/</wfw:commentRss>
			<slash:comments>0</slash:comments>


			</item>
		<item>
		<title>kW to Amps Calculator – DC, Single Phase &#038; Three Phase</title>
		<link>https://howelectrical.com/kw-to-amps-calculator/</link>
					<comments>https://howelectrical.com/kw-to-amps-calculator/#respond</comments>

		<dc:creator><![CDATA[admin]]></dc:creator>
		<pubDate>Wed, 11 Nov 2026 11:00:36 +0000</pubDate>
				<category><![CDATA[Basic Electrical]]></category>
		<guid isPermaLink="false">https://howelectrical.com/?p=5050</guid>

					<description><![CDATA[<p>Convert kW to amps easily with our DC, single phase and three phase calculator. Includes formulas, power factor, electrical equations and examples.</p>
<p>The post <a href="https://howelectrical.com/kw-to-amps-calculator/">kW to Amps Calculator – DC, Single Phase &#038; Three Phase</a> appeared first on <a href="https://howelectrical.com">Electrical and Electronics Blog</a>.</p>
]]></description>
										<content:encoded><![CDATA[
<div id="kwamp-tool">
<style>
#kwamp-tool{
 --primary:#1769e0;--dark:#14243a;--muted:#64748b;
 --border:#dce5ef;
 font-family:Arial,Helvetica,sans-serif;color:var(--dark);
 line-height:1.65;width:100%;max-width:1100px;margin:20px auto;
}
#kwamp-tool *{box-sizing:border-box}
#kwamp-tool .kw-hero{
 background:linear-gradient(125deg,#102b50,#1769e0);
 color:#fff;padding:28px 22px;border-radius:15px;margin-bottom:20px;
}
#kwamp-tool .kw-hero h2{color:#fff;font-size:27px;margin:0 0 8px}
#kwamp-tool .kw-hero p{margin:0;color:#e2edff}
#kwamp-tool .kw-card{
 background:#fff;border:1px solid var(--border);border-radius:13px;
 padding:22px;margin-bottom:20px;box-shadow:0 4px 18px #14243a0b;
}
#kwamp-tool h3{font-size:21px;margin:0 0 15px;color:#14243a}
#kwamp-tool h4{font-size:17px;margin:18px 0 8px}
#kwamp-tool p{margin:9px 0}
#kwamp-tool .kw-grid{display:grid;grid-template-columns:repeat(2,minmax(0,1fr));gap:15px}
#kwamp-tool .kw-field label{display:block;font-size:14px;font-weight:700;margin-bottom:6px}
#kwamp-tool input,#kwamp-tool select{
 display:block;width:100%;min-width:0;padding:12px 13px;border:1px solid #cbd5e1;
 border-radius:8px;font-size:16px;background:#fff;color:#14243a;
}
#kwamp-tool input:focus,#kwamp-tool select:focus{outline:2px solid #93c5fd;border-color:var(--primary)}
#kwamp-tool .kw-help{font-size:12px;color:var(--muted);margin-top:4px}
#kwamp-tool .kw-buttons{display:flex;gap:10px;flex-wrap:wrap;margin-top:18px}
#kwamp-tool button{
 border:0;border-radius:8px;padding:12px 22px;font-size:15px;
 font-weight:700;cursor:pointer;
}
#kwamp-tool .kw-calculate{background:var(--primary);color:#fff}
#kwamp-tool .kw-reset{background:#e8eef6;color:#24364b}
#kwamp-tool button:hover{filter:brightness(.94)}
#kwamp-tool .kw-result{
 background:#eff6ff;border:1px solid #bfdbfe;border-radius:12px;
 padding:19px;margin-top:20px;display:none;
}
#kwamp-tool .kw-result.show{display:block}
#kwamp-tool .kw-main-result{text-align:center;padding:10px}
#kwamp-tool .kw-main-result span{font-size:14px;color:#475569}
#kwamp-tool .kw-main-result strong{
 display:block;font-size:38px;color:#155ac0;line-height:1.4;overflow-wrap:anywhere;
}
#kwamp-tool .kw-output-grid{display:grid;grid-template-columns:repeat(3,minmax(0,1fr));gap:10px;margin-top:12px}
#kwamp-tool .kw-output{background:#fff;border:1px solid #dbeafe;padding:12px;border-radius:9px;text-align:center}
#kwamp-tool .kw-output b{display:block;font-size:19px;color:#1458b2;overflow-wrap:anywhere}
#kwamp-tool .kw-output small{color:#64748b}
#kwamp-tool .kw-steps{background:#fff;border-radius:9px;padding:14px;margin-top:13px;overflow-wrap:anywhere}
#kwamp-tool .kw-message{color:#b91c1c;font-weight:600;margin-top:12px}
#kwamp-tool .kw-equation{
 background:#f1f5f9;border-left:4px solid var(--primary);
 padding:15px;border-radius:5px;margin:12px 0;overflow-x:auto;
}
#kwamp-tool .kw-table-wrap{overflow-x:auto}
#kwamp-tool table{border-collapse:collapse;width:100%;min-width:440px;margin:12px 0}
#kwamp-tool th,#kwamp-tool td{border:1px solid var(--border);padding:11px;text-align:left}
#kwamp-tool th{background:#eaf2ff;color:#173c70}
#kwamp-tool .kw-note{background:#fff7e6;border-left:4px solid #e8a126;padding:13px;border-radius:5px;margin:15px 0}
#kwamp-tool .kw-diagram{background:#f5f9ff;border:1px solid var(--border);border-radius:12px;padding:15px;text-align:center;overflow:hidden}
#kwamp-tool .kw-diagram svg{width:100%;max-width:700px;height:auto}
#kwamp-tool .kw-wire{stroke:#2563eb;stroke-width:4;fill:none}
#kwamp-tool .kw-load{fill:#dbeafe;stroke:#1769e0;stroke-width:3}
#kwamp-tool .kw-flow{stroke:#f59e0b;stroke-width:4;stroke-dasharray:9 9;fill:none;animation:kwFlow 1s linear infinite}
@keyframes kwFlow{to{stroke-dashoffset:-36}}
#kwamp-tool .kw-pulse{animation:kwPulse 1.5s ease-in-out infinite}
@keyframes kwPulse{50%{opacity:.35}}
#kwamp-tool .kw-article{font-size:15.5px;color:#334155}
#kwamp-tool .kw-article h3{margin-top:25px}
#kwamp-tool .kw-article h4{color:#174b8c}
#kwamp-tool .kw-article ul{padding-left:22px}
#kwamp-tool .kw-article li{margin:6px 0}
#kwamp-tool .kw-faq details{border:1px solid var(--border);border-radius:8px;padding:13px;margin:10px 0;background:#fff}
#kwamp-tool .kw-faq summary{font-weight:700;cursor:pointer}
#kwamp-tool .kw-footer{text-align:center;color:#64748b;font-size:13px;padding:10px}
@media(max-width:600px){
 #kwamp-tool{margin:10px auto}
 #kwamp-tool .kw-hero{padding:22px 16px}
 #kwamp-tool .kw-hero h2{font-size:23px}
 #kwamp-tool .kw-card{padding:15px}
 #kwamp-tool .kw-grid{grid-template-columns:1fr;gap:12px}
 #kwamp-tool .kw-output-grid{grid-template-columns:1fr}
 #kwamp-tool .kw-main-result strong{font-size:32px}
 #kwamp-tool h3{font-size:19px}
 #kwamp-tool .kw-buttons button{flex:1}
}
</style>

<div class="kw-hero">

 <p>Convert kilowatts (kW) into electrical current (Amps) for DC, single-phase and three-phase systems.</p>
</div>

<div class="kw-card">
 <h3>Electrical Current Calculator</h3>
 <div class="kw-grid">
  <div class="kw-field">
   <label for="kw-system">Current Type</label>
   <select id="kw-system">
    <option value="dc">DC</option>
    <option value="single" selected="selected">AC Single Phase</option>
    <option value="three">AC Three Phase</option>
   </select>
  </div>
  <div class="kw-field">
   <label for="kw-power">Power (kW)</label>
   <input id="kw-power" type="number" min="0" step="any" value="5" placeholder="Enter power in kW">
  </div>
  <div class="kw-field" id="kw-voltage-type-field" style="display:none">
   <label for="kw-voltage-type">Voltage Type (Three Phase)</label>
   <select id="kw-voltage-type">
    <option value="ll">Line-to-Line (L-L)</option>
    <option value="ln">Line-to-Neutral (L-N)</option>
   </select>
  </div>
  <div class="kw-field">
   <label for="kw-voltage">Voltage (V)</label>
   <input id="kw-voltage" type="number" min="0" step="any" value="230" placeholder="Enter voltage">
   <div class="kw-help">Enter RMS voltage for AC systems.</div>
  </div>
  <div class="kw-field" id="kw-pf-field">
   <label for="kw-pf">Power Factor (PF)</label>
   <input id="kw-pf" type="number" min="0.01" max="1" step="any" value="0.8">
   <div class="kw-help">Enter a value greater than 0 and up to 1.</div>
  </div>
 </div>
 <div class="kw-buttons">
  <button type="button" class="kw-calculate" id="kw-calculate" onclick="window.kwCalc()">Calculate</button>
  <button type="button" class="kw-reset" id="kw-reset" onclick="window.kwReset()">Reset</button>
 </div>
 <div id="kw-error" class="kw-message" role="alert" aria-live="polite"></div>
 <div class="kw-result" id="kw-result" aria-live="polite">
  <div class="kw-main-result"><span>Calculated Current</span><strong id="kw-amps">0 A</strong></div>
  <div class="kw-output-grid">
   <div class="kw-output"><small>Current in Amps</small><b id="kw-a">0 A</b></div>
   <div class="kw-output"><small>Current in mA</small><b id="kw-ma">0 mA</b></div>
   <div class="kw-output"><small>Apparent Power</small><b id="kw-kva">N/A</b></div>
  </div>
  <div class="kw-steps">
   <b>Calculation Formula</b>
   <div id="kw-formula" style="margin-top:8px"></div>
   <div id="kw-working" style="margin-top:10px"></div>
  </div>
 </div>
</div>

<div class="kw-card">
 <h3>Animated Electrical Working Diagram</h3>
 <p>The animated dashed line illustrates a conceptual power-flow path from the supply to the load. It is not a wiring diagram or a representation of electron drift.</p>
 <div class="kw-diagram">
  <svg viewBox="0 0 700 280" role="img" aria-label="Electrical source, current path and load diagram">
   <rect x="15" y="75" width="125" height="115" rx="12" fill="#dbeafe" stroke="#1769e0" stroke-width="3"></rect>
   <text x="77" y="116" text-anchor="middle" font-size="16" font-weight="bold" fill="#173c70">POWER</text>
   <text x="77" y="140" text-anchor="middle" font-size="16" fill="#173c70">SUPPLY</text>
   <text x="77" y="164" text-anchor="middle" font-size="13" fill="#173c70">kW / V</text>
   <path class="kw-wire" d="M140 105 H550"></path>
   <path class="kw-wire" d="M140 165 H550"></path>
   <path class="kw-flow" d="M150 105 H530"></path>
   <path class="kw-flow" d="M530 165 H150"></path>
   <rect class="kw-load" x="550" y="75" width="130" height="115" rx="12"></rect>
   <text x="615" y="118" text-anchor="middle" font-size="16" font-weight="bold" fill="#173c70">ELECTRICAL</text>
   <text x="615" y="142" text-anchor="middle" font-size="16" fill="#173c70">LOAD</text>
   <text x="615" y="165" text-anchor="middle" font-size="13" fill="#173c70">Motor / Device</text>
   <circle class="kw-pulse" cx="345" cy="105" r="9" fill="#f59e0b"></circle>
   <text x="345" y="65" text-anchor="middle" font-size="17" fill="#173c70" font-weight="bold">Current (I)</text>
   <text x="345" y="225" text-anchor="middle" font-size="15" fill="#475569">Electrical Power Flow</text>
   <text x="345" y="250" text-anchor="middle" font-size="12" fill="#64748b">Conceptual illustration – not a wiring diagram</text>
  </svg>
 </div>
</div>

<div class="kw-card kw-article">
 <h3>What is kW to Amps Conversion?</h3>
 <p>Kilowatts to amps conversion is an electrical calculation used to determine the current drawn by an electrical load when its power and supply voltage are known. It is important in electrical engineering, power distribution, motor selection, electrical installation and equipment design.</p>
 <p>Kilowatt (kW) is a unit of active electrical power, whereas ampere (A) is the unit of electric current. Voltage, power factor and the type of electrical supply determine the relationship between these quantities.</p>
 <p>A 5 kW motor does not necessarily draw the same current as a 5 kW resistive heater. AC motors generally operate with a power factor below unity, and their nameplate power may represent mechanical output rather than electrical input.</p>
 <h3>1. Understanding Electrical Power</h3>
 <p>Electrical power represents the rate at which electrical energy is transferred or consumed. The SI unit is watt (W). One kilowatt equals 1000 watts.</p>
 <div class="kw-equation">\[1\,kW=1000\,W\]</div>
 <p>In a DC circuit, electrical power is the product of voltage and current:</p>
 <div class="kw-equation">\[P=V\times I\]</div>
 <p>Rearranging the equation gives:</p>
 <div class="kw-equation">\[I=\frac{P}{V}\]</div>
 <p>When power is entered in kilowatts, multiply it by 1000 to convert it into watts.</p>
 <h3>2. DC kW to Amps Formula</h3>
 <p>In a DC electrical system, current is calculated by dividing electrical power in watts by DC voltage.</p>
 <div class="kw-equation">\[I(A)=\frac{1000\times P(kW)}{V(V)}\]</div>
 <p><b>Example:</b> Find the current of a 2 kW DC load connected to a 200 V DC supply.</p>
 <div class="kw-equation">\[I=\frac{1000\times2}{200}=10\,A\]</div>
 <p>The calculated current is 10 amperes under the stated operating conditions.</p>
 <h3>3. Single Phase AC kW to Amps Formula</h3>
 <p>Single-phase AC power is commonly used in homes, small commercial installations and electrical appliances. For a sinusoidal system, active power depends on voltage, current and power factor.</p>
 <div class="kw-equation">\[P=V\times I\times PF\]</div>
 <p>Rearranging:</p>
 <div class="kw-equation">\[I(A)=\frac{1000\times P(kW)}{V\times PF}\]</div>
 <p><b>Example:</b> Calculate the current of a 5 kW load connected to a 230 V single-phase supply with a power factor of 0.8.</p>
 <div class="kw-equation">\[I=\frac{1000\times5}{230\times0.8}=\frac{5000}{184}=27.17\,A\]</div>
 <p>The calculated current is approximately 27.17 A.</p>
 <h3>4. Three Phase AC kW to Amps Formula</h3>
 <p>Three-phase electrical systems are widely used in industrial power distribution, large motors, pumps, compressors and commercial installations. In a balanced three-phase system, the phase voltages are separated by 120 electrical degrees.</p>
 <p>Using line-to-line RMS voltage, active power is:</p>
 <div class="kw-equation">\[P=\sqrt{3}\times V_L\times I_L\times PF\]</div>
 <p>Therefore, line current is:</p>
 <div class="kw-equation">\[I(A)=\frac{1000\times P(kW)}{\sqrt{3}\times V_L\times PF}\]</div>
 <p><b>Example:</b> Find the current of a 15 kW three-phase load supplied at 415 V with a power factor of 0.85.</p>
 <div class="kw-equation">\[I=\frac{15000}{1.732\times415\times0.85}\approx24.53\,A\]</div>
 <p>The estimated line current is approximately 24.53 A.</p>
 <h3>5. Line-to-Line and Line-to-Neutral Voltage</h3>
 <p>Three-phase systems can be described using line-to-line voltage or line-to-neutral voltage. In a balanced star-connected system:</p>
 <div class="kw-equation">\[V_L=\sqrt{3}\times V_{LN}\]</div>
 <p>For a balanced star system, phase current equals line current. Total active power using line-to-neutral voltage is:</p>
 <div class="kw-equation">\[P=3\times V_{LN}\times I_L\times PF\]</div>
 <p>Hence:</p>
 <div class="kw-equation">\[I(A)=\frac{1000\times P(kW)}{3\times V_{LN}\times PF}\]</div>
 <h3>6. What is Power Factor?</h3>
 <p>Power factor is the ratio of active power to apparent power in an AC electrical system. It indicates how much of the apparent power is converted into active power.</p>
 <div class="kw-equation">\[PF=\frac{P(kW)}{S(kVA)}\]</div>
 <p>For ordinary sinusoidal load calculations, power factor is between 0 and 1. A lower power factor requires more current to deliver the same active power at a given voltage.</p>
 <h4>Typical Power Factor Values</h4>
 <div class="kw-table-wrap"><table>
  <thead><tr><th>Electrical Load</th><th>Typical PF</th></tr></thead>
  <tbody>
   <tr><td>Resistive heater</td><td>1.00</td></tr>
   <tr><td>Incandescent lamp</td><td>Approximately 1.00</td></tr>
   <tr><td>Induction motor at full load</td><td>0.80–0.90</td></tr>
   <tr><td>Induction motor at light load</td><td>0.30–0.60</td></tr>
   <tr><td>Fluorescent lighting</td><td>0.80–0.95</td></tr>
   <tr><td>Synchronous motor</td><td>Varies with excitation</td></tr>
  </tbody>
 </table></div>
 <p>These values are illustrative. For an actual installation, use the equipment nameplate, manufacturer documentation or measured power factor.</p>
 <h3>7. Difference Between kW, kVA, Voltage and Current</h3>
 <div class="kw-table-wrap"><table>
  <thead><tr><th>Quantity</th><th>Symbol</th><th>Unit</th><th>Meaning</th></tr></thead>
  <tbody>
   <tr><td>Active Power</td><td>P</td><td>kW</td><td>Active electrical power</td></tr>
   <tr><td>Apparent Power</td><td>S</td><td>kVA</td><td>RMS voltage-current product with phase factor where applicable</td></tr>
   <tr><td>Voltage</td><td>V</td><td>Volt</td><td>Electrical potential difference</td></tr>
   <tr><td>Current</td><td>I</td><td>Ampere</td><td>Rate of electric charge flow</td></tr>
   <tr><td>Power Factor</td><td>PF</td><td>Dimensionless</td><td>Active/apparent power ratio</td></tr>
  </tbody>
 </table></div>
 <p>Apparent power for an AC load can be calculated from active power and power factor:</p>
 <div class="kw-equation">\[S(kVA)=\frac{P(kW)}{PF}\]</div>
 <h3>8. Conversion Between Amps and Milliamps</h3>
 <p>The ampere is the standard unit of electric current. Milliamperes are often used for small currents in electronic circuits and control systems.</p>
 <div class="kw-equation">\[1\,A=1000\,mA\qquad mA=A\times1000\]</div>
 <p>For example, 2.5 A is equal to 2500 mA.</p>
 <h3>9. Applications of kW to Amps Calculation</h3>
 <ul>
  <li><b>Motor selection:</b> Estimating motor current from its electrical input rating.</li>
  <li><b>Cable sizing:</b> Establishing design current before applying cable-sizing requirements.</li>
  <li><b>Circuit breakers:</b> Helping evaluate protective-device requirements.</li>
  <li><b>Power distribution:</b> Estimating current in single-phase and three-phase systems.</li>
  <li><b>Generator selection:</b> Relating generator power capacity to current demand.</li>
  <li><b>Electrical panels:</b> Estimating currents for distribution boards and industrial equipment.</li>
 </ul>
 <h3>10. Important Engineering Considerations</h3>
 <p>Calculated current is not automatically the correct cable size or circuit-breaker rating. Actual electrical design must consider several additional factors.</p>
 <ul>
  <li>Continuous and starting current of the connected load.</li>
  <li>Conductor material, insulation and permissible temperature.</li>
  <li>Ambient temperature and cable grouping.</li>
  <li>Installation method and voltage drop.</li>
  <li>Short-circuit current and protective-device coordination.</li>
  <li>Harmonics, unbalanced loading and equipment efficiency.</li>
 </ul>
 <div class="kw-note"><b>Safety note:</b> This calculator provides theoretical current estimates. It does not replace equipment nameplate data, applicable electrical standards or a qualified engineer&#8217;s design review. If a motor rating is mechanical output power, include motor efficiency: electrical input power is approximately output power divided by efficiency.</div>
 <h3>11. Conclusion</h3>
 <p>Converting kilowatts to amperes is a fundamental electrical engineering calculation. The correct equation depends on whether the supply is DC, single-phase AC or three-phase AC. Power factor must be included in AC active-power calculations, and three-phase calculations must use the appropriate line voltage or phase voltage relationship.</p>
 <p>This kW to Amps Calculator helps students, electricians and electrical engineers estimate current, understand mathematical relationships and perform preliminary electrical calculations.</p>
</div>

<div class="kw-card kw-faq">
 <h3>Frequently Asked Questions</h3>
 <details><summary>1. How do I convert kW to amps?</summary><p>Multiply kW by 1000 and divide by the appropriate voltage and, for AC active power, the power factor and phase factor where applicable.</p></details>
 <details><summary>2. What is the formula for single-phase kW to amps?</summary><p>I = (1000 × kW) / (Voltage × Power Factor).</p></details>
 <details><summary>3. What is the formula for three-phase kW to amps?</summary><p>I = (1000 × kW) / (1.732 × Line-to-Line Voltage × Power Factor) for a balanced three-phase system.</p></details>
 <details><summary>4. Can I calculate DC current without power factor?</summary><p>Yes. For a DC circuit, current is calculated using I = P / V. Power factor is not required.</p></details>
 <details><summary>5. Why is power factor important?</summary><p>Power factor affects the current required to deliver a given amount of active AC power. A lower power factor results in higher current.</p></details>
 <details><summary>6. How many amps are in 1 kW?</summary><p>There is no single fixed answer. The current depends on voltage, supply type and power factor.</p></details>
 <details><summary>7. Is this calculator suitable for motor calculations?</summary><p>It estimates current when the input power is electrical active input power. If the motor rating is mechanical output power, motor efficiency must also be included.</p></details>
</div>
<div class="kw-footer">HowElectrical – Electrical Engineering Calculators and Learning Resources</div>
</div>

<script>
(function () {
  function g(id) { return document.getElementById(id); }

  /* true only for finite numbers greater than 0.
     No less-than, greater-than or ampersand characters are used in this
     script, so CMS editors cannot corrupt it. */
  function isPos(x) {
    if (isNaN(x)) { return false; }
    if (!isFinite(x)) { return false; }
    if (x === 0) { return false; }
    return Math.max(x, 0) === x;
  }

  function fmt(n) {
    try { return Number(n).toLocaleString("en-IN", { maximumFractionDigits: 3 }); }
    catch (e) { return String(Math.round(n * 1000) / 1000); }
  }

  function setText(id, t) {
    var node = g(id);
    if (node) { node.textContent = t; }
  }

  function showError(msg) {
    g("kw-error").textContent = msg;
    g("kw-result").className = "kw-result";
  }

  function updateFields() {
    var mode = g("kw-system").value;
    var volts = g("kw-voltage");
    g("kw-pf-field").style.display = (mode === "dc") ? "none" : "";
    g("kw-voltage-type-field").style.display = (mode === "three") ? "" : "none";
    if (mode !== "three") { g("kw-voltage-type").value = "ll"; }
    if (mode === "single") {
      if (volts.value === "" || Number(volts.value) === 415) { volts.value = "230"; }
    }
    if (mode === "three") {
      if (volts.value === "" || Number(volts.value) === 230) { volts.value = "415"; }
    }
  }

  function calculate() {
    g("kw-error").textContent = "";

    var mode = g("kw-system").value;
    var vmode = g("kw-voltage-type").value;
    var p = parseFloat(g("kw-power").value);
    var v = parseFloat(g("kw-voltage").value);
    var f = parseFloat(g("kw-pf").value);

    if (!isPos(p)) { showError("Please enter a valid power greater than zero."); return; }
    if (!isPos(v)) { showError("Please enter a valid voltage greater than zero."); return; }
    if (mode !== "dc") {
      if (!isPos(f)) { showError("Power factor must be greater than 0 and not greater than 1."); return; }
      if (Math.min(f, 1) !== f) { showError("Power factor must be greater than 0 and not greater than 1."); return; }
    }

    var cur, formula, work, apparent = "N/A";

    if (mode === "dc") {
      cur = (p * 1000) / v;
      formula = "I = (1000 × P) / V";
      work = "I = (1000 × " + p + ") / " + v;
    } else if (mode === "single") {
      cur = (p * 1000) / (v * f);
      formula = "I = (1000 × P) / (V × PF)";
      work = "I = (1000 × " + p + ") / (" + v + " × " + f + ")";
      apparent = fmt(p / f) + " kVA";
    } else if (vmode === "ll") {
      cur = (p * 1000) / (Math.sqrt(3) * v * f);
      formula = "I = (1000 × P) / (√3 × VLL × PF)";
      work = "I = (1000 × " + p + ") / (1.73205 × " + v + " × " + f + ")";
      apparent = fmt(p / f) + " kVA";
    } else {
      cur = (p * 1000) / (3 * v * f);
      formula = "I = (1000 × P) / (3 × VLN × PF)";
      work = "I = (1000 × " + p + ") / (3 × " + v + " × " + f + ")";
      apparent = fmt(p / f) + " kVA";
    }

    if (!isPos(cur)) { showError("Unable to calculate. Please check the entered values."); return; }

    setText("kw-amps", fmt(cur) + " A");
    setText("kw-a", fmt(cur) + " A");
    setText("kw-ma", fmt(cur * 1000) + " mA");
    setText("kw-kva", apparent);
    setText("kw-formula", formula);
    setText("kw-working", work + " = " + fmt(cur) + " A");
    g("kw-result").className = "kw-result show";
  }

  function resetAll() {
    g("kw-system").value = "single";
    g("kw-power").value = "5";
    g("kw-voltage").value = "230";
    g("kw-pf").value = "0.8";
    g("kw-voltage-type").value = "ll";
    updateFields();
    calculate();
  }

  function onSystemChange() { updateFields(); calculate(); }

  /* global fallbacks used by the inline onclick attributes */
  window.kwCalc = calculate;
  window.kwReset = resetAll;

  function bind(id, evt, fn) {
    var node = g(id);
    if (node) { node.addEventListener(evt, fn); }
  }

  bind("kw-system", "change", onSystemChange);
  bind("kw-voltage-type", "change", calculate);
  bind("kw-power", "input", calculate);
  bind("kw-voltage", "input", calculate);
  bind("kw-pf", "input", calculate);

  updateFields();
  calculate();
})();
</script>
<script>
window.MathJax = window.MathJax || { tex: { inlineMath: [["\\(", "\\)"]], displayMath: [["\\[", "\\]"]] }, options: { skipHtmlTags: ["script", "noscript", "style", "textarea", "pre", "code"] } };
</script>
<script async="async" src="https://cdn.jsdelivr.net/npm/mathjax@3/es5/tex-chtml.js"></script>
<p>The post <a href="https://howelectrical.com/kw-to-amps-calculator/">kW to Amps Calculator – DC, Single Phase &#038; Three Phase</a> appeared first on <a href="https://howelectrical.com">Electrical and Electronics Blog</a>.</p>
]]></content:encoded>

					<wfw:commentRss>https://howelectrical.com/kw-to-amps-calculator/feed/</wfw:commentRss>
			<slash:comments>0</slash:comments>


			</item>
		<item>
		<title>Step Down Transformer: Working Principle, Diagram, Formula &#038; Calculator</title>
		<link>https://howelectrical.com/step-down-transformer/</link>
					<comments>https://howelectrical.com/step-down-transformer/#respond</comments>

		<dc:creator><![CDATA[admin]]></dc:creator>
		<pubDate>Tue, 10 Nov 2026 10:18:35 +0000</pubDate>
				<category><![CDATA[Basic Electrical]]></category>
		<guid isPermaLink="false">https://howelectrical.com/?p=5035</guid>

					<description><![CDATA[<p>Learn how a step-down transformer works, including its construction, working principle, voltage and current ratios, EMF equation, AC voltage waveforms, losses, efficiency, applications and interactive calculator. Understand how a transformer reduces AC voltage while maintaining the same frequency.</p>
<p>The post <a href="https://howelectrical.com/step-down-transformer/">Step Down Transformer: Working Principle, Diagram, Formula &#038; Calculator</a> appeared first on <a href="https://howelectrical.com">Electrical and Electronics Blog</a>.</p>
]]></description>
										<content:encoded><![CDATA[
<meta charset="UTF-8">
<meta name="viewport" content="width=device-width, initial-scale=1">

<meta name="description" content="Step-down transformer explained with construction, working principle, turns ratio, EMF equations, losses, efficiency, animated diagram, waveforms and interactive calculator.">

<title>Step-Down Transformer: Working Principle, Equations, Diagram &#038; Calculator</title>

<script>
window.MathJax = {
  tex: {
    inlineMath: [['\\(', '\\)'], ['$', '$']],
    displayMath: [['\\[', '\\]'], ['$$', '$$']]
  },
  options: {
    skipHtmlTags: ['script','noscript','style','textarea','pre','code']
  }
};
</script>

<script defer src="https://cdn.jsdelivr.net/npm/mathjax@3/es5/tex-mml-chtml.js"></script>

<style>
#sd-transformer-article{
  --navy:#174e7b;
  --blue:#1769aa;
  --orange:#e87518;
  --ink:#263746;
  --muted:#5d7184;
  --line:#d7e5f1;
  --pale:#f3f9ff;
  color:var(--ink);
  font:16px/1.75 Arial,Helvetica,sans-serif;
  width:100%;
  margin:0 auto;
}

#sd-transformer-article *{
  box-sizing:border-box;
}

#sd-transformer-article .sd-wrap{
  max-width:980px;
  margin:auto;
  padding:18px;
}

#sd-transformer-article h1,
#sd-transformer-article h2,
#sd-transformer-article h3{
  color:var(--navy);
  line-height:1.35;
}

#sd-transformer-article h1{
  font-size:clamp(27px,4vw,38px);
  margin:8px 0 15px;
}

#sd-transformer-article h2{
  font-size:clamp(21px,3vw,27px);
  margin:35px 0 14px;
  padding-bottom:9px;
  border-bottom:2px solid var(--line);
}

#sd-transformer-article h3{
  font-size:19px;
  margin:22px 0 10px;
}

#sd-transformer-article p{
  margin:12px 0;
}

#sd-transformer-article ul,
#sd-transformer-article ol{
  padding-left:25px;
}

#sd-transformer-article li{
  margin:7px 0;
}

#sd-transformer-article .sd-intro{
  font-size:17px;
  color:#40576b;
}

#sd-transformer-article .sd-callout{
  background:#eef7ff;
  border-left:4px solid var(--blue);
  padding:15px 18px;
  border-radius:9px;
  margin:20px 0;
}

#sd-transformer-article .sd-equation{
  overflow-x:auto;
  background:#f7fbff;
  border:1px solid var(--line);
  padding:15px;
  border-radius:10px;
  margin:15px 0;
  text-align:center;
}

#sd-transformer-article table{
  width:100%;
  border-collapse:collapse;
  margin:18px 0;
  font-size:14px;
}

#sd-transformer-article th,
#sd-transformer-article td{
  border:1px solid #d9e4ee;
  padding:11px;
  text-align:left;
  vertical-align:top;
}

#sd-transformer-article th{
  background:#eaf4fc;
  color:#174e7b;
}

#sd-transformer-article tr:nth-child(even) td{
  background:#fbfdff;
}

/* Transformer diagram */

#sd-transformer-article .sd-diagram,
#sd-transformer-article .sd-waveform{
  background:linear-gradient(180deg,#f8fcff,#edf6ff);
  border:1px solid #cbdff1;
  border-radius:15px;
  padding:16px;
  margin:22px 0;
  overflow:hidden;
}

#sd-transformer-article .sd-diagram-title,
#sd-transformer-article .sd-wave-title{
  text-align:center;
  font-weight:800;
  color:var(--navy);
  margin:0 0 12px;
}

#sd-transformer-article .sd-svg,
#sd-transformer-article .sd-wave-svg{
  display:block;
  width:100%;
  height:auto;
}

#sd-transformer-article .sd-flux{
  stroke-dasharray:10 8;
  animation:sdFlux 1.3s linear infinite;
}

@keyframes sdFlux{
  to{stroke-dashoffset:-36}
}

#sd-transformer-article .sd-core{
  filter:drop-shadow(0 3px 5px #7892a8);
}

#sd-transformer-article .sd-note{
  font-size:13px;
  color:var(--muted);
  text-align:center;
  margin:10px 0 0;
}

#sd-transformer-article .sd-wave-legend{
  display:flex;
  justify-content:center;
  gap:22px;
  flex-wrap:wrap;
  font-size:14px;
  font-weight:700;
  margin-top:12px;
}

#sd-transformer-article .sd-wave-key{
  display:inline-flex;
  align-items:center;
  gap:7px;
}

#sd-transformer-article .sd-wave-dot{
  width:18px;
  height:4px;
  border-radius:4px;
  display:inline-block;
}

/* Calculator */

#sd-transformer-article .sd-calc{
  background:linear-gradient(135deg,#f1f8ff,#fff);
  border:1px solid #cbdff1;
  border-radius:16px;
  padding:22px;
  margin:25px 0;
  box-shadow:0 5px 18px rgba(23,78,123,.07);
}

#sd-transformer-article .sd-calc-grid{
  display:grid;
  grid-template-columns:repeat(2,minmax(0,1fr));
  gap:16px;
}

#sd-transformer-article .sd-field label{
  display:block;
  font-weight:700;
  font-size:14px;
  color:#174e7b;
  margin-bottom:7px;
}

#sd-transformer-article .sd-field input{
  width:100%;
  height:48px;
  padding:10px 13px;
  border:1px solid #b9cddd;
  border-radius:9px;
  background:#fff;
  font-size:16px;
  color:#263746;
  outline:none;
}

#sd-transformer-article .sd-field input:focus{
  border-color:#1769aa;
  box-shadow:0 0 0 3px rgba(23,105,170,.12);
}

#sd-transformer-article .sd-calc-buttons{
  display:flex;
  flex-wrap:wrap;
  gap:10px;
  margin-top:20px;
}

#sd-transformer-article .sd-button,
#sd-transformer-article .sd-reset{
  border:0;
  border-radius:9px;
  padding:13px 22px;
  font-size:15px;
  font-weight:700;
  cursor:pointer;
}

#sd-transformer-article .sd-button{
  background:#1769aa;
  color:#fff;
}

#sd-transformer-article .sd-button:hover{
  background:#104f83;
}

#sd-transformer-article .sd-reset{
  background:#e7edf3;
  color:#263746;
}

#sd-transformer-article .sd-result{
  display:none;
  margin-top:22px;
  padding:18px;
  background:#fff;
  border:1px solid #bdd8ec;
  border-radius:12px;
}

#sd-transformer-article .sd-result h3{
  margin:0 0 15px;
  font-size:19px;
}

#sd-transformer-article .sd-result-grid{
  display:grid;
  grid-template-columns:repeat(2,minmax(0,1fr));
  gap:12px;
}

#sd-transformer-article .sd-result-item{
  background:#f0f7ff;
  border:1px solid #dcebf7;
  padding:13px;
  border-radius:9px;
  min-width:0;
}

#sd-transformer-article .sd-result-item span{
  display:block;
  color:#526b80;
  font-size:13px;
  margin-bottom:5px;
}

#sd-transformer-article .sd-result-item strong{
  display:block;
  color:#145b96;
  font-size:19px;
  overflow-wrap:anywhere;
}

#sd-transformer-article .sd-error{
  color:#c62828;
  font-size:14px;
  font-weight:600;
  margin-top:12px;
}

#sd-transformer-article .sd-small{
  font-size:13px;
  color:#647789;
  margin-top:15px;
}

/* FAQ */

#sd-transformer-article .sd-faq details{
  border:1px solid var(--line);
  border-radius:9px;
  padding:13px 15px;
  margin:10px 0;
  background:#fff;
}

#sd-transformer-article .sd-faq summary{
  font-weight:700;
  color:var(--navy);
  cursor:pointer;
}

#sd-transformer-article .sd-faq details p{
  margin-bottom:3px;
}

@media(max-width:640px){

  #sd-transformer-article .sd-wrap{
    padding:10px;
  }

  #sd-transformer-article .sd-calc{
    padding:14px;
  }

  #sd-transformer-article .sd-calc-grid,
  #sd-transformer-article .sd-result-grid{
    grid-template-columns:1fr;
  }

  #sd-transformer-article .sd-diagram,
  #sd-transformer-article .sd-waveform{
    padding:8px;
  }

  #sd-transformer-article table{
    font-size:12px;
  }

  #sd-transformer-article th,
  #sd-transformer-article td{
    padding:7px;
  }

  #sd-transformer-article .sd-calc-buttons button{
    flex:1;
  }

  #sd-transformer-article .sd-wave-legend{
    gap:10px;
    font-size:12px;
  }
}

@media(prefers-reduced-motion:reduce){
  #sd-transformer-article .sd-flux{
    animation:none;
  }
}
</style>

<article id="sd-transformer-article">

<div class="sd-wrap">

<header>

<h1>Step-Down Transformer: Working Principle, Construction, Equations and Applications</h1>

<p class="sd-intro">
A step-down transformer is an electrical device that reduces alternating-current (AC) voltage from a higher level to a lower level while transferring electrical energy from one circuit to another through electromagnetic induction. It is widely used in power distribution systems, adapters, chargers, industrial control circuits and electronic equipment. This guide explains its construction, working principle, mathematical equations, practical performance and safety considerations with diagrams, waveforms and an interactive calculator.
</p>

</header>

<h2>1. What Is a Step-Down Transformer?</h2>

<p>
A step-down transformer converts a high AC voltage at its primary winding into a lower AC voltage at its secondary winding. The primary winding has more turns than the secondary winding. For an ideal transformer, the voltage ratio is equal to the turns ratio, so reducing the number of secondary turns reduces the induced secondary voltage.
</p>

<p>
For example, a transformer designed for 230 V input and 12 V output has a nominal voltage ratio of approximately 19.17:1. The output is still alternating voltage. A transformer alone does not convert AC into DC. A rectifier and filter are required when a DC supply is needed.
</p>

<div class="sd-callout">
<strong>Key relationship:</strong>
In a step-down transformer, \(N_p>N_s\) and under ideal conditions \(V_p>V_s\). Here, \(N\) represents winding turns and \(V\) represents RMS voltage.
</div>

<h2>2. Construction and Main Parts</h2>

<p>
A conventional transformer contains two electrically separate windings wound around a common magnetic core. The core provides a low-reluctance path for alternating magnetic flux, allowing energy to transfer magnetically from the primary circuit to the secondary circuit. The windings are insulated from one another and from the core.
</p>

<table>
<thead>
<tr>
<th>Part</th>
<th>Function</th>
<th>Engineering Note</th>
</tr>
</thead>
<tbody>
<tr>
<td>Primary winding</td>
<td>Receives the AC input supply.</td>
<td>Normally has more turns in a step-down design.</td>
</tr>
<tr>
<td>Secondary winding</td>
<td>Supplies reduced AC voltage to the load.</td>
<td>Normally has fewer turns and may use thicker conductor for higher current.</td>
</tr>
<tr>
<td>Laminated magnetic core</td>
<td>Provides a path for mutual magnetic flux.</td>
<td>Thin insulated laminations reduce eddy-current losses.</td>
</tr>
<tr>
<td>Insulation system</td>
<td>Separates turns, windings and core electrically.</td>
<td>Must suit voltage, temperature and insulation class.</td>
</tr>
<tr>
<td>Tank and cooling system</td>
<td>Provides protection and removes heat in larger units.</td>
<td>Small dry-type transformers may use air cooling.</td>
</tr>
</tbody>
</table>

<p>
Transformer cores are commonly made from laminated silicon steel for power-frequency applications. The laminations are insulated from each other to interrupt circulating eddy-current paths. Ferrite materials are common in many high-frequency transformers. Core geometry may be core-type or shell-type, depending on the design and application.
</p>

<h2>3. Animated Working Diagram of a Step-Down Transformer</h2>

<div class="sd-diagram">

<p class="sd-diagram-title">Step-Down Transformer Construction and Working</p>

<svg class="sd-svg" viewBox="0 0 1000 510" role="img" aria-label="Step-down transformer showing primary winding, secondary winding, laminated magnetic core, magnetic flux and load">

<defs>

<linearGradient id="sdMetal" x1="0" y1="0" x2="1" y2="1">
<stop offset="0" stop-color="#758b9e"/>
<stop offset=".5" stop-color="#e4edf4"/>
<stop offset="1" stop-color="#657b90"/>
</linearGradient>

<marker id="sdArrow" markerWidth="10" markerHeight="10" refX="7" refY="3" orient="auto">
<path d="M0 0 L7 3 L0 6" fill="none" stroke="#1683cf" stroke-width="1.5"/>
</marker>

<marker id="sdLabelArrow" markerWidth="10" markerHeight="10" refX="8" refY="4" orient="auto">
<path d="M0 0 L8 4 L0 8 Z" fill="#263f55"/>
</marker>

</defs>

<text x="500" y="34" text-anchor="middle" font-size="20" font-weight="800" fill="#174e7b">LAMINATED MAGNETIC CORE</text>

<path d="M500 42 V65" stroke="#263f55" stroke-width="2.5" marker-end="url(#sdLabelArrow)"/>

<g class="sd-core">
<path d="M350 65 H650 V420 H350 Z M430 155 H570 V330 H430 Z"
fill="url(#sdMetal)" fill-rule="evenodd" stroke="#536d83" stroke-width="4"/>

<path d="M362 82 H638 M362 96 H638 M362 110 H638 M362 375 H638 M362 390 H638 M362 405 H638"
stroke="#fff" stroke-width="2" opacity=".7"/>
</g>

<!-- Primary winding -->

<g fill="none" stroke="#e87518" stroke-width="8" stroke-linecap="round">
<path d="M350 125
C270 125 270 143 350 143
C270 143 270 161 350 161
C270 161 270 179 350 179
C270 179 270 197 350 197
C270 197 270 215 350 215
C270 215 270 233 350 233
C270 233 270 251 350 251
C270 251 270 269 350 269
C270 269 270 287 350 287
C270 287 270 305 350 305
C270 305 270 323 350 323"/>
</g>

<text x="35" y="135" font-size="24" font-weight="800" fill="#9b4c0b">PRIMARY</text>
<text x="35" y="164" font-size="18" fill="#704a2a">More turns (Np)</text>
<text x="35" y="220" font-size="17" font-weight="800" fill="#9b4c0b">AC INPUT SOURCE</text>

<path d="M350 125 H230 V238 M230 302 V323 H350" fill="none" stroke="#e87518" stroke-width="3.5"/>

<circle cx="230" cy="270" r="32" fill="#fff7ed" stroke="#e87518" stroke-width="3.5"/>

<path d="M206 270 Q218 248 230 270 T254 270" fill="none" stroke="#e87518" stroke-width="3"/>

<text x="35" y="365" font-size="16" fill="#704a2a">Higher AC input voltage</text>

<!-- Secondary winding -->

<g fill="none" stroke="#1769aa" stroke-width="8" stroke-linecap="round">
<path d="M650 170
C730 170 730 192 650 192
C730 192 730 214 650 214
C730 214 730 236 650 236
C730 236 730 258 650 258
C730 258 730 280 650 280
C730 280 730 302 650 302"/>
</g>

<text x="745" y="105" font-size="23" font-weight="800" fill="#145b96">SECONDARY</text>
<text x="745" y="132" font-size="18" fill="#315d80">Fewer turns (Ns)</text>

<path d="M650 170 H870 V205 M870 295 V302 H650" fill="none" stroke="#1769aa" stroke-width="3.5"/>

<rect x="850" y="205" width="40" height="90" rx="5" fill="#eff7ff" stroke="#1769aa" stroke-width="3.5"/>

<path d="M857 216 L883 231 L857 246 L883 261 L857 276 L883 286" fill="none" stroke="#1769aa" stroke-width="2.5"/>

<text x="905" y="235" font-size="18" font-weight="800" fill="#145b96">LOAD</text>
<text x="905" y="260" font-size="16" fill="#315d80">RL</text>
<text x="735" y="365" font-size="16" fill="#315d80">Lower AC output voltage</text>

<!-- Magnetic flux -->

<path class="sd-flux" d="M405 135 H595 V355 H405 V135"
fill="none" stroke="#1683cf" stroke-width="5"/>

<path class="sd-flux" d="M420 150 H580 V340 H420 V150"
fill="none" stroke="#50a9e8" stroke-width="3"/>

<path d="M465 135 H505 M595 215 V255 M535 355 H495 M405 275 V235"
fill="none" stroke="#1683cf" stroke-width="3.5" marker-end="url(#sdArrow)"/>

<text x="500" y="248" text-anchor="middle" font-size="14" font-weight="700" fill="#174e7b">Flux (Φ)</text>

<rect x="380" y="445" width="240" height="42" rx="10" fill="#e6f3ff" stroke="#b8d8f0"/>

<text x="500" y="472" text-anchor="middle" font-size="19" font-weight="800" fill="#174e7b">Np > Ns ⇒ Vp > Vs</text>

</svg>

<p class="sd-note">
Conceptual illustration: the dashed magnetic-flux path links both windings. Its physical direction reverses every half-cycle of the AC supply.
</p>

</div>

<h2>4. Step-Down Transformer Voltage Waveforms</h2>

<p>
The waveform below compares the primary and secondary AC voltages. The secondary waveform has a lower peak and RMS value, but both waveforms have the same frequency because a transformer changes voltage level, not frequency. The two waveforms are shown in phase for an illustrative winding-polarity connection.
</p>

<div class="sd-waveform">

<p class="sd-wave-title">Primary and Secondary AC Voltage Waveforms</p>

<svg class="sd-wave-svg" viewBox="0 0 900 390" role="img" aria-label="Primary high voltage and secondary low voltage sine waveforms">

<rect x="68" y="28" width="790" height="290" rx="12" fill="#fff" stroke="#d7e5f1"/>

<g stroke="#e5edf4" stroke-width="1">
<path d="M90 75 H840 M90 130 H840 M90 185 H840 M90 240 H840 M90 295 H840"/>
<path d="M180 45 V300 M270 45 V300 M360 45 V300 M450 45 V300 M540 45 V300 M630 45 V300 M720 45 V300 M810 45 V300"/>
</g>

<path d="M90 185 H850" stroke="#526b80" stroke-width="2"/>
<path d="M90 45 V305" stroke="#526b80" stroke-width="2"/>

<text x="72" y="39" font-size="15" font-weight="700" fill="#526b80">Voltage</text>
<text x="850" y="208" font-size="15" font-weight="700" fill="#526b80">Time</text>
<text x="73" y="190" font-size="13" fill="#526b80" text-anchor="end">0</text>

<path d="M90 185
C120 65 150 65 180 185
S240 305 270 185
S330 65 360 185
S420 305 450 185
S510 65 540 185
S600 305 630 185
S690 65 720 185
S780 305 810 185"
fill="none" stroke="#e87518" stroke-width="5" stroke-linecap="round"/>

<path d="M90 185
C120 145 150 145 180 185
S240 225 270 185
S330 145 360 185
S420 225 450 185
S510 145 540 185
S600 225 630 185
S690 145 720 185
S780 225 810 185"
fill="none" stroke="#1769aa" stroke-width="5" stroke-linecap="round"/>

<text x="105" y="57" font-size="17" font-weight="800" fill="#b85b0c">Primary Voltage (Vp)</text>
<text x="105" y="252" font-size="17" font-weight="800" fill="#145b96">Secondary Voltage (Vs)</text>

<text x="450" y="350" text-anchor="middle" font-size="17" font-weight="800" fill="#174e7b">
Same Frequency • Lower Secondary Voltage
</text>

</svg>

<div class="sd-wave-legend">
<span class="sd-wave-key">
<span class="sd-wave-dot" style="background:#e87518"></span>
Primary: Higher Voltage
</span>

<span class="sd-wave-key">
<span class="sd-wave-dot" style="background:#1769aa"></span>
Secondary: Lower Voltage
</span>
</div>

<p class="sd-note">
Illustrative waveforms, not measured values. Voltage amplitude is reduced according to the turns ratio; frequency remains unchanged.
</p>

</div>

<h2>5. Working Principle: Mutual Induction</h2>

<p>
A step-down transformer operates on Faraday&#8217;s law of electromagnetic induction and mutual induction. When an AC voltage is applied to the primary winding, a small magnetising current flows. This current establishes an alternating magnetic flux in the core. Because the secondary winding is linked by the same mutual flux, an EMF is induced in it.
</p>

<p>
When a load is connected to the secondary, the induced voltage drives current through the load. The secondary current produces a magnetic effect that opposes the change that caused it, in accordance with Lenz&#8217;s law. The primary then draws additional current from the source so that the core flux remains approximately set by the applied voltage and frequency.
</p>

<p>
The transformer transfers energy through a changing magnetic field, not through a direct electrical connection between primary and secondary. In a properly isolated transformer, the two windings remain electrically separated.
</p>

<h2>6. Turns Ratio and Voltage Ratio</h2>

<p>
For an ideal transformer operating with sinusoidal AC, the RMS voltage ratio is equal to the turns ratio:
</p>

<div class="sd-equation">
\[
\frac{V_p}{V_s}=\frac{N_p}{N_s}
\]
</div>

<p>Rearranging gives the secondary voltage:</p>

<div class="sd-equation">
\[
V_s=V_p\left(\frac{N_s}{N_p}\right)
\]
</div>

<p>
For a step-down transformer, \(N_s/N_p\) is less than one, so the secondary voltage is lower than the primary voltage. Consider a 230 V transformer with 1,000 primary turns and 100 secondary turns:
</p>

<div class="sd-equation">
\[
V_s=230\times\frac{100}{1000}=23\text{ V}
\]
</div>

<p>
This is an ideal turns-ratio calculation. A real transformer&#8217;s terminal voltage changes with winding resistance, leakage reactance, load current and power factor.
</p>

<h2>7. EMF Equation of a Transformer</h2>

<p>
For sinusoidal core flux, the RMS induced EMF in a winding is given by the transformer EMF equation:
</p>

<div class="sd-equation">
\[
E=4.44fN\Phi_m
\]
</div>

<p>
Where \(E\) is RMS induced EMF in volts, \(f\) is supply frequency in hertz, \(N\) is the number of turns, and \(\Phi_m\) is maximum core flux in webers.
</p>

<p>For primary and secondary windings:</p>

<div class="sd-equation">
\[
E_p=4.44fN_p\Phi_m
\]

\[
E_s=4.44fN_s\Phi_m
\]
</div>

<p>
Dividing the equations produces \(E_p/E_s=N_p/N_s\). In a practical transformer, the applied primary voltage is close to the induced primary EMF, with a small difference due to winding impedance drops.
</p>

<h2>8. Current Ratio and Power Relationship</h2>

<p>
An ideal transformer conserves power, ignoring losses. Therefore, input apparent power equals output apparent power:
</p>

<div class="sd-equation">
\[
V_p I_p=V_s I_s
\]
</div>

<p>
Combining this with the voltage ratio gives the inverse current relationship:
</p>

<div class="sd-equation">
\[
\frac{I_s}{I_p}=\frac{N_p}{N_s}=\frac{V_p}{V_s}
\]
</div>

<p>
Thus, a step-down transformer can provide a higher secondary current than primary current for the same ideal power transfer. For example, if voltage is reduced by a factor of 10, the ideal current increases by a factor of 10. Actual current is limited by the transformer&#8217;s VA rating, winding temperature, cooling and protection.
</p>

<table>
<thead>
<tr>
<th>Quantity</th>
<th>Ideal Relationship</th>
<th>Meaning</th>
</tr>
</thead>
<tbody>
<tr>
<td>Turns</td>
<td>\(N_p>N_s\)</td>
<td>Primary has more turns.</td>
</tr>
<tr>
<td>Voltage</td>
<td>\(V_p>V_s\)</td>
<td>Secondary voltage is lower.</td>
</tr>
<tr>
<td>Current</td>
<td>\(I_s>I_p\)</td>
<td>Secondary current is higher for equal transferred power.</td>
</tr>
<tr>
<td>Power</td>
<td>\(V_pI_p\approx V_sI_s\)</td>
<td>Power is approximately conserved in an ideal unit.</td>
</tr>
</tbody>
</table>

<h2>9. Worked Numerical Example</h2>

<p>
<strong>Problem:</strong> A single-phase step-down transformer has a 240 V primary, 800 primary turns and 80 secondary turns. Find the ideal secondary voltage. If the secondary load draws 5 A, estimate the ideal primary current.
</p>

<p><strong>Step 1 — Secondary voltage:</strong></p>

<div class="sd-equation">
\[
V_s=240\times\frac{80}{800}=24\text{ V}
\]
</div>

<p><strong>Step 2 — Ideal primary current:</strong></p>

<div class="sd-equation">
\[
I_p=\frac{V_sI_s}{V_p}
=\frac{24\times5}{240}=0.5\text{ A}
\]
</div>

<p>
<strong>Answer:</strong> The ideal secondary voltage is 24 V RMS and the ideal primary current is 0.5 A. The output apparent power is \(24\times5=120\text{ VA}\). A real design must include losses, regulation margin and a suitable VA rating.
</p>

<h2>10. Transformer Losses</h2>

<p>
No practical transformer is perfectly efficient. Its main losses are core losses and copper losses. Core loss consists mainly of hysteresis loss and eddy-current loss. Hysteresis loss is associated with repeated magnetisation of the core material. Eddy-current loss is caused by circulating currents induced in the core; thin insulated laminations help reduce it.
</p>

<p>
Copper loss is the resistive heating in the primary and secondary windings. It varies approximately with the square of winding current:
</p>

<div class="sd-equation">
\[
P_{cu}=I_p^2R_p+I_s^2R_s
\]
</div>

<p>
Other losses can include stray load losses, dielectric losses and losses in structural components. Good design balances core material, conductor size, insulation, cooling and cost.
</p>

<h2>11. Efficiency and Voltage Regulation</h2>

<p>
Transformer efficiency is the ratio of useful output power to input power:
</p>

<div class="sd-equation">
\[
\eta=\frac{P_{out}}{P_{in}}\times100\%
\]
</div>

<p>For a transformer, a simplified efficiency expression is:</p>

<div class="sd-equation">
\[
\eta=
\frac{P_{out}}
{P_{out}+P_{core}+P_{cu}}\times100\%
\]
</div>

<p>
Voltage regulation describes the change in secondary terminal voltage between no-load and a specified load, with primary voltage held constant:
</p>

<div class="sd-equation">
\[
\%VR=\frac{V_{NL}-V_{FL}}{V_{FL}}\times100\%
\]
</div>

<p>
Here, \(V_{NL}\) is no-load secondary voltage and \(V_{FL}\) is full-load secondary voltage. Regulation depends on winding resistance, leakage reactance and load power factor. Inductive loads can produce a larger voltage drop than unity-power-factor loads.
</p>

<h2>12. Equivalent Circuit and Impedance Transformation</h2>

<p>
A practical transformer can be represented by an equivalent circuit containing winding resistances, leakage reactances, a core-loss resistance and a magnetising reactance. These elements model voltage drops, copper loss, core loss and magnetising current. The simplified ideal transformer also reflects an impedance from one side to the other.
</p>

<div class="sd-equation">
\[
Z_p=\left(\frac{N_p}{N_s}\right)^2Z_s
\]
</div>

<p>
This relation is useful when analysing a load connected to the secondary as seen from the primary. The square of the turns ratio is important: impedance does not transform by the turns ratio alone.
</p>

<h2>13. Types of Step-Down Transformers</h2>

<table>
<thead>
<tr>
<th>Type</th>
<th>Typical Use</th>
<th>Key Feature</th>
</tr>
</thead>
<tbody>
<tr>
<td>Power distribution transformer</td>
<td>Reducing distribution voltage for local supply.</td>
<td>Designed for continuous service and high efficiency.</td>
</tr>
<tr>
<td>Control transformer</td>
<td>Industrial control panels and contactor circuits.</td>
<td>Provides a suitable control voltage.</td>
</tr>
<tr>
<td>Isolation step-down transformer</td>
<td>Equipment requiring galvanic isolation and lower voltage.</td>
<td>Primary and secondary are electrically isolated.</td>
</tr>
<tr>
<td>Electronic high-frequency transformer</td>
<td>Switch-mode power supplies.</td>
<td>Uses a high-frequency magnetic core, often ferrite.</td>
</tr>
<tr>
<td>Instrument transformer</td>
<td>Measurement and protection systems.</td>
<td>Voltage transformers scale voltage for instruments and relays.</td>
</tr>
</tbody>
</table>

<h2>14. Applications of Step-Down Transformers</h2>

<p>
Step-down transformers are used throughout electrical infrastructure and electronics. Distribution transformers reduce medium-voltage network levels to utilisation voltages. Low-voltage transformers supply control circuits in industrial machinery. Electronic power supplies use transformer stages to provide isolated voltage conversion. Doorbells, laboratory supplies and some audio equipment also use step-down transformers.
</p>

<p>
In a typical power distribution network, voltage is stepped up at a generating station for efficient long-distance transmission and stepped down at substations and distribution points before reaching consumers. This arrangement reduces transmission current for a given power level and helps make local supply practical.
</p>

<h2>15. Advantages and Limitations</h2>

<h3>Advantages</h3>

<ul>
<li>Reduces AC voltage to a level suitable for equipment and distribution.</li>
<li>Can provide electrical isolation between input and output circuits.</li>
<li>Can deliver higher current at lower voltage within its VA rating.</li>
<li>Has no moving parts and can provide long service life with correct maintenance.</li>
<li>Can achieve high efficiency when properly designed and operated.</li>
</ul>

<h3>Limitations</h3>

<ul>
<li>A conventional transformer requires AC or changing magnetic flux; it does not directly transform steady DC.</li>
<li>It has core, copper and stray losses.</li>
<li>It can be heavy and bulky at low frequencies.</li>
<li>Output voltage varies with load and power factor.</li>
<li>Incorrect frequency, overvoltage or overload can cause overheating and insulation failure.</li>
</ul>

<h2>16. Safety and Selection Considerations</h2>

<p>
Choose a transformer using its rated primary voltage, secondary voltage, frequency, VA rating, insulation class, duty cycle and cooling method. Check whether the output must be isolated, whether the load is resistive or inductive, and whether inrush current is significant. Provide correctly rated fuses or circuit breakers on appropriate sides, protective earthing for exposed conductive parts, suitable enclosure protection and adequate ventilation.
</p>

<p>
Never assume that a low-voltage secondary makes the primary side safe. The primary may be connected to lethal mains voltage. Installation, testing and repair should be performed by a qualified person using suitable instruments and isolation procedures. Do not touch exposed terminals or work on an energised transformer.
</p>

<h2>17. Step-Down Transformer Formula Summary</h2>

<table>
<thead>
<tr>
<th>Formula</th>
<th>Application</th>
</tr>
</thead>
<tbody>
<tr>
<td>\(\frac{V_p}{V_s}=\frac{N_p}{N_s}\)</td>
<td>Ideal voltage and turns ratio.</td>
</tr>
<tr>
<td>\(V_s=V_p\frac{N_s}{N_p}\)</td>
<td>Calculate secondary voltage.</td>
</tr>
<tr>
<td>\(E=4.44fN\Phi_m\)</td>
<td>RMS induced EMF for sinusoidal flux.</td>
</tr>
<tr>
<td>\(V_pI_p\approx V_sI_s\)</td>
<td>Ideal apparent-power relationship.</td>
</tr>
<tr>
<td>\(\frac{I_s}{I_p}=\frac{N_p}{N_s}\)</td>
<td>Ideal current ratio.</td>
</tr>
<tr>
<td>\(P_{cu}=I_p^2R_p+I_s^2R_s\)</td>
<td>Winding copper loss.</td>
</tr>
<tr>
<td>\(\eta=\frac{P_{out}}{P_{in}}\times100\%\)</td>
<td>Efficiency.</td>
</tr>
<tr>
<td>\(\%VR=\frac{V_{NL}-V_{FL}}{V_{FL}}\times100\%\)</td>
<td>Voltage regulation.</td>
</tr>
<tr>
<td>\(Z_p=(N_p/N_s)^2Z_s\)</td>
<td>Reflect secondary impedance to primary.</td>
</tr>
</tbody>
</table>

<h2>18. Interactive Step-Down Transformer Calculator</h2>

<p>
Enter the primary voltage and winding turns to estimate the ideal secondary voltage. Enter the secondary load current to estimate ideal primary current and apparent power.
</p>

<div class="sd-calc" id="sdCalculator">

<div class="sd-calc-grid">

<div class="sd-field">
<label for="sdVp">Primary Voltage (Vp) — Volts</label>
<input type="number" id="sdVp" value="230" min="0.001" step="any">
</div>

<div class="sd-field">
<label for="sdNp">Primary Turns (Np)</label>
<input type="number" id="sdNp" value="1000" min="1" step="1">
</div>

<div class="sd-field">
<label for="sdNs">Secondary Turns (Ns)</label>
<input type="number" id="sdNs" value="100" min="1" step="1">
</div>

<div class="sd-field">
<label for="sdIs">Secondary Current (Is) — Amps</label>
<input type="number" id="sdIs" value="2" min="0" step="any">
</div>

</div>

<div class="sd-calc-buttons">

<button type="button" id="sdCalculate" class="sd-button">
Calculate
</button>

<button type="button" id="sdReset" class="sd-reset">
Reset
</button>

</div>

<div id="sdError" class="sd-error" role="alert"></div>

<div id="sdResult" class="sd-result" aria-live="polite">

<h3>Transformer Calculation Results</h3>

<div class="sd-result-grid">

<div class="sd-result-item">
<span>Secondary Voltage</span>
<strong id="sdOutVs">—</strong>
</div>

<div class="sd-result-item">
<span>Turns Ratio</span>
<strong id="sdOutRatio">—</strong>
</div>

<div class="sd-result-item">
<span>Primary Current</span>
<strong id="sdOutIp">—</strong>
</div>

<div class="sd-result-item">
<span>Secondary Current</span>
<strong id="sdOutIs">—</strong>
</div>

<div class="sd-result-item">
<span>Output Apparent Power</span>
<strong id="sdOutVA">—</strong>
</div>

<div class="sd-result-item">
<span>Transformer Type</span>
<strong>Step-Down</strong>
</div>

</div>

<p class="sd-small">
Results are ideal theoretical estimates. Actual transformer performance depends on winding resistance, losses, load, temperature and rated VA capacity.
</p>

</div>
</div>

<h2>19. Frequently Asked Questions</h2>

<div class="sd-faq">

<details>
<summary>Does a step-down transformer convert AC into DC?</summary>
<p>No. It changes the voltage level of AC. A rectifier and filter circuit are needed to obtain DC from the transformer output.</p>
</details>

<details>
<summary>Why does the secondary winding have fewer turns?</summary>
<p>The induced voltage is proportional to the number of turns linked by the changing core flux. Fewer secondary turns therefore produce a lower voltage.</p>
</details>

<details>
<summary>Does current increase when voltage decreases?</summary>
<p>For approximately conserved power, yes. In an ideal transformer, secondary current rises in inverse proportion to secondary voltage. The real current is limited by the transformer&#8217;s rating and load.</p>
</details>

<details>
<summary>Can a transformer operate on DC?</summary>
<p>A conventional transformer cannot continuously transfer power from a steady DC supply. After the switching transient, steady flux does not induce a sustained secondary EMF, and the primary may draw excessive current and overheat.</p>
</details>

<details>
<summary>What is the difference between a step-up and step-down transformer?</summary>
<p>A step-up transformer has more secondary turns and raises voltage. A step-down transformer has fewer secondary turns and lowers voltage. Their ideal current ratios change in the opposite direction.</p>
</details>

<details>
<summary>What is the EMF equation of a transformer?</summary>
<p>The RMS EMF equation for sinusoidal core flux is E = 4.44 f N Φm, where f is frequency, N is the number of turns and Φm is maximum magnetic flux.</p>
</details>

<details>
<summary>What is the turns ratio of a step-down transformer?</summary>
<p>The turns ratio is the ratio of primary turns to secondary turns. In a step-down transformer, the primary turns are greater than the secondary turns.</p>
</details>

<details>
<summary>What are the main losses in a transformer?</summary>
<p>The main losses are hysteresis loss, eddy-current loss and copper loss. Stray and dielectric losses may also occur.</p>
</details>

</div>

<h2>Conclusion</h2>

<p>
A step-down transformer reduces AC voltage by using a secondary winding with fewer turns than the primary winding. Its operation depends on mutual induction, Faraday&#8217;s law and a shared alternating magnetic flux in the core. The turns-ratio equation provides the basic voltage calculation, while current ratio, EMF, losses, efficiency and voltage regulation are essential for practical engineering analysis. Correct rating, insulation, protection and installation are necessary for safe and reliable operation.
</p>

</div>
</article>

<script>
(function () {
"use strict";

function initStepDownCalculator() {

  const root = document.getElementById("sdCalculator");

  if (!root || root.dataset.initialized === "true") {
    return;
  }

  root.dataset.initialized = "true";

  const get = function(id) {
    return root.querySelector("#" + id);
  };

  const vpInput = get("sdVp");
  const npInput = get("sdNp");
  const nsInput = get("sdNs");
  const isInput = get("sdIs");

  const calculateBtn = get("sdCalculate");
  const resetBtn = get("sdReset");

  const errorBox = get("sdError");
  const resultBox = get("sdResult");

  function format(value) {

    return Number(value).toLocaleString("en-IN", {
      maximumFractionDigits: 3
    });

  }

  function calculate() {

    errorBox.textContent = "";
    resultBox.style.display = "none";

    const vp = Number(vpInput.value);
    const np = Number(npInput.value);
    const ns = Number(nsInput.value);

    const isRaw = isInput.value.trim();

    const secondaryCurrent =
      isRaw === "" ? null : Number(isRaw);

    if (
      vpInput.value.trim() === "" ||
      npInput.value.trim() === "" ||
      nsInput.value.trim() === "" ||
      !Number.isFinite(vp) ||
      !Number.isFinite(np) ||
      !Number.isFinite(ns) ||
      vp <= 0 ||
      np <= 0 ||
      ns <= 0 ||
      !Number.isInteger(np) ||
      !Number.isInteger(ns)
    ) {

      errorBox.textContent =
        "Please enter a valid voltage and positive whole-number turns.";

      return;

    }

    if (ns >= np) {

      errorBox.textContent =
        "For a step-down transformer, secondary turns must be less than primary turns.";

      return;

    }

    if (
      secondaryCurrent !== null &&
      (
        !Number.isFinite(secondaryCurrent) ||
        secondaryCurrent < 0
      )
    ) {

      errorBox.textContent =
        "Please enter a valid secondary current (zero or greater).";

      return;

    }

    // Secondary voltage calculation

    const vs = vp * (ns / np);

    // Turns ratio

    const turnsRatio = np / ns;

    get("sdOutVs").textContent =
      format(vs) + " V RMS";

    get("sdOutRatio").textContent =
      format(turnsRatio) + " : 1";

    // Current and apparent power

    if (secondaryCurrent === null) {

      get("sdOutIp").textContent = "Not entered";
      get("sdOutIs").textContent = "Not entered";
      get("sdOutVA").textContent = "Not calculated";

    } else {

      const primaryCurrent =
        (vs * secondaryCurrent) / vp;

      const apparentPower =
        vs * secondaryCurrent;

      get("sdOutIp").textContent =
        format(primaryCurrent) + " A";

      get("sdOutIs").textContent =
        format(secondaryCurrent) + " A";

      get("sdOutVA").textContent =
        format(apparentPower) + " VA";

    }

    resultBox.style.display = "block";

  }

  function resetCalculator() {

    vpInput.value = "230";
    npInput.value = "1000";
    nsInput.value = "100";
    isInput.value = "2";

    errorBox.textContent = "";

    calculate();

  }

  calculateBtn.addEventListener("click", calculate);

  resetBtn.addEventListener("click", resetCalculator);

  // Automatically calculate default values

  calculate();

}

// WordPress-safe initialization

if (document.readyState === "loading") {

  document.addEventListener(
    "DOMContentLoaded",
    initStepDownCalculator
  );

} else {

  initStepDownCalculator();

}

})();
</script>
<p>The post <a href="https://howelectrical.com/step-down-transformer/">Step Down Transformer: Working Principle, Diagram, Formula &#038; Calculator</a> appeared first on <a href="https://howelectrical.com">Electrical and Electronics Blog</a>.</p>
]]></content:encoded>

					<wfw:commentRss>https://howelectrical.com/step-down-transformer/feed/</wfw:commentRss>
			<slash:comments>0</slash:comments>


			</item>
		<item>
		<title>Step Up Transformer: Working Principle, Diagram, Formula &#038; Uses</title>
		<link>https://howelectrical.com/step-up-transformer/</link>
					<comments>https://howelectrical.com/step-up-transformer/#respond</comments>

		<dc:creator><![CDATA[admin]]></dc:creator>
		<pubDate>Mon, 09 Nov 2026 20:34:19 +0000</pubDate>
				<category><![CDATA[Basic Electrical]]></category>
		<guid isPermaLink="false">https://howelectrical.com/?p=5028</guid>

					<description><![CDATA[<p>Learn about step-up transformers, including their working principle, construction, voltage ratio, EMF equation, applications and interactive calculator.</p>
<p>The post <a href="https://howelectrical.com/step-up-transformer/">Step Up Transformer: Working Principle, Diagram, Formula &amp; Uses</a> appeared first on <a href="https://howelectrical.com">Electrical and Electronics Blog</a>.</p>
]]></description>
										<content:encoded><![CDATA[
<!-- Step-Up Transformer Article | Paste this complete code into a WordPress Custom HTML block -->
<div id="he-stepup-article">
  <style>
    #he-stepup-article{--navy:#12345a;--blue:#1769aa;--cyan:#eaf6ff;--green:#16834a;--orange:#e87518;--ink:#203044;--muted:#5d6b7b;--line:#d9e4ef;max-width:1100px;margin:20px auto;color:var(--ink);font:16px/1.75 system-ui,-apple-system,"Segoe UI",Roboto,Arial,sans-serif}
    #he-stepup-article *{box-sizing:border-box}
    #he-stepup-article .he-hero{background:linear-gradient(130deg,#102e50,#1769aa);color:#fff;padding:30px 26px;border-radius:18px;margin-bottom:22px}
    #he-stepup-article .he-kicker{font-size:12px;letter-spacing:1.5px;text-transform:uppercase;color:#bfe5ff;font-weight:800}
    #he-stepup-article h1{font-size:clamp(28px,5vw,43px);line-height:1.15;margin:8px 0 12px;color:#fff}
    #he-stepup-article .he-hero p{margin:0;color:#eaf5ff;font-size:17px}
    #he-stepup-article h2{font-size:clamp(22px,3.5vw,29px);line-height:1.25;color:var(--navy);margin:34px 0 12px;padding-bottom:9px;border-bottom:2px solid #dceaf7}
    #he-stepup-article h3{font-size:19px;line-height:1.35;color:#174e7b;margin:22px 0 8px}
    #he-stepup-article p{margin:10px 0}
    #he-stepup-article .he-lead{font-size:18px;color:#31465c}
    #he-stepup-article .he-callout{background:#eff8ff;border-left:4px solid var(--blue);padding:15px 17px;border-radius:9px;margin:18px 0}
    #he-stepup-article .he-warning{background:#fff6e9;border-left:4px solid var(--orange);padding:15px 17px;border-radius:9px;margin:18px 0}
    #he-stepup-article .he-grid{display:grid;grid-template-columns:repeat(2,minmax(0,1fr));gap:16px;margin:16px 0}
    #he-stepup-article .he-card{border:1px solid var(--line);border-radius:13px;padding:16px;background:#fff;box-shadow:0 4px 14px rgba(20,55,90,.05)}
    #he-stepup-article .he-card h3{margin-top:0}
    #he-stepup-article ul,#he-stepup-article ol{padding-left:23px}
    #he-stepup-article li{margin:5px 0}
    #he-stepup-article table{width:100%;border-collapse:collapse;margin:15px 0;font-size:15px}
    #he-stepup-article th{background:#eaf3fb;color:#143d63;text-align:left}
    #he-stepup-article th,#he-stepup-article td{border:1px solid #d6e1ec;padding:10px 12px;vertical-align:top}
    #he-stepup-article tr:nth-child(even) td{background:#f8fbfe}
    #he-stepup-article .he-equation{overflow-x:auto;background:#f7faff;border:1px solid #dce8f4;border-radius:10px;padding:13px 16px;margin:13px 0;text-align:center}
    #he-stepup-article .he-diagram{background:linear-gradient(180deg,#f7fbff,#edf6ff);border:1px solid #cbdff1;border-radius:16px;padding:15px;margin:18px 0;overflow:hidden}
    #he-stepup-article .he-diagram-title{text-align:center;font-weight:800;color:#174e7b;margin:0 0 10px}
    #he-stepup-article .he-svg{display:block;width:100%;height:auto;min-width:300px;max-height:560px}

    #he-stepup-article .he-flux{stroke-dasharray:10 8;animation:he-flux-move 1.1s linear infinite}
    #he-stepup-article .he-current{stroke-dasharray:8 7;animation:he-current-move 1.2s linear infinite}
    #he-stepup-article .he-core{animation:he-core-glow 2.2s ease-in-out infinite alternate}
    #he-stepup-article .he-coil-primary{stroke:#e87518}
    #he-stepup-article .he-coil-secondary{stroke:#1769aa}
    @keyframes he-flux-move{to{stroke-dashoffset:-36}}
    @keyframes he-current-move{to{stroke-dashoffset:-30}}
    @keyframes he-core-glow{from{filter:drop-shadow(0 0 1px rgba(22,105,170,.15))}to{filter:drop-shadow(0 0 7px rgba(22,105,170,.4))}}

    #he-stepup-article .he-voltage-panel{margin:14px auto 2px;max-width:760px;background:#fff;border:1px solid #cbdff1;border-radius:12px;padding:12px}
    #he-stepup-article .he-voltage-title{text-align:center;font-weight:800;color:#174e7b;margin-bottom:8px}
    #he-stepup-article .he-voltage-row{display:grid;grid-template-columns:105px 1fr 92px;gap:10px;align-items:center;margin:9px 0}
    #he-stepup-article .he-voltage-label{font-size:13px;font-weight:800}
    #he-stepup-article .he-voltage-track{height:18px;border-radius:20px;background:#e7eef5;overflow:hidden}
    #he-stepup-article .he-voltage-fill{height:100%;width:20%;border-radius:20px;transform-origin:left;animation:he-voltage-rise 3s ease-in-out infinite alternate}
    #he-stepup-article .he-voltage-fill.primary{background:linear-gradient(90deg,#f4a340,#e87518);width:20%}
    #he-stepup-article .he-voltage-fill.secondary{background:linear-gradient(90deg,#4aa6e8,#1769aa);width:100%}
    #he-stepup-article .he-voltage-value{text-align:right;font-size:14px;font-weight:900;color:#174e7b;font-variant-numeric:tabular-nums}
    #he-stepup-article .he-voltage-caption{text-align:center;font-size:13px;color:#526579;margin-top:8px}
    @keyframes he-voltage-rise{0%{filter:brightness(.9)}100%{filter:brightness(1.25);box-shadow:0 0 12px rgba(23,105,170,.35)}}
    @media(max-width:480px){#he-stepup-article .he-voltage-row{grid-template-columns:82px 1fr 76px;gap:6px}#he-stepup-article .he-voltage-label{font-size:12px}#he-stepup-article .he-voltage-value{font-size:12px}}

    #he-stepup-article .he-wave-panel{max-width:820px;margin:14px auto;background:#fff;border:1px solid #cbdff1;border-radius:12px;padding:13px}
    #he-stepup-article .he-wave-heading{text-align:center;color:#174e7b;font-weight:800;margin-bottom:8px}
    #he-stepup-article .he-wave-svg{display:block;width:100%;height:auto}
    #he-stepup-article .he-wave-trace{fill:none;stroke-width:4;stroke-linecap:round;stroke-dasharray:12 7;animation:he-wave-flow 1.1s linear infinite}
    #he-stepup-article .he-wave-input{stroke:#e87518}
    #he-stepup-article .he-wave-output{stroke:#1769aa;stroke-width:4.5}
    #he-stepup-article .he-wave-axis{stroke:#9aabba;stroke-width:1.4}
    #he-stepup-article .he-wave-grid{stroke:#dce7f0;stroke-width:1;stroke-dasharray:3 5}
    #he-stepup-article .he-wave-label{font:700 14px system-ui,Arial,sans-serif;fill:#28465f}
    #he-stepup-article .he-wave-value{font:800 14px system-ui,Arial,sans-serif}
    @keyframes he-wave-flow{to{stroke-dashoffset:-38}}
    @media(prefers-reduced-motion:reduce){#he-stepup-article .he-wave-trace{animation:none}}
    #he-stepup-article .he-controls{display:flex;justify-content:center;gap:9px;flex-wrap:wrap;margin-top:8px}
    #he-stepup-article button{border:0;border-radius:8px;padding:10px 16px;background:var(--blue);color:#fff;font-weight:700;cursor:pointer}
    #he-stepup-article button:hover{filter:brightness(.93)}
    #he-stepup-article button.he-secondary{background:#526579}
    #he-stepup-article .he-calc{background:#f7fbff;border:1px solid #cfe0ef;border-radius:16px;padding:19px;margin:20px 0}
    #he-stepup-article .he-formgrid{display:grid;grid-template-columns:repeat(2,minmax(0,1fr));gap:13px}
    #he-stepup-article label{display:block;font-weight:700;color:#29445e;margin-bottom:5px}
    #he-stepup-article input,#he-stepup-article select{width:100%;padding:11px 12px;border:1px solid #b9cbdc;border-radius:8px;background:#fff;color:#172b40;font:inherit}
    #he-stepup-article input:focus,#he-stepup-article select:focus{outline:2px solid #8bc8ff;border-color:#1769aa}
    #he-stepup-article .he-result{margin-top:15px;background:#e9f8ef;border:1px solid #b9e4c9;border-radius:10px;padding:15px}
    #he-stepup-article .he-result strong{color:#116b39}
    #he-stepup-article .he-small{font-size:13px;color:var(--muted)}
    #he-stepup-article .he-toc{background:#f7faff;border:1px solid var(--line);border-radius:12px;padding:16px}
    #he-stepup-article .he-toc a{color:#1769aa;text-decoration:none}
    #he-stepup-article .he-toc a:hover{text-decoration:underline}
    #he-stepup-article .he-footer-note{font-size:14px;color:#526579;border-top:1px solid var(--line);padding-top:15px;margin-top:30px}
    @media(max-width:680px){
      #he-stepup-article{font-size:15px;padding:0 10px}
      #he-stepup-article .he-hero{padding:23px 18px;border-radius:13px}
      #he-stepup-article .he-grid,#he-stepup-article .he-formgrid{grid-template-columns:1fr}
      #he-stepup-article table{font-size:13px}
      #he-stepup-article th,#he-stepup-article td{padding:8px 7px}
      #he-stepup-article .he-diagram{padding:8px}
    }
    @media(prefers-reduced-motion:reduce){
      #he-stepup-article .he-flux,#he-stepup-article .he-current,#he-stepup-article .he-core{animation:none}
    }
  </style>

  <header class="he-hero">


    <p>A practical engineering guide to voltage transformation, turns ratio, induced EMF, losses, efficiency and transformer calculations.</p>
  </header>

  <nav class="he-toc" aria-label="Article contents">
    <strong>In this article</strong>
    <ol>
      <li><a href="#he-intro">What is a step-up transformer?</a></li>
      <li><a href="#he-principle">Working principle and animated diagram</a></li>
      <li><a href="#he-construction">Construction and components</a></li>
      <li><a href="#he-equations">Important equations and derivations</a></li>
      <li><a href="#he-example">Solved numerical example</a></li>
      <li><a href="#he-losses">Losses, efficiency and regulation</a></li>
      <li><a href="#he-applications">Applications and selection</a></li>
      <li><a href="#he-calculator">Interactive transformer calculator</a></li>
    </ol>
  </nav>

  <section id="he-intro">
    <h2>1. What Is a Step-Up Transformer?</h2>
    <p class="he-lead">A <strong>step-up transformer</strong> is a static electrical device that transfers AC power from one circuit to another through electromagnetic induction while increasing the voltage from the primary side to the secondary side. In the usual step-up arrangement, the secondary winding has more turns than the primary winding.</p>
    <p>For example, a transformer may receive 230 V AC and produce 2,300 V AC. The voltage is multiplied by ten in this ideal example. The transformer does not create additional power: when voltage increases, the available current decreases in approximately the same ratio, allowing for losses. This relationship is central to understanding why transformers are used in power transmission.</p>
    <p>A transformer requires a changing magnetic flux, so conventional power transformers operate with alternating current. Applying steady DC to a normal transformer does not provide continuous transformer action and can cause excessive winding current and overheating. Special electronic converters can switch DC to create AC or high-frequency pulses, but that is a different conversion stage.</p>
    <div class="he-callout"><strong>Key condition:</strong> For a step-up transformer, \(N_s&gt;N_p\), and ideally \(V_s&gt;V_p\). The letters \(p\) and \(s\) denote primary and secondary.</div>
  </section>

  <section id="he-principle">
    <h2>2. Working Principle: Mutual Induction</h2>
    <p>A step-up transformer works on <strong>Faraday’s law of electromagnetic induction</strong> and the principle of mutual induction. When AC voltage is applied to the primary winding, an alternating current flows through it. This current produces an alternating magnetic flux in the laminated iron or steel core. The core provides a low-reluctance path for most of this flux.</p>
    <p>The changing flux links both windings. According to Faraday’s law, a changing flux linkage induces an EMF in each winding. The induced voltage is proportional to the number of turns, provided both windings link substantially the same mutual flux. Since the secondary has more turns, its induced voltage is higher. When a load is connected, secondary current flows and electrical power is delivered to that load.</p>

    <div class="he-diagram">
      <p class="he-diagram-title">Animated Working Diagram of a Step-Up Transformer</p>
      <svg class="he-svg" viewBox="0 0 1000 500" role="img" aria-label="Step-up transformer showing the laminated magnetic core identified by a pointer and clockwise magnetic flux direction arrows">
  <defs>
    <linearGradient id="heCoreMetal" x1="0" y1="0" x2="1" y2="1">
      <stop offset="0" stop-color="#71869a"></stop><stop offset=".48" stop-color="#e6edf3"></stop><stop offset="1" stop-color="#657b90"></stop>
    </linearGradient>
    <marker id="heFluxArrow" markerWidth="10" markerHeight="10" refX="7" refY="3" orient="auto">
      <path d="M0 0 L7 3 L0 6" fill="none" stroke="#1683cf" stroke-width="1.5"></path>
    </marker>
    <marker id="heLabelArrow" markerWidth="10" markerHeight="10" refX="8" refY="4" orient="auto">
      <path d="M0 0 L8 4 L0 8 Z" fill="#263f55"></path>
    </marker>
  </defs>

  <!-- Core label with a clear pointer -->
  <text x="500" y="34" text-anchor="middle" font-size="20" font-weight="800" fill="#174e7b">LAMINATED MAGNETIC CORE</text>
  <path d="M500 42 L500 66" stroke="#263f55" stroke-width="2.5" marker-end="url(#heLabelArrow)"></path>

  <!-- Laminated magnetic core -->
  <g class="he-core">
    <path d="M350 65 H650 V410 H350 Z M430 155 H570 V320 H430 Z" fill="url(#heCoreMetal)" fill-rule="evenodd" stroke="#536d83" stroke-width="4"></path>
    <path d="M362 82 H638 M362 96 H638 M362 110 H638 M362 365 H638 M362 379 H638 M362 393 H638" stroke="#fff" stroke-width="2" opacity=".6"></path>
  </g>

  <!-- Primary coil -->
  <g class="he-coil-primary" fill="none" stroke="#e87518" stroke-width="9" stroke-linecap="round">
    <path d="M350 145 C270 145 270 168 350 168 C270 168 270 191 350 191
      C270 191 270 214 350 214 C270 214 270 237 350 237
      C270 237 270 260 350 260 C270 260 270 283 350 283
      C270 283 270 306 350 306 C270 306 270 329 350 329"></path>
  </g>
  <text x="35" y="135" font-size="24" font-weight="800" fill="#9b4c0b">PRIMARY</text>
  <text x="35" y="164" font-size="18" fill="#704a2a">Fewer turns (Nₚ)</text>

  <!-- AC source -->
  <text x="35" y="220" font-size="17" font-weight="800" fill="#9b4c0b">AC INPUT SOURCE</text>
  <path d="M350 145 H230 V238 M230 302 V329 H350" fill="none" stroke="#e87518" stroke-width="3.5"></path>
  <circle cx="230" cy="270" r="32" fill="#fff7ed" stroke="#e87518" stroke-width="3.5"></circle>
  <path d="M206 270 Q218 248 230 270 T254 270" fill="none" stroke="#e87518" stroke-width="3"></path>
  <text x="35" y="365" font-size="16" fill="#704a2a">AC supply to primary</text>

  <!-- Secondary coil -->
  <g class="he-coil-secondary" fill="none" stroke="#1769aa" stroke-width="8" stroke-linecap="round">
    <path d="M650 105 C730 105 730 119 650 119 C730 119 730 133 650 133
      C730 133 730 147 650 147 C730 147 730 161 650 161
      C730 161 730 175 650 175 C730 175 730 189 650 189
      C730 189 730 203 650 203 C730 203 730 217 650 217
      C730 217 730 231 650 231 C730 231 730 245 650 245
      C730 245 730 259 650 259 C730 259 730 273 650 273
      C730 273 730 287 650 287 C730 287 730 301 650 301
      C730 301 730 315 650 315 C730 315 730 329 650 329
      C730 329 730 343 650 343 C730 343 730 357 650 357"></path>
  </g>
  <text x="745" y="65" font-size="23" font-weight="800" fill="#145b96">SECONDARY</text>
  <text x="745" y="91" font-size="18" fill="#315d80">More turns (Nₛ)</text>

  <!-- Secondary output circuit and load -->
  <path d="M650 105 H870 V205 M870 295 V357 H650" fill="none" stroke="#1769aa" stroke-width="3.5"></path>
  <rect x="850" y="205" width="40" height="90" rx="5" fill="#eff7ff" stroke="#1769aa" stroke-width="3.5"></rect>
  <path d="M857 216 L883 231 L857 246 L883 261 L857 276 L883 286" fill="none" stroke="#1769aa" stroke-width="2.5"></path>
  <text x="905" y="235" font-size="18" font-weight="800" fill="#145b96">LOAD</text>
  <text x="905" y="260" font-size="16" fill="#315d80">Rₗ</text>
  <text x="735" y="395" font-size="16" fill="#315d80">High-voltage AC output</text>

  <!-- Alternating magnetic flux: clockwise around the core -->
  <path class="he-flux" d="M405 135 H595 V345 H405 V135" fill="none" stroke="#1683cf" stroke-width="5" stroke-dasharray="11 8"></path>
  <path class="he-flux" d="M420 150 H580 V330 H420 V150" fill="none" stroke="#50a9e8" stroke-width="3" stroke-dasharray="7 7" opacity=".9"></path>
  <!-- Direction markers: top right, right down, bottom left, left up -->
  <path d="M465 135 H505 M595 205 V245 M535 345 H495 M405 275 V235" fill="none" stroke="#1683cf" stroke-width="3.5" marker-end="url(#heFluxArrow)"></path>

  <!-- Small, simple flux label with a pointer -->
  <text x="500" y="248" text-anchor="middle" font-size="13" font-weight="700" fill="#174e7b">Flux (Φ)</text>
  <path d="M465 242 L430 242" fill="none" stroke="#1683cf" stroke-width="1.8" marker-end="url(#heFluxArrow)"></path>

  <rect x="380" y="435" width="240" height="42" rx="10" fill="#e6f3ff" stroke="#b8d8f0"></rect>
  <text x="500" y="462" text-anchor="middle" font-size="19" font-weight="800" fill="#174e7b">Nₛ &gt; Nₚ  ⇒  Vₛ &gt; Vₚ</text>
</svg>
      <div class="he-voltage-panel" aria-label="Animated voltage comparison">
        <div class="he-voltage-title">Voltage Step-Up: Primary to Secondary</div>
        <div class="he-voltage-row">
          <div class="he-voltage-label">Primary</div>
          <div class="he-voltage-track"><div class="he-voltage-fill primary"></div></div>
          <div class="he-voltage-value">230 V</div>
        </div>
        <div class="he-voltage-row">
          <div class="he-voltage-label">Secondary</div>
          <div class="he-voltage-track"><div class="he-voltage-fill secondary"></div></div>
          <div class="he-voltage-value">1,150 V</div>
        </div>
        <div class="he-voltage-caption">Example: 500 primary turns → 2,500 secondary turns. Voltage rises by a factor of 5 (ideal transformer).</div>
      </div>
      <div class="he-wave-panel">
        <div class="he-wave-heading">AC Waveform Comparison — Higher Secondary Voltage</div>
        <svg class="he-wave-svg" viewBox="0 0 760 300" role="img" aria-label="Two sine waves at the same frequency: 230 volt RMS primary sine wave with smaller amplitude and 1150 volt RMS secondary sine wave with five times larger amplitude">
          <g>
            <line class="he-wave-grid" x1="75" y1="45" x2="730" y2="45"></line>
            <line class="he-wave-grid" x1="75" y1="150" x2="730" y2="150"></line>
            <line class="he-wave-grid" x1="75" y1="255" x2="730" y2="255"></line>
            <line class="he-wave-axis" x1="75" y1="25" x2="75" y2="270"></line>
            <line class="he-wave-axis" x1="75" y1="150" x2="735" y2="150"></line>
            <text class="he-wave-label" x="15" y="34">Voltage</text>
            <text class="he-wave-label" x="700" y="290">Time</text>
            <text class="he-wave-label" x="15" y="155">0</text>
            <path class="he-wave-trace he-wave-input" d="M75 150 C102 122 129 122 156 150 S210 178 237 150 S291 122 318 150 S372 178 399 150 S453 122 480 150 S534 178 561 150 S615 122 642 150 S696 178 723 150"></path>
            <path class="he-wave-trace he-wave-output" d="M75 150 C102 45 129 45 156 150 S210 255 237 150 S291 45 318 150 S372 255 399 150 S453 45 480 150 S534 255 561 150 S615 45 642 150 S696 255 723 150"></path>
            <text class="he-wave-value" x="92" y="112" fill="#b85a0c">Primary: 230 V RMS</text>
            <text class="he-wave-value" x="92" y="24" fill="#1769aa">Secondary: 1,150 V RMS</text>
          </g>
        </svg>
        <p class="he-small" style="text-align:center;margin:5px 0 0">Illustrative sine waves: the secondary has the same frequency and a five-times larger voltage amplitude for the 5:1 turns ratio example.</p>
      </div>
      <p class="he-small" style="text-align:center">Watch the secondary voltage bar rise above the primary: more secondary turns produce higher induced voltage. Conceptual example only; actual voltage depends on transformer design and load.</p>
    </div>

    <h3>Step-by-step operation</h3>
    <ol>
      <li><strong>AC input:</strong> An alternating voltage is applied to the primary winding.</li>
      <li><strong>Magnetising current:</strong> A small no-load current establishes alternating flux in the core.</li>
      <li><strong>Flux linkage:</strong> The common flux links the primary and secondary turns.</li>
      <li><strong>Induced EMF:</strong> Faraday’s law produces EMF in both windings.</li>
      <li><strong>Voltage step-up:</strong> More secondary turns produce a higher secondary voltage.</li>
      <li><strong>Power transfer:</strong> With a load connected, secondary current flows and power is transferred magnetically.</li>
    </ol>
  </section>

  <section id="he-construction">
    <h2>3. Construction and Main Components</h2>
    <p>A power transformer is built to provide magnetic coupling, electrical insulation, mechanical strength and heat removal. Small dry-type units may use a simple enclosure, while larger distribution and transmission transformers may be oil-immersed and include cooling equipment and protective accessories.</p>
    <div class="he-grid">
      <div class="he-card"><h3>Magnetic core</h3><p>Usually made from thin insulated laminations of electrical steel. Laminations reduce circulating eddy currents and the associated core loss. The core carries alternating magnetic flux.</p></div>
      <div class="he-card"><h3>Primary winding</h3><p>The input winding connected to the AC source. In a step-up transformer it generally has fewer turns and carries higher current than the secondary at comparable power.</p></div>
      <div class="he-card"><h3>Secondary winding</h3><p>The output winding connected to the load. It has more turns in a step-up design and is insulated for its higher operating voltage.</p></div>
      <div class="he-card"><h3>Insulation system</h3><p>Enamel, paper, pressboard, resin, oil or other insulation separates turns and windings and withstands electrical stress, heat and ageing.</p></div>
      <div class="he-card"><h3>Tank and cooling</h3><p>Oil-immersed units use a tank and radiators or other cooling arrangements to transfer heat. Dry-type units commonly use air cooling.</p></div>
      <div class="he-card"><h3>Bushings and accessories</h3><p>Bushings provide insulated external connections. Larger units may include conservators, breathers, temperature indicators, pressure relief devices and protection relays.</p></div>
    </div>
    <h3>Core-type and shell-type construction</h3>
    <p>In a core-type transformer, windings are commonly arranged around the core limbs. In a shell-type transformer, the core surrounds a larger portion of the windings. Both arrangements can be used for step-up or step-down service; the correct choice depends on rating, voltage, insulation, mechanical forces, cooling and manufacturing practice.</p>
  </section>

  <section id="he-equations">
    <h2>4. Important Equations and Engineering Concepts</h2>
    <h3>4.1 Transformer turns ratio</h3>
    <p>For an ideal transformer, voltage ratio equals turns ratio:</p>
    <div class="he-equation">\[\frac{V_s}{V_p}=\frac{N_s}{N_p}=k\]</div>
    <p>Here \(V_p\) and \(V_s\) are RMS primary and secondary voltages, \(N_p\) and \(N_s\) are the corresponding number of turns, and \(k\) is the transformation ratio. For a step-up transformer, \(k&gt;1\).</p>

    <h3>4.2 Current ratio and power balance</h3>
    <p>Ignoring losses, input power equals output power. For a single-phase transformer:</p>
    <div class="he-equation">\[V_p I_p \approx V_s I_s\]</div>
    <div class="he-equation">\[\frac{I_s}{I_p}=\frac{N_p}{N_s}=\frac{1}{k}\]</div>
    <p>Thus, a step-up transformer increases voltage while reducing current for the same transferred apparent power. In an actual AC circuit, power factor must be considered when calculating real power.</p>

    <h3>4.3 EMF equation</h3>
    <p>For sinusoidal flux, the RMS induced EMF per winding is:</p>
    <div class="he-equation">\[E=4.44 f N \Phi_m\]</div>
    <p>Where \(E\) is RMS induced EMF in volts, \(f\) is frequency in hertz, \(N\) is turns, and \(\Phi_m\) is maximum core flux in webers. Therefore:</p>
    <div class="he-equation">\[E_p=4.44fN_p\Phi_m,\qquad E_s=4.44fN_s\Phi_m\]</div>
    <p>The ratio of these equations gives \(E_s/E_p=N_s/N_p\). The constant 4.44 applies to sinusoidal flux; a different waveform requires a corresponding form factor.</p>

    <h3>4.4 Apparent power rating</h3>
    <p>Transformer ratings are commonly stated in volt-amperes (VA), kilovolt-amperes (kVA) or megavolt-amperes (MVA), rather than watts, because winding heating is strongly related to voltage and current and is not determined by load power factor alone.</p>
    <div class="he-equation">\[S=VI\quad\text{(single phase)}\]</div>
    <div class="he-equation">\[S=\sqrt{3}\,V_L I_L\quad\text{(balanced three phase)}\]</div>
    <p>For three-phase calculations, \(V_L\) and \(I_L\) are line-to-line voltage and line current. Use consistent units.</p>

    <h3>4.5 Impedance transformation</h3>
    <p>An impedance connected to the secondary can be referred to the primary by the square of the turns ratio:</p>
    <div class="he-equation">\[Z&#8217;_p=\left(\frac{N_p}{N_s}\right)^2 Z_s=\frac{Z_s}{k^2}\]</div>
    <p>This is useful in equivalent-circuit analysis because it allows primary and secondary quantities to be represented on one side of the transformer.</p>
  </section>

  <section id="he-example">
    <h2>5. Solved Numerical Example</h2>
    <p><strong>Problem:</strong> A single-phase ideal transformer has 500 primary turns and 2,500 secondary turns. The primary supply is 230 V AC. Find the secondary voltage. If the secondary supplies 2 A, estimate the primary current.</p>
    <p><strong>Step 1 — Turns ratio:</strong></p>
    <div class="he-equation">\[k=\frac{N_s}{N_p}=\frac{2500}{500}=5\]</div>
    <p><strong>Step 2 — Secondary voltage:</strong></p>
    <div class="he-equation">\[V_s=V_p\times k=230\times5=1150\text{ V}\]</div>
    <p><strong>Step 3 — Primary current:</strong></p>
    <div class="he-equation">\[I_p=\frac{V_s I_s}{V_p}=\frac{1150\times2}{230}=10\text{ A}\]</div>
    <p><strong>Answer:</strong> The ideal secondary voltage is 1,150 V RMS and the primary current is approximately 10 A. A real transformer will have losses and voltage regulation, so its measured loaded output will differ from the ideal value.</p>
    <table>
      <thead><tr><th>Quantity</th><th>Value</th><th>Meaning</th></tr></thead>
      <tbody>
        <tr><td>Primary voltage</td><td>230 V</td><td>AC input RMS voltage</td></tr>
        <tr><td>Turns ratio</td><td>5:1 (secondary:primary)</td><td>Five secondary turns per primary turn</td></tr>
        <tr><td>Secondary voltage</td><td>1,150 V</td><td>Ideal no-load approximation</td></tr>
        <tr><td>Secondary current</td><td>2 A</td><td>Specified load current</td></tr>
        <tr><td>Primary current</td><td>10 A</td><td>Ideal current estimate</td></tr>
      </tbody>
    </table>
  </section>

  <section id="he-losses">
    <h2>6. Losses, Efficiency and Voltage Regulation</h2>
    <p>No practical transformer is perfectly efficient. Its losses are mainly divided into no-load losses and load-dependent losses. Core loss consists mainly of hysteresis and eddy-current loss. Hysteresis loss is associated with repeated magnetisation of the core; eddy-current loss is reduced by using thin, insulated core laminations. Copper loss is caused by winding resistance and varies approximately with the square of current.</p>
    <table>
      <thead><tr><th>Loss or effect</th><th>Cause</th><th>How it is reduced</th></tr></thead>
      <tbody>
        <tr><td>Hysteresis loss</td><td>Repeated reversal of core magnetisation</td><td>Use suitable low-loss magnetic steel</td></tr>
        <tr><td>Eddy-current loss</td><td>Circulating currents in the core</td><td>Use thin insulated laminations</td></tr>
        <tr><td>Copper loss</td><td>Winding resistance, \(I^2R\)</td><td>Optimise conductor size and winding design</td></tr>
        <tr><td>Stray loss</td><td>Leakage flux inducing currents in structural parts</td><td>Careful magnetic and mechanical design</td></tr>
        <tr><td>Dielectric loss</td><td>Loss in insulation under AC electric stress</td><td>Good insulation design and maintenance</td></tr>
      </tbody>
    </table>
    <h3>Efficiency</h3>
    <div class="he-equation">\[\eta=\frac{P_{\text{out}}}{P_{\text{in}}}\times100\%\]</div>
    <div class="he-equation">\[\eta=\frac{P_{\text{out}}}{P_{\text{out}}+P_{\text{core}}+P_{\text{cu}}}\times100\%\]</div>
    <p>For a load with power factor \(\cos\phi\), single-phase real output power is \(P_{\text{out}}=V_s I_s\cos\phi\). A high-quality power transformer can achieve high efficiency, but the actual value depends on rating, loading, design and operating conditions.</p>
    <h3>Voltage regulation</h3>
    <p>Voltage regulation describes the change in secondary terminal voltage between no-load and a specified load, with primary voltage and frequency held constant:</p>
    <div class="he-equation">\[\%VR=\frac{V_{\text{no-load}}-V_{\text{full-load}}}{V_{\text{full-load}}}\times100\%\]</div>
    <p>Winding resistance, leakage reactance and load power factor influence regulation. A lagging power-factor load commonly causes a greater voltage drop; leading power factor can produce a different result and may cause a voltage rise in some conditions.</p>
  </section>

  <section id="he-applications">
    <h2>7. Applications, Advantages and Limitations</h2>
    <div class="he-grid">
      <div class="he-card"><h3>Power transmission</h3><p>Generating stations use step-up transformers to raise voltage for transmission. For a given power, higher voltage means lower current, which can reduce line \(I^2R\) losses when the transmission system is properly designed.</p></div>
      <div class="he-card"><h3>Renewable energy</h3><p>Wind and other generation systems may use transformers to match generator or converter output to the voltage level of a collection network or grid connection.</p></div>
      <div class="he-card"><h3>Industrial systems</h3><p>Special-purpose transformers provide higher AC voltage for selected industrial processes, testing systems and equipment, subject to applicable standards and safeguards.</p></div>
      <div class="he-card"><h3>Laboratory and testing</h3><p>High-voltage test equipment may use step-up transformers to generate specified AC test voltages. These systems require controlled procedures and protective enclosures.</p></div>
    </div>
    <h3>Advantages</h3>
    <ul>
      <li>Raises AC voltage without a rotating mechanical conversion stage.</li>
      <li>Supports efficient long-distance power transmission by reducing current for a given power.</li>
      <li>Provides electrical isolation between primary and secondary circuits in conventional isolated designs.</li>
      <li>Can be designed for a wide range of voltage and power ratings.</li>
    </ul>
    <h3>Limitations</h3>
    <ul>
      <li>It operates with changing magnetic flux; a conventional transformer does not directly step up steady DC.</li>
      <li>It has losses, voltage drop, size and cost constraints.</li>
      <li>Higher secondary voltage requires suitable insulation, clearances, terminals and protection.</li>
      <li>Frequency and voltage must remain within the transformer&#8217;s design limits to avoid excessive core flux and overheating.</li>
    </ul>
    <h3>Selection checklist</h3>
    <p>Before selecting a transformer, establish the input and output voltage, frequency, single-phase or three-phase arrangement, kVA rating, load type, duty cycle, insulation level, cooling method, installation environment, short-circuit withstand requirement, protection and applicable local standards. For three-phase transformers, vector group and winding connection are also important.</p>
    <div class="he-warning"><strong>Electrical safety:</strong> Step-up transformers can produce lethal voltages. Never touch exposed terminals or attempt a live test. Installation, earthing, protection, insulation coordination and testing must be carried out by qualified electrical personnel using approved equipment and procedures.</div>
  </section>

  <section id="he-calculator">
    <h2>8. Interactive Step-Up Transformer Calculator</h2>
    <p>Enter the primary voltage, winding turns and secondary load current. The calculator estimates ideal secondary voltage and primary current. It is an educational ideal-transformer calculation, not a transformer design or safety approval tool.</p>
    <div class="he-calc">
      <div class="he-formgrid">
        <div><label for="he-vp">Primary voltage, Vₚ (V RMS)</label><input id="he-vp" type="number" min="0.01" step="any" value="230"></div>
        <div><label for="he-np">Primary turns, Nₚ</label><input id="he-np" type="number" min="1" step="1" value="500"></div>
        <div><label for="he-ns">Secondary turns, Nₛ</label><input id="he-ns" type="number" min="1" step="1" value="2500"></div>
        <div><label for="he-is">Secondary load current, Iₛ (A)</label><input id="he-is" type="number" min="0" step="any" value="2"></div>
      </div>
      <div class="he-controls" style="justify-content:flex-start;margin-top:15px"><button type="button" id="he-calculate">Calculate</button><button type="button" class="he-secondary" id="he-reset">Reset values</button></div>
      <div class="he-result" id="he-output" aria-live="polite">
        <strong>Estimated results</strong>
        <p>Turns ratio: <b>5.00 : 1</b> (step-up)</p>
        <p>Ideal secondary voltage: <b>1,150.00 V</b></p>
        <p>Ideal primary current: <b>10.00 A</b></p>
        <p>Ideal apparent power: <b>2,300.00 VA</b></p>
      </div>
      <p class="he-small">Assumptions: ideal transformer, negligible magnetising current and losses, and RMS sinusoidal voltage. If Nₛ is not greater than Nₚ, the calculator reports that the entered turns ratio is not step-up.</p>
    </div>
  </section>

  <section>
    <h2>9. Quick Formula Reference</h2>
    <table>
      <thead><tr><th>Parameter</th><th>Formula</th><th>Use</th></tr></thead>
      <tbody>
        <tr><td>Turns / voltage ratio</td><td>\(V_s/V_p=N_s/N_p\)</td><td>Find secondary voltage or turns</td></tr>
        <tr><td>Current ratio</td><td>\(I_s/I_p=N_p/N_s\)</td><td>Estimate current in ideal transformer</td></tr>
        <tr><td>EMF equation</td><td>\(E=4.44fN\Phi_m\)</td><td>Sinusoidal flux induced EMF</td></tr>
        <tr><td>Single-phase apparent power</td><td>\(S=VI\)</td><td>VA or kVA rating calculations</td></tr>
        <tr><td>Efficiency</td><td>\(\eta=P_{out}/P_{in}\times100\%\)</td><td>Compare useful output with input</td></tr>
        <tr><td>Impedance referred to primary</td><td>\(Z&#8217;_p=Z_s(N_p/N_s)^2\)</td><td>Equivalent-circuit analysis</td></tr>
      </tbody>
    </table>
  </section>

  <p class="he-footer-note"><strong>Conclusion:</strong> A step-up transformer increases AC voltage by using a secondary winding with more turns than the primary. Its operation follows mutual induction, and its performance is analysed using turns ratio, the EMF equation, current and power relationships, losses, efficiency and voltage regulation. These fundamentals help engineers understand transformer operation and evaluate its role in power systems.</p>
</div>

<script>
(function(){
  const root=document.getElementById('he-stepup-article');
  if(!root || root.dataset.initialized==='yes') return;
  root.dataset.initialized='yes';

  const vp=root.querySelector('#he-vp');
  const np=root.querySelector('#he-np');
  const ns=root.querySelector('#he-ns');
  const is=root.querySelector('#he-is');
  const output=root.querySelector('#he-output');

  function calculate(){
    const Vp=Number(vp.value), Np=Number(np.value), Ns=Number(ns.value), Is=Number(is.value);
    if(!Number.isFinite(Vp)||!Number.isFinite(Np)||!Number.isFinite(Ns)||!Number.isFinite(Is)||Vp<=0||Np<=0||Ns<=0||Is<0){
      output.innerHTML='<strong style="color:#a32626">Please enter valid positive voltage and turns. Load current must be zero or greater.</strong>';
      return;
    }
    const ratio=Ns/Np, Vs=Vp*ratio, Ip=Is/ratio, apparent=Vs*Is;
    const state=ratio>1?'Step-up transformer':(ratio===1?'1:1 isolation ratio':'Entered turns ratio is step-down');
    output.innerHTML='<strong>Calculated results — '+state+'</strong>'+
      '<p>Turns ratio (Nₛ/Nₚ): <b>'+ratio.toFixed(3)+' : 1</b></p>'+
      '<p>Ideal secondary voltage (Vₛ): <b>'+Vs.toLocaleString(undefined,{maximumFractionDigits:2})+' V</b></p>'+
      '<p>Ideal primary current (Iₚ): <b>'+Ip.toLocaleString(undefined,{maximumFractionDigits:3})+' A</b></p>'+
      '<p>Ideal apparent output power: <b>'+apparent.toLocaleString(undefined,{maximumFractionDigits:2})+' VA</b></p>'+
      '<p class="he-small">Ideal estimate only. Real voltage and current depend on winding resistance, leakage reactance, core loss, load power factor and regulation.</p>';
  }
  root.querySelector('#he-calculate').addEventListener('click',calculate);
  root.querySelector('#he-reset').addEventListener('click',function(){
    vp.value=230; np.value=500; ns.value=2500; is.value=2; calculate();
  });
  [vp,np,ns,is].forEach(function(el){el.addEventListener('input',calculate);});

  const toggle=root.querySelector('#he-animation-toggle');
  const restart=root.querySelector('#he-animation-restart');
  let paused=false;
  function setAnimation(state){
    paused=state;
    root.querySelectorAll('.he-flux,.he-current,.he-core').forEach(function(el){
      el.style.animationPlayState=paused?'paused':'running';
    });
    toggle.textContent=paused?'Resume animation':'';
    toggle.setAttribute('aria-pressed',String(!paused));
  }
  toggle.addEventListener('click',function(){setAnimation(!paused);});
  restart.addEventListener('click',function(){setAnimation(false);});
  calculate();

  if(window.MathJax && window.MathJax.typesetPromise){
    window.MathJax.typesetPromise([root]).catch(function(){});
  }
})();
</script>
<script>
window.MathJax = window.MathJax || {tex:{inlineMath:[['\\(','\\)']],displayMath:[['\\[','\\]']]},options:{skipHtmlTags:['script','noscript','style','textarea','pre','code']}};
</script>
<script async="" id="he-mathjax" src="https://cdn.jsdelivr.net/npm/mathjax@3/es5/tex-mml-chtml.js"></script>
<p>The post <a href="https://howelectrical.com/step-up-transformer/">Step Up Transformer: Working Principle, Diagram, Formula &amp; Uses</a> appeared first on <a href="https://howelectrical.com">Electrical and Electronics Blog</a>.</p>
]]></content:encoded>

					<wfw:commentRss>https://howelectrical.com/step-up-transformer/feed/</wfw:commentRss>
			<slash:comments>0</slash:comments>


			</item>
		<item>
		<title>Solar Panel – Working Principle, Construction, Types and Applications</title>
		<link>https://howelectrical.com/solar-panel/</link>
					<comments>https://howelectrical.com/solar-panel/#respond</comments>

		<dc:creator><![CDATA[admin]]></dc:creator>
		<pubDate>Mon, 09 Nov 2026 19:59:33 +0000</pubDate>
				<category><![CDATA[Basic Electrical]]></category>
		<guid isPermaLink="false">https://howelectrical.com/?p=5025</guid>

					<description><![CDATA[<p>Learn how solar panels work, their construction, working principle, different types, photovoltaic effect, advantages, limitations and practical applications in solar energy systems.</p>
<p>The post <a href="https://howelectrical.com/solar-panel/">Solar Panel – Working Principle, Construction, Types and Applications</a> appeared first on <a href="https://howelectrical.com">Electrical and Electronics Blog</a>.</p>
]]></description>
										<content:encoded><![CDATA[
<div id="solar-panel-article">

<style>
#solar-panel-article{
 --sp-blue:#2563eb;--sp-dark:#14213d;--sp-cyan:#06b6d4;
 --sp-green:#16a34a;--sp-border:#dce5f1;
 color:#29384c;font-family:Arial,Helvetica,sans-serif;
 font-size:16px;line-height:1.8;width:100%;overflow:hidden
}
#solar-panel-article *{box-sizing:border-box}
#solar-panel-article h1,#solar-panel-article h2,#solar-panel-article h3{
 color:var(--sp-dark);font-weight:750;line-height:1.35
}
#solar-panel-article h1{font-size:clamp(27px,4vw,38px);margin:0 0 15px}
#solar-panel-article h2{
 font-size:clamp(22px,3vw,29px);margin:38px 0 16px;
 padding-bottom:10px;border-bottom:2px solid var(--sp-border)
}
#solar-panel-article h3{font-size:19px;margin:23px 0 10px}
#solar-panel-article p{margin:12px 0}
#solar-panel-article ul,#solar-panel-article ol{padding-left:24px}
#solar-panel-article li{margin:7px 0}
#solar-panel-article a{color:var(--sp-blue)}
#solar-panel-article .sp-hero{
 padding:30px 23px;border-radius:17px;color:#fff;
 background:linear-gradient(130deg,#10234b,#1759a9);margin:15px 0 24px
}
#solar-panel-article .sp-hero h1{color:white}
#solar-panel-article .sp-hero p{color:#e1edff}
#solar-panel-article .sp-tag{
 display:inline-block;padding:5px 12px;border:1px solid #ffffff55;
 border-radius:30px;font-size:12px;margin-bottom:12px
}
#solar-panel-article .sp-tags{display:flex;gap:8px;flex-wrap:wrap;margin-top:15px}
#solar-panel-article .sp-tags span{
 border:1px solid #ffffff55;border-radius:5px;padding:4px 9px;font-size:12px
}
#solar-panel-article .sp-toc{
 padding:19px;background:#f6f9ff;border:1px solid var(--sp-border);
 border-radius:12px;margin:25px 0
}
#solar-panel-article .sp-toc h3{margin:0 0 10px}
#solar-panel-article .sp-toc ol{margin:0}
#solar-panel-article .sp-toc a{text-decoration:none}
#solar-panel-article .sp-box{
 padding:17px;background:#f4f8ff;border:1px solid var(--sp-border);
 border-radius:11px;margin:19px 0
}
#solar-panel-article .sp-note{
 padding:14px 17px;background:#eff6ff;
 border-left:4px solid #2563eb;border-radius:5px;margin:20px 0
}
#solar-panel-article .sp-warning{
 padding:14px 17px;background:#fff7e8;
 border-left:4px solid #e6a12a;border-radius:5px;margin:20px 0
}
#solar-panel-article .sp-grid{
 display:grid;grid-template-columns:repeat(2,minmax(0,1fr));
 gap:14px;margin:20px 0
}
#solar-panel-article .sp-card{
 border:1px solid var(--sp-border);border-radius:11px;
 padding:16px;background:#fff;box-shadow:0 3px 12px #12294b08
}
#solar-panel-article .sp-card h3{margin:0 0 8px}
#solar-panel-article .sp-card p{font-size:14px;margin:0}
#solar-panel-article .sp-table-wrap{
 overflow-x:auto;border:1px solid var(--sp-border);
 border-radius:10px;margin:19px 0
}
#solar-panel-article table{
 border-collapse:collapse;width:100%;min-width:510px;font-size:14px;margin:0
}
#solar-panel-article th,#solar-panel-article td{
 padding:12px 14px;border-bottom:1px solid var(--sp-border);text-align:left
}
#solar-panel-article th{background:#eaf2ff;color:#17345f}
#solar-panel-article tr:last-child td{border-bottom:0}
#solar-panel-article .sp-equation{
 background:#f4f7ff;border:1px solid #dce6f8;
 padding:15px 10px;border-radius:9px;text-align:center;
 margin:16px 0;color:#153a6b;overflow-x:auto
}
#solar-panel-article .sp-diagram{
 padding:22px 12px;background:#101e37;border-radius:15px;
 margin:24px 0;color:white
}
#solar-panel-article .sp-diagram h3{color:white;text-align:center;margin:0}
#solar-panel-article .sp-diagram>p{text-align:center;color:#ccdaf0;font-size:13px}
#solar-panel-article .sp-flow{
 display:flex;align-items:center;justify-content:center;
 flex-wrap:wrap;gap:8px;margin:25px 0
}
#solar-panel-article .sp-node{
 position:relative;flex:1 1 105px;max-width:145px;
 min-width:105px;text-align:center;padding:14px 7px;
 background:#1e3455;border:1px solid #5476a4;border-radius:10px
}
#solar-panel-article .sp-node strong{display:block;color:white;font-size:13px}
#solar-panel-article .sp-node small{color:#c7d7f0;font-size:11px}
#solar-panel-article .sp-icon{font-size:26px;display:block;margin-bottom:5px}
#solar-panel-article .sp-arrow{color:#5de3e8;font-size:23px;font-weight:bold}
}
#solar-panel-article button{
 border:0;border-radius:8px;padding:11px 17px;
 background:#2563eb;color:#fff;font-weight:700;cursor:pointer
}
#solar-panel-article button:hover{filter:brightness(.9)}
#solar-panel-article .sp-outline{
 background:transparent;border:1px solid #91add2;color:white
}
#solar-panel-article .sp-controls{
 display:flex;justify-content:center;gap:10px;flex-wrap:wrap
}
#solar-panel-article .sp-calculator{
 background:linear-gradient(140deg,#102b54,#174d87);
 color:white;padding:22px;border-radius:15px;margin:24px 0
}
#solar-panel-article .sp-calculator h2{color:white;border-color:#ffffff30}
#solar-panel-article .sp-calculator p{color:#d9e8fc}
#solar-panel-article .sp-fields{
 display:grid;grid-template-columns:repeat(2,minmax(0,1fr));gap:14px
}
#solar-panel-article .sp-field label{
 display:block;font-size:13px;color:#d9e8fc;margin-bottom:5px
}
#solar-panel-article .sp-field input{
 width:100%;min-width:0;padding:11px;
 border:1px solid #c5d6ea;border-radius:7px;
 background:#fff;color:#172d49;font-size:16px
}
#solar-panel-article .sp-results{
 margin-top:19px;padding:15px;border:1px solid #ffffff40;
 background:#ffffff12;border-radius:10px
}
#solar-panel-article .sp-result-grid{
 display:grid;grid-template-columns:repeat(2,minmax(0,1fr));gap:12px
}
#solar-panel-article .sp-result{
 background:#ffffff13;padding:13px;border-radius:8px
}
#solar-panel-article .sp-result small{display:block;color:#d0e4ff}
#solar-panel-article .sp-result strong{font-size:21px;color:#79f1ce}
#solar-panel-article .sp-faq details{
 padding:14px 16px;margin:10px 0;
 border:1px solid var(--sp-border);border-radius:9px;background:white
}
#solar-panel-article .sp-faq summary{
 color:#19375f;font-weight:700;cursor:pointer
}
#solar-panel-article .sp-faq details p{font-size:15px}
#solar-panel-article .sp-muted{font-size:13px;color:#718198}
#solar-panel-article .sp-footer{
 border-top:1px solid var(--sp-border);margin-top:30px;
 padding-top:15px;font-size:13px;color:#687990
}
@media(max-width:600px){
 #solar-panel-article{font-size:15px;line-height:1.75}
 #solar-panel-article .sp-hero{padding:22px 16px;border-radius:12px}
 #solar-panel-article .sp-grid{grid-template-columns:1fr}
 #solar-panel-article .sp-fields{grid-template-columns:1fr}
 #solar-panel-article .sp-flow{flex-direction:column}
 #solar-panel-article .sp-node{width:100%;max-width:230px;flex:none}
 #solar-panel-article .sp-arrow{transform:rotate(90deg)}
 #solar-panel-article .sp-result-grid{grid-template-columns:1fr 1fr}
 #solar-panel-article .sp-box{padding:14px}
}
@media(prefers-reduced-motion:reduce){
 #solar-panel-article .sp-particles,
 #solar-panel-article .sp-pulse{animation:none!important}
}
</style>



<p>A <strong>solar panel</strong> is an electrical device that converts sunlight directly into electrical energy using photovoltaic (PV) cells. These cells are made from semiconductor materials, commonly silicon, which generate electrical current when exposed to suitable light. Solar panels are widely used in residential rooftop systems, commercial buildings, agricultural installations, street lighting and large-scale solar power plants.</p>

<p>Solar photovoltaic technology provides a method of generating electricity without directly burning fuel during operation. The generated DC electricity can be used by DC loads, stored in batteries through suitable charging equipment, or converted into AC electricity using a solar inverter.</p>

<nav class="sp-toc">
<h3>Table of Contents</h3>
<ol>
<li><a href="#sp-definition">What Is a Solar Panel?</a></li>
<li><a href="#sp-construction">Construction and Components</a></li>
<li><a href="#sp-physics">Photovoltaic Effect and PN Junction</a></li>
<li><a href="#sp-working">Working Principle</a></li>
<li><a href="#sp-animation">Solar Panel Working Diagram</a></li>
<li><a href="#sp-types">Types of Solar Panels</a></li>
<li><a href="#sp-characteristics">I-V and P-V Characteristics</a></li>
<li><a href="#sp-connections">Series and Parallel Connections</a></li>
<li><a href="#sp-formulas">Important Formulas and Equations</a></li>
<li><a href="#sp-calculator">Solar Panel Calculator</a></li>
<li><a href="#sp-factors">Factors Affecting Performance</a></li>
<li><a href="#sp-advantages">Advantages and Disadvantages</a></li>
<li><a href="#sp-applications">Applications</a></li>
<li><a href="#sp-maintenance">Maintenance and Safety</a></li>
<li><a href="#sp-faq">Frequently Asked Questions</a></li>
<li><a href="#sp-conclusion">Conclusion</a></li>
</ol>
</nav>

<section id="sp-definition">
<h2>1. What Is a Solar Panel?</h2>

<p>A solar panel is an assembly of photovoltaic cells electrically connected and protected inside a module. Each photovoltaic cell converts a portion of incident solar radiation into DC electrical energy. Multiple cells are interconnected to obtain the required voltage and current.</p>

<p>A single silicon solar cell generally produces a relatively small voltage. Therefore, several cells are connected in series to form a module. Multiple modules can then be connected in series and parallel to form a solar array suitable for a particular electrical application.</p>

<p>The electrical output of a solar panel depends on solar irradiance, cell temperature, cell technology, shading, orientation and electrical loading.</p>

<div class="sp-note">
<strong>Important:</strong> A solar panel generates DC electricity. An inverter is required when the generated electricity must be converted into AC power for conventional AC appliances or grid connection.
</div>
</section>

<section id="sp-construction">
<h2>2. Construction and Main Components of a Solar Panel</h2>

<p>A typical crystalline silicon solar module consists of several layers that protect the photovoltaic cells and provide electrical and mechanical support.</p>

<div class="sp-grid">
 <div class="sp-card">
  <h3>1. Solar Cells</h3>
  <p>Semiconductor devices that convert sunlight into DC electricity through the photovoltaic effect.</p>
 </div>
 <div class="sp-card">
  <h3>2. Tempered Glass</h3>
  <p>Provides a transparent protective front surface and helps protect cells from environmental damage.</p>
 </div>
 <div class="sp-card">
  <h3>3. Encapsulant</h3>
  <p>Usually a polymer material such as EVA or POE that holds and protects the solar cells.</p>
 </div>
 <div class="sp-card">
  <h3>4. Backsheet</h3>
  <p>Provides electrical insulation and environmental protection in many glass-backsheet modules.</p>
 </div>
 <div class="sp-card">
  <h3>5. Aluminium Frame</h3>
  <p>Provides mechanical strength and supports module mounting.</p>
 </div>
 <div class="sp-card">
  <h3>6. Junction Box</h3>
  <p>Contains electrical connections and commonly includes bypass diodes for module protection.</p>
 </div>
 <div class="sp-card">
  <h3>7. Bypass Diodes</h3>
  <p>Provide an alternative current path around shaded or affected cell groups to reduce hot-spot risk.</p>
 </div>
 <div class="sp-card">
  <h3>8. Output Cables</h3>
  <p>Carry generated DC power from the module to the connected PV system.</p>
 </div>
</div>

<h3>Functions of Solar Panel Components</h3>
<div class="sp-table-wrap">
<table>
<thead><tr><th>Component</th><th>Function</th></tr></thead>
<tbody>
<tr><td>Photovoltaic cell</td><td>Converts light into electricity</td></tr>
<tr><td>Front glass</td><td>Protects the cells and transmits sunlight</td></tr>
<tr><td>Encapsulant</td><td>Protects and secures the cells</td></tr>
<tr><td>Backsheet</td><td>Electrical insulation and protection</td></tr>
<tr><td>Frame</td><td>Mechanical support</td></tr>
<tr><td>Junction box</td><td>Electrical connection and diode housing</td></tr>
<tr><td>Bypass diode</td><td>Provides an alternate current path</td></tr>
</tbody>
</table>
</div>

<h3>Basic Electrical Parameters of a Solar Panel</h3>
<div class="sp-table-wrap">
<table>
<thead><tr><th>Parameter</th><th>Meaning</th></tr></thead>
<tbody>
<tr><td>Voc</td><td>Open-circuit voltage</td></tr>
<tr><td>Isc</td><td>Short-circuit current</td></tr>
<tr><td>Vmp</td><td>Voltage at maximum power point</td></tr>
<tr><td>Imp</td><td>Current at maximum power point</td></tr>
<tr><td>Pmax</td><td>Maximum rated power</td></tr>
<tr><td>FF</td><td>Fill factor</td></tr>
<tr><td>Efficiency</td><td>Percentage of incident solar power converted into electrical power</td></tr>
</tbody>
</table>
</div>
</section>

<section id="sp-physics">
<h2>3. Photovoltaic Effect and PN Junction</h2>

<p>The photovoltaic effect is the physical process through which a semiconductor device generates an electrical voltage and current when exposed to light.</p>

<p>Most conventional solar cells use silicon, a semiconductor material with four valence electrons. The semiconductor is processed to form regions with different electrical properties, creating a PN junction.</p>

<h3>3.1 P-Type Semiconductor</h3>
<p>P-type silicon is formed by doping silicon with suitable acceptor impurities, such as boron. This creates holes as the majority charge carriers.</p>

<h3>3.2 N-Type Semiconductor</h3>
<p>N-type silicon is formed by doping silicon with donor impurities, such as phosphorus. Electrons become the majority charge carriers.</p>

<h3>3.3 Formation of PN Junction</h3>
<p>When P-type and N-type semiconductor regions are joined, electrons and holes diffuse across the junction and recombine. This produces a depletion region and an internal electric field.</p>

<h3>3.4 Generation of Electron-Hole Pairs</h3>
<p>When photons with sufficient energy are absorbed by the semiconductor, they can generate electron-hole pairs. The electric field in the depletion region helps separate these charge carriers, producing a photogenerated current when an external circuit is connected.</p>

<div class="sp-box">
<strong>Photon energy equation:</strong>
<div class="sp-equation">
\[
E=hf=\frac{hc}{\lambda}
\]
</div>
Where \(h\) is Planck&#8217;s constant, \(f\) is photon frequency, \(c\) is the speed of light and \(\lambda\) is wavelength.
</div>
</section>

<section id="sp-working">
<h2>4. Working Principle of Solar Panel</h2>

<p>A solar panel works on the photovoltaic effect. When sunlight falls on the semiconductor material of a solar cell, photons transfer energy to electrons. If the absorbed energy is sufficient, electron-hole pairs are generated. The internal electric field separates these charge carriers and produces a potential difference across the cell.</p>

<p>When an external electrical load is connected, current flows through the circuit and electrical power is delivered to the load.</p>

<h3>Step 1: Absorption of Sunlight</h3>
<p>Solar radiation reaches the surface of the solar cell. Some photons are reflected, some pass through the material, and others are absorbed. The absorbed photons can generate charge carriers.</p>

<h3>Step 2: Generation of Charge Carriers</h3>
<p>Photons with suitable energy generate electron-hole pairs within the semiconductor. The number of generated charge carriers depends on the incident irradiance and the properties of the semiconductor.</p>

<h3>Step 3: Separation of Charges</h3>
<p>The electric field near the PN junction separates electrons and holes. This separation helps establish a voltage across the solar cell terminals.</p>

<h3>Step 4: Flow of Electrical Current</h3>
<p>When a load is connected, electrons flow through the external circuit. Conventional current flows in the opposite direction to electron flow in the external conducting path.</p>

<h3>Step 5: Electrical Power Generation</h3>
<p>The solar cell supplies DC voltage and current to the load. Multiple cells connected together provide the voltage and current required by a solar module.</p>

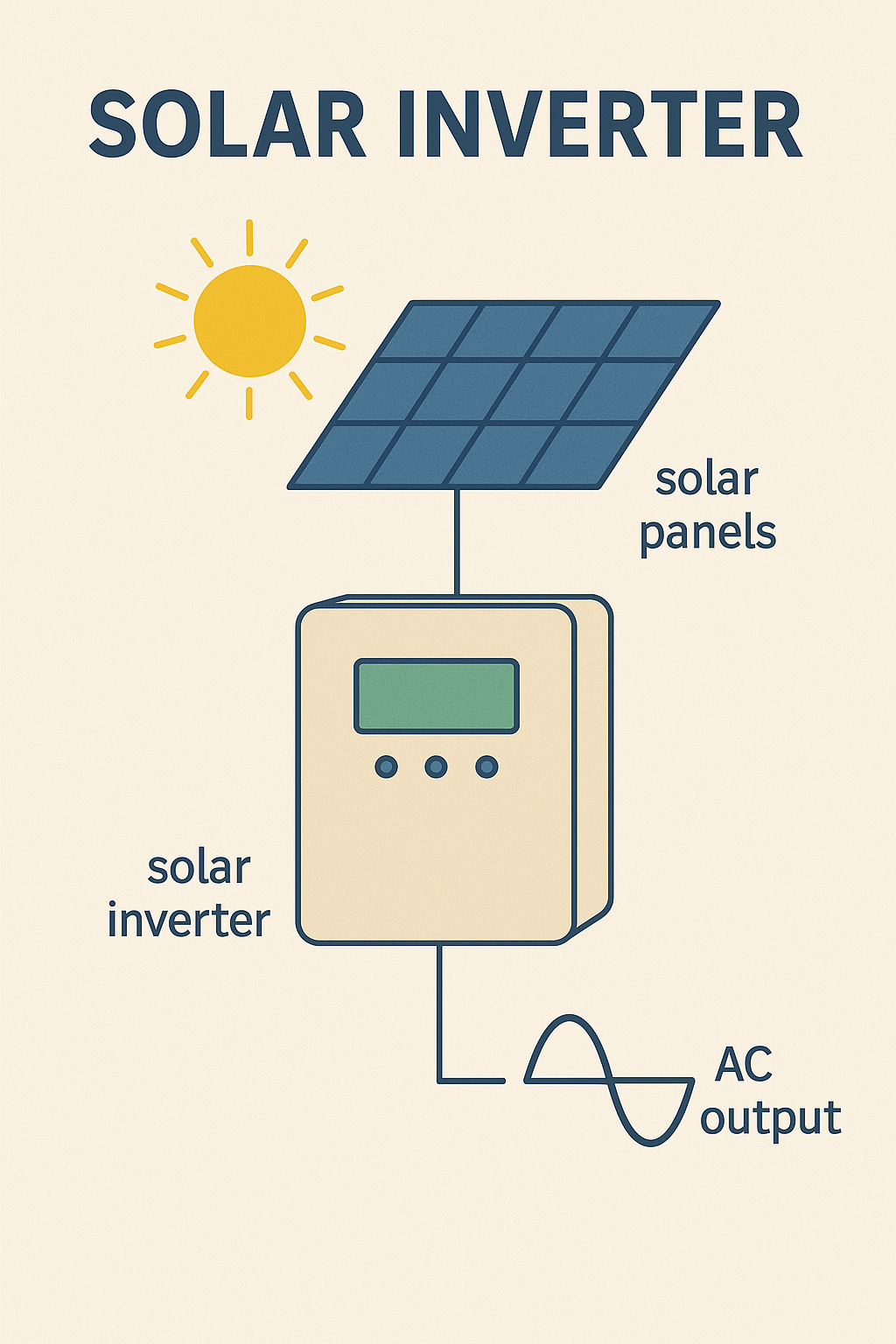

<h3>Step 6: Power Conversion and Storage</h3>
<p>The DC output can directly operate compatible DC equipment, charge a battery through a suitable charge controller, or feed an inverter for AC applications.</p>
</section>

<section id="sp-animation">
<h2>5. Solar Panel Working Diagram</h2>
<p>This diagram summarizes how sunlight is converted into electrical energy and delivered to a connected system.</p>

<div class="sp-diagram">
<h3>Solar Panel – Photovoltaic Energy Conversion</h3>
<p>Sunlight → Photovoltaic Cell → DC Output → Power Controller → Electrical Load</p>

<div class="sp-flow">
 <div class="sp-node">
  <span class="sp-icon"><img src="https://s.w.org/images/core/emoji/17.0.2/72x72/2600.png" alt="☀" class="wp-smiley" style="height: 1em; max-height: 1em;" /></span>
  <strong>Sunlight</strong>
  <small>Solar Radiation</small>
 </div>
 <span class="sp-arrow">→</span>
 <div class="sp-node">
  <span class="sp-icon">▦</span>
  <strong>Solar Panel</strong>
  <small>PV Conversion</small>
 </div>
 <span class="sp-arrow">→</span>
 <div class="sp-node">
  <span class="sp-icon"><img src="https://s.w.org/images/core/emoji/17.0.2/72x72/26a1.png" alt="⚡" class="wp-smiley" style="height: 1em; max-height: 1em;" /></span>
  <strong>DC Output</strong>
  <small>Voltage and Current</small>
 </div>
 <span class="sp-arrow">→</span>
 <div class="sp-node">
  <span class="sp-icon"><img src="https://s.w.org/images/core/emoji/17.0.2/72x72/1f50b.png" alt="🔋" class="wp-smiley" style="height: 1em; max-height: 1em;" /></span>
  <strong>Controller</strong>
  <small>Control / Storage</small>
 </div>
 <span class="sp-arrow">→</span>
 <div class="sp-node">
  <span class="sp-icon"><img src="https://s.w.org/images/core/emoji/17.0.2/72x72/1f4a1.png" alt="💡" class="wp-smiley" style="height: 1em; max-height: 1em;" /></span>
  <strong>Electrical Load</strong>
  <small>Power Utilization</small>
 </div>
</div>

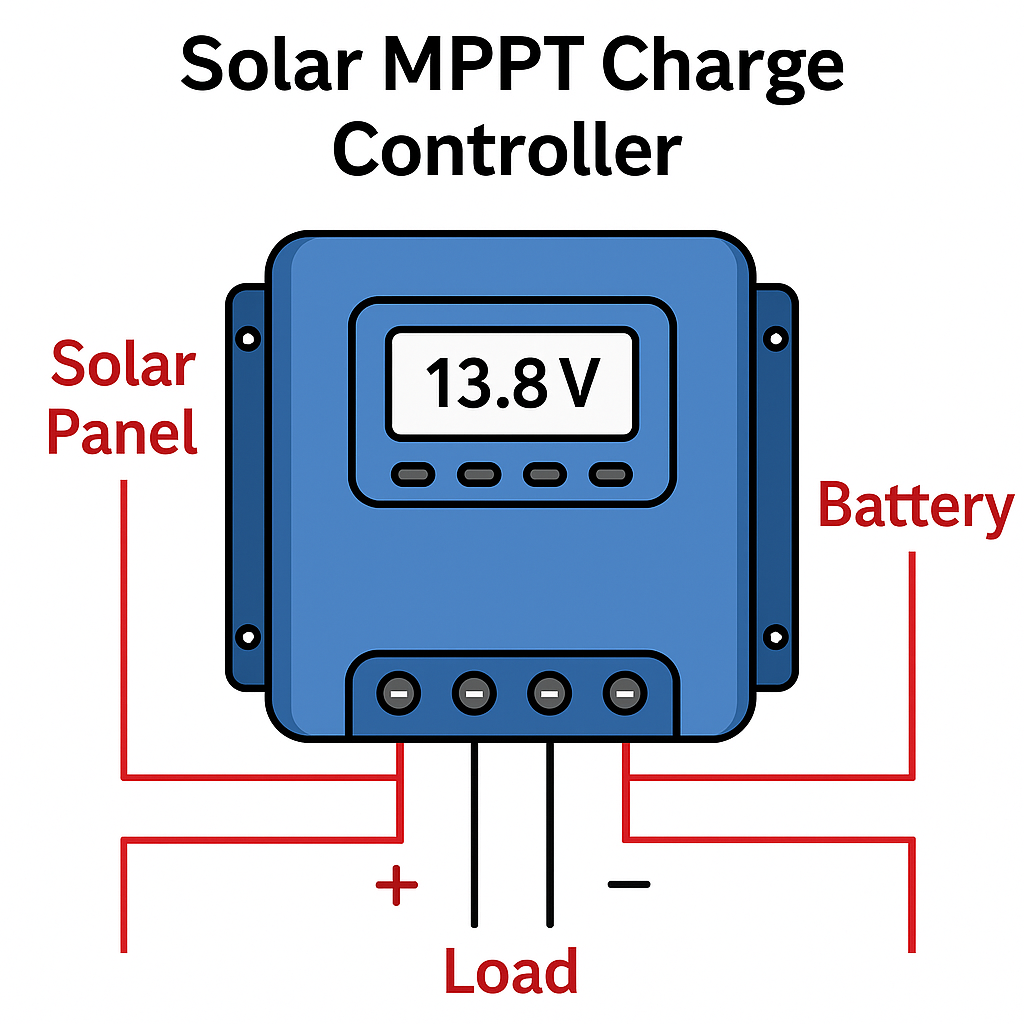

<p>The controller shown represents an application-dependent charge controller or power conversion stage. An inverter is added when AC output is required.</p>
</div>
<div class="sp-note">
<strong>Engineering note:</strong> A solar panel does not need a battery to generate electricity. A battery is an optional energy-storage component of the complete PV system.
</div>
</section>

<section id="sp-types">
<h2>6. Types of Solar Panels</h2>

<p>Solar panels are classified according to the photovoltaic cell technology and manufacturing method. Different technologies offer different efficiencies, costs and physical characteristics.</p>

<h3>6.1 Monocrystalline Solar Panel</h3>
<p>Monocrystalline panels use cells manufactured from single-crystal silicon wafers. They generally provide high conversion efficiency and good power density. Their appearance is commonly dark black, although the exact colour varies with cell design and module construction.</p>

<h3>6.2 Polycrystalline Solar Panel</h3>
<p>Polycrystalline panels use silicon cells made from multiple crystal grains. They traditionally offered a lower manufacturing cost but generally lower efficiency than comparable monocrystalline technologies. Their blue appearance is common.</p>

<h3>6.3 Thin-Film Solar Panel</h3>
<p>Thin-film panels use thin layers of photovoltaic materials deposited onto a suitable substrate. Technologies include cadmium telluride (CdTe) and certain forms of amorphous silicon. They can be lightweight or flexible depending on construction, but efficiency and application characteristics vary by technology.</p>

<h3>6.4 TOPCon Solar Panel</h3>
<p>Tunnel Oxide Passivated Contact (TOPCon) is a crystalline silicon cell architecture designed to reduce recombination losses and improve cell performance. It is used in many modern high-efficiency modules.</p>

<h3>6.5 Heterojunction Solar Panel</h3>
<p>Heterojunction technology combines crystalline silicon with thin amorphous silicon layers. The structure can provide effective surface passivation and high cell efficiency.</p>

<h3>Comparison of Solar Panel Types</h3>
<div class="sp-table-wrap">
<table>
<thead><tr><th>Type</th><th>Material / Structure</th><th>Key Characteristic</th></tr></thead>
<tbody>
<tr><td>Monocrystalline</td><td>Single-crystal silicon</td><td>High power density</td></tr>
<tr><td>Polycrystalline</td><td>Multi-crystalline silicon</td><td>Traditional crystalline technology</td></tr>
<tr><td>Thin-film</td><td>Thin semiconductor layers</td><td>Technology-dependent flexibility and form factor</td></tr>
<tr><td>TOPCon</td><td>Passivated-contact crystalline silicon</td><td>Reduced recombination losses</td></tr>
<tr><td>Heterojunction</td><td>Crystalline and amorphous silicon layers</td><td>Advanced surface passivation</td></tr>
</tbody>
</table>
</div>
</section>

<section id="sp-characteristics">
<h2>7. I-V and P-V Characteristics of Solar Panel</h2>

<p>The electrical performance of a photovoltaic module is represented by its current-voltage (I-V) and power-voltage (P-V) characteristics. These curves describe how the current, voltage and output power change with the electrical load.</p>

<h3>7.1 I-V Characteristics</h3>
<p>The I-V curve shows the relationship between output current and terminal voltage. At zero terminal voltage, the current is approximately the short-circuit current (Isc). At zero current, the terminal voltage reaches the open-circuit voltage (Voc).</p>

<p>Between these two operating conditions, there is a maximum power point where the product of current and voltage is highest.</p>

<h3>7.2 P-V Characteristics</h3>
<p>The P-V curve shows how electrical output power varies with voltage. Power rises as voltage increases, reaches a maximum value at the maximum power point, and then decreases toward zero at the open-circuit voltage.</p>

<h3>7.3 Maximum Power Point</h3>
<div class="sp-equation">
\[
P_{\mathrm{max}}=V_{\mathrm{mp}}\times I_{\mathrm{mp}}
\]
</div>
<p>Where \(V_{\mathrm{mp}}\) is the voltage and \(I_{\mathrm{mp}}\) is the current at the maximum power point.</p>

<h3>7.4 Fill Factor</h3>
<div class="sp-equation">
\[
FF=\frac{V_{\mathrm{mp}}I_{\mathrm{mp}}}{V_{\mathrm{oc}}I_{\mathrm{sc}}}
\]
</div>
<p>The fill factor indicates how effectively a solar cell&#8217;s I-V curve delivers power compared with the ideal rectangular area defined by open-circuit voltage and short-circuit current.</p>
</section>

<section id="sp-connections">
<h2>8. Series and Parallel Connection of Solar Panels</h2>

<p>Solar panels can be connected in series or parallel to obtain the required system voltage and current. Correct connection design is important for matching the solar array with the inverter or charge controller.</p>

<h3>8.1 Series Connection</h3>
<p>When solar panels are connected in series, the positive terminal of one module is connected to the negative terminal of the next module. The voltages add, while the same current flows through the series string under normal operation.</p>

<div class="sp-equation">
\[
V_{\mathrm{total}}=V_1+V_2+\cdots+V_n
\]
</div>
<div class="sp-equation">
\[
I_{\mathrm{string}}\approx I_{\mathrm{module}}
\]
</div>

<h3>8.2 Parallel Connection</h3>
<p>When solar panels are connected in parallel, positive terminals are connected together and negative terminals are connected together. The voltage remains approximately the same, while the currents add.</p>

<div class="sp-equation">
\[
I_{\mathrm{total}}=I_1+I_2+\cdots+I_n
\]
</div>
<div class="sp-equation">
\[
V_{\mathrm{array}}\approx V_{\mathrm{module}}
\]
</div>

<h3>Example of Series and Parallel Connection</h3>
<p>Consider four identical solar panels, each having a maximum power voltage of 40 V and maximum power current of 10 A.</p>
<div class="sp-table-wrap">
<table>
<thead><tr><th>Connection</th><th>Array Voltage</th><th>Array Current</th><th>Power</th></tr></thead>
<tbody>
<tr><td>4 in series</td><td>160 V</td><td>10 A</td><td>1600 W</td></tr>
<tr><td>4 in parallel</td><td>40 V</td><td>40 A</td><td>1600 W</td></tr>
<tr><td>2 series × 2 parallel</td><td>80 V</td><td>20 A</td><td>1600 W</td></tr>
</tbody>
</table>
</div>
<div class="sp-warning">
Actual string design must check cold-weather open-circuit voltage, hot-weather operating voltage, inverter MPPT limits, maximum input current and module compatibility. These simplified calculations do not replace a PV system design.
</div>
</section>

<section id="sp-formulas">
<h2>9. Important Solar Panel Formulas and Equations</h2>

<h3>9.1 Electrical Power</h3>
<div class="sp-equation">
\[
P=V\times I
\]
</div>
<p>Electrical power is the product of voltage and current. Power is measured in watts.</p>

<h3>9.2 Solar Panel Maximum Power</h3>
<div class="sp-equation">
\[
P_{\mathrm{max}}=V_{\mathrm{mp}}\times I_{\mathrm{mp}}
\]
</div>

<h3>9.3 Solar Panel Efficiency</h3>
<div class="sp-equation">
\[
\eta=\frac{P_{\mathrm{max}}}{G\times A}\times100
\]
</div>
<p>Where \(G\) is solar irradiance in W/m² and \(A\) is the module area in m².</p>

<h3>9.4 Fill Factor</h3>
<div class="sp-equation">
\[
FF=\frac{V_{\mathrm{mp}}I_{\mathrm{mp}}}
{V_{\mathrm{oc}}I_{\mathrm{sc}}}
\]
</div>

<h3>9.5 Daily Solar Energy</h3>
<div class="sp-equation">
\[
E=P_{\mathrm{rated}}\times H
\]
</div>
<p>Where \(H\) is the equivalent peak sun hours per day. This estimates ideal daily energy before system losses.</p>

<h3>9.6 Practical Energy Output</h3>
<div class="sp-equation">
\[
E_{\mathrm{daily}}=P_{\mathrm{rated}}\times H\times PR
\]
</div>
<p>Here \(PR\) is the performance ratio, expressed as a decimal, accounting approximately for system losses under the chosen assessment method.</p>

<h3>9.7 Number of Solar Panels</h3>
<div class="sp-equation">
\[
N=\frac{P_{\mathrm{system}}}{P_{\mathrm{panel}}}
\]
</div>
<p>The result must be rounded up to a whole number, followed by electrical compatibility checks.</p>

<h3>9.8 Current from Power</h3>
<div class="sp-equation">
\[
I=\frac{P}{V}
\]
</div>

<h3>9.9 Series Panel Voltage</h3>
<div class="sp-equation">
\[
V_{\mathrm{array}}=N_s\times V_{\mathrm{mp}}
\]
</div>

<h3>9.10 Parallel Panel Current</h3>
<div class="sp-equation">
\[
I_{\mathrm{array}}=N_p\times I_{\mathrm{mp}}
\]
</div>

<h3>9.11 Photon Energy</h3>
<div class="sp-equation">
\[
E=hf=\frac{hc}{\lambda}
\]
</div>

<h3>9.12 Temperature Effect on Voltage</h3>
<p>A simplified approximation of module voltage change with temperature is:</p>
<div class="sp-equation">
\[
V_T=V_{\mathrm{ref}}\left[1+\beta_V(T-T_{\mathrm{ref}})\right]
\]
</div>
<p>Here \(\beta_V\) is the voltage temperature coefficient expressed per degree Celsius. Use the manufacturer&#8217;s coefficient and the correct reference conditions.</p>
</section>

<section id="sp-calculator">
<div class="sp-calculator">
<h2>10. Solar Panel Power and Efficiency Calculator</h2>
<p>Enter the electrical ratings, number of panels and module area to calculate total array power, voltage, current and approximate module efficiency.</p>

<div class="sp-fields">
 <div class="sp-field">
  <label for="sp-vmp">Panel Vmp (Volts)</label>
  <input id="sp-vmp" type="number" min="0.01" step="any" value="40">
 </div>
 <div class="sp-field">
  <label for="sp-imp">Panel Imp (Amperes)</label>
  <input id="sp-imp" type="number" min="0.01" step="any" value="10">
 </div>
 <div class="sp-field">
  <label for="sp-series">Panels in Series</label>
  <input id="sp-series" type="number" min="1" step="1" value="2">
 </div>
 <div class="sp-field">
  <label for="sp-parallel">Parallel Strings</label>
  <input id="sp-parallel" type="number" min="1" step="1" value="2">
 </div>
 <div class="sp-field">
  <label for="sp-area">Area per Panel (m²)</label>
  <input id="sp-area" type="number" min="0.01" step="any" value="2">
 </div>
 <div class="sp-field">
  <label for="sp-irradiance">Solar Irradiance (W/m²)</label>
  <input id="sp-irradiance" type="number" min="1" step="any" value="1000">
 </div>
</div>

<button type="button" id="sp-calculate" style="margin-top:17px;background:#24c99c;color:#12334f">
Calculate Solar Power
</button>

<div class="sp-results" aria-live="polite">
<h3 style="color:white">Calculated Results</h3>
<div class="sp-result-grid">
 <div class="sp-result">
  <small>Panel Rated Power</small>
  <strong id="sp-panel-power">400 W</strong>
 </div>
 <div class="sp-result">
  <small>Total Array Power</small>
  <strong id="sp-array-power">1600 W</strong>
 </div>
 <div class="sp-result">
  <small>Array Voltage (Vmp)</small>
  <strong id="sp-array-voltage">80 V</strong>
 </div>
 <div class="sp-result">
  <small>Array Current (Imp)</small>
  <strong id="sp-array-current">20 A</strong>
 </div>
 <div class="sp-result">
  <small>Total Panel Count</small>
  <strong id="sp-total-panels">4</strong>
 </div>
 <div class="sp-result">
  <small>Approx. Module Efficiency</small>
  <strong id="sp-module-efficiency">20%</strong>
 </div>
</div>
<p id="sp-calc-message" style="font-size:12px;color:#d5e8ff">
Illustrative calculation using the entered maximum power ratings and irradiance.
</p>
</div>
</div>
</section>

<section id="sp-factors">
<h2>11. Factors Affecting Solar Panel Performance</h2>

<h3>11.1 Solar Irradiance</h3>
<p>Solar irradiance is the solar power received per unit area. It is commonly measured in watts per square metre. Higher irradiance generally increases photovoltaic current and available power, within the operating limits of the module.</p>

<h3>11.2 Temperature</h3>
<p>Solar cell temperature affects voltage, current and maximum output power. For common crystalline silicon modules, increasing cell temperature generally reduces voltage and maximum power. The exact temperature response depends on the module specifications.</p>

<h3>11.3 Shading</h3>
<p>Shading from trees, buildings, dust or nearby structures can reduce output. Since cells in a series-connected string interact electrically, even partial shading can have a significant effect on string performance. Bypass diodes help reduce some shading-related problems.</p>

<h3>11.4 Panel Orientation and Tilt</h3>
<p>Panel orientation and tilt influence how much solar radiation reaches the module surface. The optimum arrangement depends on geographic location, installation geometry and whether seasonal or annual energy production is the priority.</p>

<h3>11.5 Dust and Dirt</h3>
<p>Dust accumulation reduces the sunlight reaching the cells and can lower energy production. Cleaning frequency should be based on local environmental conditions and manufacturer recommendations.</p>

<h3>11.6 Electrical Mismatch</h3>
<p>Differences between modules, wiring losses and poor electrical connections can reduce array performance. Proper string design and compatible modules help minimize these losses.</p>
</section>

<section id="sp-advantages">
<h2>12. Advantages of Solar Panels</h2>
<ul>
<li><strong>Renewable energy:</strong> Uses sunlight as an energy source.</li>
<li><strong>Reduced grid consumption:</strong> Can reduce purchased electricity when generation is used locally.</li>
<li><strong>Low operating emissions:</strong> Produces electricity without direct combustion during operation.</li>
<li><strong>Modular construction:</strong> Systems can be expanded by adding compatible modules.</li>
<li><strong>Wide applications:</strong> Suitable for residential, commercial, agricultural and utility-scale projects.</li>
<li><strong>Low routine maintenance:</strong> Generally requires limited routine maintenance compared with many mechanical generation systems.</li>
<li><strong>Battery integration:</strong> Can be combined with suitable storage equipment.</li>
</ul>

<h2>13. Disadvantages of Solar Panels</h2>
<ul>
<li><strong>Weather dependence:</strong> Output changes with sunlight and weather conditions.</li>
<li><strong>Initial investment:</strong> Equipment and installation require upfront expenditure.</li>
<li><strong>Space requirements:</strong> Larger systems require suitable installation area.</li>
<li><strong>Intermittent generation:</strong> Output varies during the day and falls to zero at night.</li>
<li><strong>Shading sensitivity:</strong> Partial shading can reduce array output.</li>
<li><strong>End-of-life management:</strong> Panels need suitable recycling and disposal arrangements.</li>
<li><strong>System losses:</strong> Inverters, cables, temperature and other factors reduce usable energy.</li>
</ul>
</section>

<section id="sp-applications">
<h2>14. Applications of Solar Panels</h2>
<div class="sp-grid">
 <div class="sp-card"><h3>Residential Rooftops</h3><p>Generate electricity for houses, lighting, fans and appliances.</p></div>
 <div class="sp-card"><h3>Commercial Buildings</h3><p>Supply solar energy to offices, shops, educational buildings and commercial facilities.</p></div>
 <div class="sp-card"><h3>Agriculture</h3><p>Power solar water pumping systems and selected farm electrical loads.</p></div>
 <div class="sp-card"><h3>Street Lighting</h3><p>Charge batteries for standalone solar street lights.</p></div>
 <div class="sp-card"><h3>Remote Electrification</h3><p>Provide electricity to remote locations with limited grid access.</p></div>
 <div class="sp-card"><h3>Solar Power Plants</h3><p>Generate electricity at utility scale for grid-connected supply.</p></div>
</div>
</section>

<section id="sp-maintenance">
<h2>15. Solar Panel Maintenance and Safety</h2>

<p>Solar panels are generally durable, but regular inspection helps maintain performance and identify damage. Maintenance should follow the module manufacturer&#8217;s instructions and the installation&#8217;s safety procedures.</p>

<ul>
<li>Inspect panels periodically for cracks, damage and visible defects.</li>
<li>Remove accumulated dirt using suitable cleaning methods.</li>
<li>Check for shading caused by growing trees or new structures.</li>
<li>Inspect mounting structures for corrosion or looseness.</li>
<li>Monitor system generation and compare it with expected performance.</li>
<li>Have electrical connectors and wiring checked by qualified personnel.</li>
<li>Inspect junction boxes and other electrical equipment for signs of damage.</li>
</ul>

<div class="sp-warning">
<strong>Electrical safety:</strong> Solar panels can generate dangerous DC voltage whenever exposed to light. Never disconnect live PV connectors or touch exposed conductors. Isolation, testing, installation and repair must be carried out by trained professionals using suitable equipment and safety procedures.
</div>
</section>

<section id="sp-faq" class="sp-faq">
<h2>16. Frequently Asked Questions (FAQs)</h2>

<details>
<summary>1. What is a solar panel?</summary>
<p>A solar panel is an assembly of photovoltaic cells that converts sunlight directly into DC electrical energy through the photovoltaic effect.</p>
</details>

<details>
<summary>2. What is the working principle of a solar panel?</summary>
<p>It works on the photovoltaic effect. Absorbed photons generate electron-hole pairs in the semiconductor, and the internal electric field separates the charges to produce electrical power.</p>
</details>

<details>
<summary>3. What is the photovoltaic effect?</summary>
<p>The photovoltaic effect is the generation of electrical voltage and current in a material when it absorbs suitable light energy.</p>
</details>

<details>
<summary>4. What are the main components of a solar panel?</summary>
<p>Common components include photovoltaic cells, front glass, encapsulant, backsheet or rear glass, frame, junction box, bypass diodes and output cables.</p>
</details>

<details>
<summary>5. What are the different types of solar panels?</summary>
<p>Common technologies include monocrystalline, polycrystalline and thin-film panels. Advanced crystalline silicon architectures include TOPCon and heterojunction.</p>
</details>

<details>
<summary>6. What is the difference between Voc and Isc?</summary>
<p>Voc is the voltage measured when the panel terminals are open and no current is drawn. Isc is the current measured under short-circuit conditions when terminal voltage is approximately zero.</p>
</details>

<details>
<summary>7. What is the maximum power point?</summary>
<p>The maximum power point is the operating voltage and current at which the product of voltage and current reaches the maximum value under the prevailing conditions.</p>
</details>

<details>
<summary>8. What is the efficiency of a solar panel?</summary>
<p>Module efficiency is the ratio of maximum electrical output power to incident solar power on the module area, expressed as a percentage.</p>
</details>

<details>
<summary>9. What happens when solar panels are connected in series?</summary>
<p>Their voltages add, while the string current is approximately limited by the current of the series-connected modules.</p>
</details>

<details>
<summary>10. What happens when solar panels are connected in parallel?</summary>
<p>Their currents add while the array voltage remains approximately equal to the voltage of an individual parallel-connected string.</p>
</details>

<details>
<summary>11. Do solar panels generate electricity on cloudy days?</summary>
<p>Yes. Solar panels can generate electricity from diffuse sunlight, but their output is generally lower than under strong direct sunlight.</p>
</details>

<details>
<summary>12. Does a solar panel generate AC or DC electricity?</summary>
<p>A photovoltaic panel generates DC electricity. An inverter converts that DC power into AC electricity when required.</p>
</details>

<details>
<summary>13. What is the function of a bypass diode?</summary>
<p>A bypass diode provides an alternate current path around a shaded or affected group of cells, helping reduce power loss and hot-spot risk.</p>
</details>

<details>
<summary>14. What is the difference between a solar cell and a solar panel?</summary>
<p>A solar cell is an individual photovoltaic device. A solar panel or module consists of multiple interconnected solar cells packaged together.</p>
</details>

<details>
<summary>15. What factors affect solar panel output?</summary>
<p>Important factors include irradiance, cell temperature, shading, orientation, tilt, dust, electrical mismatch and system losses.</p>
</details>
</section>

<section id="sp-conclusion">
<h2>17. Conclusion</h2>

<p>A solar panel is an important component of photovoltaic power generation. It converts solar radiation into electrical energy using semiconductor materials and the photovoltaic effect. Its performance depends on cell technology, irradiance, temperature, electrical loading and installation conditions.</p>

<p>Understanding solar panel construction, PN junction operation, I-V characteristics, maximum power point, series-parallel connections and electrical equations is essential for electrical engineering students and solar system professionals.</p>

<p>Solar panels can be integrated into residential, commercial, agricultural and utility-scale installations. When properly designed and maintained, photovoltaic systems provide a practical way to generate electricity from renewable solar energy.</p>
</section>

<section>
<h2>References and Further Reading</h2>
<ul>
<li><a href="https://www.energy.gov/cmei/systems/solar-photovoltaic-technology-basics" target="_blank" rel="noopener">U.S. Department of Energy – Solar Photovoltaic Technology Basics</a></li>
<li><a href="https://www.nrel.gov/pv/" target="_blank" rel="noopener">National Renewable Energy Laboratory – Photovoltaics Research</a></li>
<li><a href="https://www.nrel.gov/pv/cell-efficiency.html" target="_blank" rel="noopener">NREL – Best Research-Cell Efficiency Chart</a></li>
<li><a href="https://www.pveducation.org/" target="_blank" rel="noopener">PV Education – Solar Cell Theory and Photovoltaic Fundamentals</a></li>
<li><a href="https://www.iea-pvps.org/" target="_blank" rel="noopener">IEA Photovoltaic Power Systems Programme</a></li>
</ul>
</section>

<div class="sp-footer">
<strong>Educational disclaimer:</strong> This article explains general photovoltaic principles. Actual module performance and system design must be based on manufacturer datasheets, site conditions and applicable electrical standards.
</div>

</div>

<!-- LATEX / MATHJAX -->
<script>
(function(){
 if(window.MathJax){
  if(window.MathJax.typesetPromise){
   window.MathJax.typesetPromise([
    document.getElementById('solar-panel-article')
   ]);
  }
  return;
 }

 window.MathJax={
  tex:{
   inlineMath:[['\\(','\\)']],
   displayMath:[['\\[','\\]']],
   processEscapes:true
  },
  options:{
   skipHtmlTags:['script','noscript','style','textarea','pre','code']
  },
  startup:{typeset:false}
 };

 var script=document.createElement('script');
 script.src='https://cdn.jsdelivr.net/npm/mathjax@3/es5/tex-chtml.js';
 script.async=true;
 script.onload=function(){
  if(window.MathJax && window.MathJax.typesetPromise){
   window.MathJax.typesetPromise([
    document.getElementById('solar-panel-article')
   ]);
  }
 };
 document.head.appendChild(script);
})();
</script>

<!-- SOLAR PANEL JAVASCRIPT -->
<script>
(function(){
 const root=document.getElementById('solar-panel-article');
 if(!root || root.dataset.initialized==='yes')return;
 root.dataset.initialized='yes';


 // Calculator
 const field=function(id){
  return root.querySelector('#'+id);
 };

 const calculate=function(){
  const vmp=parseFloat(field('sp-vmp').value);
  const imp=parseFloat(field('sp-imp').value);
  const series=parseInt(field('sp-series').value,10);
  const parallel=parseInt(field('sp-parallel').value,10);
  const area=parseFloat(field('sp-area').value);
  const irradiance=parseFloat(field('sp-irradiance').value);
  const message=field('sp-calc-message');

  if(!Number.isFinite(vmp)||!Number.isFinite(imp)||
     !Number.isFinite(series)||!Number.isFinite(parallel)||
     !Number.isFinite(area)||!Number.isFinite(irradiance)||
     vmp<=0||imp<=0||series<1||parallel<1||
     area<=0||irradiance<=0||
     !Number.isInteger(series)||!Number.isInteger(parallel)){
   message.textContent='Please enter valid positive values. Panel counts must be whole numbers.';
   return;
  }

  const panelPower=vmp*imp;
  const total=series*parallel;
  const arrayPower=panelPower*total;
  const arrayVoltage=vmp*series;
  const arrayCurrent=imp*parallel;
  const efficiency=(panelPower/(irradiance*area))*100;

  field('sp-panel-power').textContent=panelPower.toFixed(2)+' W';
  field('sp-array-power').textContent=arrayPower.toFixed(2)+' W';
  field('sp-array-voltage').textContent=arrayVoltage.toFixed(2)+' V';
  field('sp-array-current').textContent=arrayCurrent.toFixed(2)+' A';
  field('sp-total-panels').textContent=String(total);
  field('sp-module-efficiency').textContent=efficiency.toFixed(2)+'%';

  message.textContent=efficiency>100
   ?'Calculated efficiency exceeds 100%. Check your panel ratings, area and irradiance inputs.'
   :'Calculation completed using maximum power ratings. Actual output varies with temperature, irradiance, shading and system losses.';
 };

 const button=field('sp-calculate');
 if(button)button.addEventListener('click',calculate);

 ['sp-vmp','sp-imp','sp-series','sp-parallel','sp-area','sp-irradiance'].forEach(function(id){
  const el=field(id);
  if(el){
   el.addEventListener('keydown',function(e){
    if(e.key==='Enter')calculate();
   });
  }
 });
})();
</script>
<p>The post <a href="https://howelectrical.com/solar-panel/">Solar Panel – Working Principle, Construction, Types and Applications</a> appeared first on <a href="https://howelectrical.com">Electrical and Electronics Blog</a>.</p>
]]></content:encoded>

					<wfw:commentRss>https://howelectrical.com/solar-panel/feed/</wfw:commentRss>
			<slash:comments>0</slash:comments>


			</item>
		<item>
		<title>Current Calculator – Calculate Amps from Watts &#038; Volts</title>
		<link>https://howelectrical.com/current-calculator/</link>
					<comments>https://howelectrical.com/current-calculator/#respond</comments>

		<dc:creator><![CDATA[admin]]></dc:creator>
		<pubDate>Mon, 09 Nov 2026 12:35:39 +0000</pubDate>
				<category><![CDATA[Basic Electrical]]></category>
		<guid isPermaLink="false">https://howelectrical.com/?p=5001</guid>

					<description><![CDATA[<p>Calculate electrical current from power and voltage with this easy-to-use current calculator. Learn the formula and explore practical examples.</p>
<p>The post <a href="https://howelectrical.com/current-calculator/">Current Calculator – Calculate Amps from Watts &amp; Volts</a> appeared first on <a href="https://howelectrical.com">Electrical and Electronics Blog</a>.</p>
]]></description>
										<content:encoded><![CDATA[
<div id="he-current-tool">

<style>
/* =========================================================
   HOWELECTRICAL - CURRENT CALCULATOR
   Scoped styling only. HTML and JavaScript remain unchanged.
   ========================================================= */
#he-current-tool{
  --he-primary:#2563eb;
  --he-primary-dark:#1d4ed8;
  --he-ink:#172554;
  --he-text:#475569;
  --he-muted:#64748b;
  --he-border:#dbe4f0;
  --he-soft:#eff6ff;
  --he-surface:#ffffff;
  font-family:Inter,Arial,Helvetica,sans-serif;
  color:var(--he-text);
  line-height:1.75;
  width:100%;
  max-width:100%;
  margin:0 auto;
  overflow-wrap:anywhere;
}
#he-current-tool,
#he-current-tool *{box-sizing:border-box}
#he-current-tool .he-hero{
  position:relative;
  overflow:hidden;
  isolation:isolate;
  background:linear-gradient(125deg,#102a56 0%,#174ea6 52%,#2878ed 100%);
  color:#fff;
  padding:clamp(24px,4vw,42px);
  border:1px solid rgba(255,255,255,.14);
  border-radius:20px;
  margin:0 0 28px;
  box-shadow:0 14px 34px rgba(23,78,166,.18);
}
#he-current-tool .he-hero:after{
  content:"";
  position:absolute;
  z-index:-1;
  width:230px;height:230px;
  right:-75px;top:-105px;
  border:34px solid rgba(255,255,255,.09);
  border-radius:50%;
}
#he-current-tool .he-hero h2{
  color:#fff;
  font-size:clamp(24px,3vw,32px);
  line-height:1.25;
  font-weight:800;
  letter-spacing:-.5px;
  margin:0 0 12px;
  padding:0;
  border:0;
}
#he-current-tool .he-hero p{
  max-width:760px;
  color:#eaf2ff;
  font-size:16px;
  line-height:1.75;
  margin:0;
}
#he-current-tool .he-content{color:var(--he-text)}
#he-current-tool .he-content h2{
  color:var(--he-ink);
  font-size:clamp(22px,2.5vw,28px);
  line-height:1.35;
  font-weight:800;
  letter-spacing:-.35px;
  margin:42px 0 16px;
  padding:0 0 11px;
  border-bottom:2px solid #e5edf8;
}
#he-current-tool .he-content h3{
  color:#1e40af;
  font-size:20px;
  line-height:1.45;
  font-weight:750;
  margin:28px 0 10px;
}
#he-current-tool .he-content p{
  color:#475569;
  font-size:16px;
  line-height:1.85;
  margin:14px 0;
}
#he-current-tool .he-content ul,
#he-current-tool .he-content ol{
  padding-left:26px;
  margin:16px 0 20px;
}
#he-current-tool .he-content li{
  color:#475569;
  line-height:1.8;
  margin:8px 0;
  padding-left:3px;
}
#he-current-tool .he-card{
  background:#fff;
  border:1px solid var(--he-border);
  border-radius:16px;
  padding:22px;
  margin:20px 0;
  box-shadow:0 5px 18px rgba(15,23,42,.045);
}
#he-current-tool .he-grid{
  display:grid;
  grid-template-columns:repeat(2,minmax(0,1fr));
  gap:18px;
}
#he-current-tool .he-field{min-width:0}
#he-current-tool label{
  display:block;
  color:#26364b;
  font-size:14px;
  font-weight:750;
  margin:0 0 7px;
}
#he-current-tool input,
#he-current-tool select{
  display:block;
  width:100%;
  min-width:0;
  min-height:49px;
  padding:11px 13px;
  border:1px solid #cbd5e1;
  border-radius:10px;
  background:#fff;
  color:#172554;
  font:inherit;
  font-size:16px;
  line-height:1.4;
  box-shadow:0 1px 2px rgba(15,23,42,.025);
  transition:border-color .18s ease,box-shadow .18s ease;
}
#he-current-tool input:focus,
#he-current-tool select:focus{
  outline:0;
  border-color:#3b82f6;
  box-shadow:0 0 0 4px rgba(59,130,246,.13);
}
#he-current-tool input::placeholder{color:#94a3b8}
#he-current-tool .he-hint{
  color:var(--he-muted);
  font-size:12px;
  line-height:1.5;
  margin-top:6px;
}
#he-current-tool .he-buttons{
  display:flex;
  flex-wrap:wrap;
  gap:11px;
  margin-top:22px;
}
#he-current-tool button{
  appearance:none;
  border:1px solid transparent;
  border-radius:10px;
  background:linear-gradient(135deg,#2563eb,#1d4ed8);
  color:#fff;
  padding:13px 21px;
  min-height:47px;
  font:inherit;
  font-size:15px;
  font-weight:750;
  line-height:1.3;
  cursor:pointer;
  box-shadow:0 4px 10px rgba(37,99,235,.16);
  transition:transform .18s ease,box-shadow .18s ease,background .18s ease;
}
#he-current-tool button:hover{
  background:linear-gradient(135deg,#1d4ed8,#1e40af);
  box-shadow:0 6px 15px rgba(37,99,235,.22);
  transform:translateY(-1px);
}
#he-current-tool button:active{transform:translateY(0)}
#he-current-tool button:focus-visible{
  outline:3px solid #93c5fd;
  outline-offset:3px;
}
#he-current-tool button.he-secondary{
  background:#eef2f7;
  color:#26364b;
  border-color:#dbe3ed;
  box-shadow:none;
}
#he-current-tool button.he-secondary:hover{background:#e2e8f0}
#he-current-tool .he-result{
  display:none;
  background:linear-gradient(145deg,#eff6ff,#f8fbff);
  border:1px solid #bfdbfe;
  border-radius:15px;
  padding:22px;
  margin-top:22px;
}
#he-current-tool .he-result-value{
  color:#1d4ed8;
  font-size:clamp(30px,5vw,42px);
  font-weight:850;
  line-height:1.25;
  overflow-wrap:anywhere;
}
#he-current-tool .he-result small{color:#64748b}
#he-current-tool .he-detail{
  background:#fff;
  border:1px solid #dbeafe;
  border-radius:11px;
  padding:15px 16px;
  margin-top:13px;
}
#he-current-tool .he-error{
  color:#b91c1c;
  background:#fef2f2;
  border:1px solid #fecaca;
  border-radius:9px;
  padding:10px 13px;
  font-weight:650;
  margin-top:12px;
}
#he-current-tool .he-success{color:#15803d;font-weight:700;margin-top:10px}
#he-current-tool table{
  width:100%;
  border-collapse:separate;
  border-spacing:0;
  margin:22px 0;
  font-size:15px;
  background:#fff;
  border:1px solid var(--he-border);
  border-radius:12px;
  overflow:hidden;
}
#he-current-tool th,
#he-current-tool td{
  padding:12px 14px;
  border:0;
  border-bottom:1px solid var(--he-border);
  text-align:left;
  vertical-align:top;
}
#he-current-tool th{
  background:#1d4ed8;
  color:#fff;
  font-weight:750;
}
#he-current-tool tbody tr:nth-child(even){background:#f7faff}
#he-current-tool tbody tr:last-child td{border-bottom:0}
#he-current-tool .he-equation{
  background:#eff6ff;
  border:1px solid #cfe0ff;
  border-left:5px solid #2563eb;
  border-radius:11px;
  padding:16px 19px;
  margin:18px 0;
  color:#173b7a;
  font-weight:650;
  overflow-x:auto;
}
#he-current-tool .he-note{
  background:#fffbeb;
  border:1px solid #f5d98c;
  border-left:5px solid #f59e0b;
  border-radius:11px;
  padding:16px 19px;
  margin:20px 0;
  color:#754c08;
}
#he-current-tool .he-faq{
  background:#f8faff;
  border:1px solid #e1eafa;
  border-radius:12px;
  padding:17px 19px;
  margin:13px 0;
  transition:border-color .18s ease,box-shadow .18s ease;
}
#he-current-tool .he-faq:hover{
  border-color:#c8d9f5;
  box-shadow:0 4px 13px rgba(15,23,42,.035);
}
#he-current-tool .he-faq h3{
  color:#173b7a;
  font-size:18px;
  margin:0 0 8px;
}
#he-current-tool .he-faq p{margin:0}
@media(max-width:700px){
  #he-current-tool .he-hero{border-radius:15px;margin-bottom:22px}
  #he-current-tool .he-content h2{margin-top:34px}
  #he-current-tool table{display:block;max-width:100%;overflow-x:auto;white-space:nowrap}
}
@media(max-width:600px){
  #he-current-tool .he-grid{grid-template-columns:1fr;gap:15px}
  #he-current-tool .he-card{padding:16px}
  #he-current-tool .he-hero{padding:24px 18px}
  #he-current-tool .he-hero p{font-size:15px}
  #he-current-tool .he-content h2{font-size:22px;margin-top:31px}
  #he-current-tool .he-content h3{font-size:18px;margin-top:23px}
  #he-current-tool .he-content p{font-size:15px}
  #he-current-tool .he-content li{font-size:15px}
  #he-current-tool .he-equation,
  #he-current-tool .he-note{padding:14px}
  #he-current-tool .he-faq{padding:15px}
  #he-current-tool .he-buttons{gap:9px}
  #he-current-tool .he-buttons button{flex:1 1 145px}
  #he-current-tool .he-result{padding:17px}
}
@media(max-width:380px){
  #he-current-tool .he-buttons button{flex:1 1 100%;width:100%}
  #he-current-tool .he-hero h2{font-size:22px}
}
/* Calculator-specific styling */
#he-current-calculator-v2{
  --hc-primary:#2563eb;
  max-width:850px;
  width:100%;
  margin:28px auto;
  color:#26364b;
  font-family:Inter,Arial,Helvetica,sans-serif;
  line-height:1.6;
}
#he-current-calculator-v2,
#he-current-calculator-v2 *{box-sizing:border-box}
#he-current-calculator-v2 .hc-panel{
  background:#fff;
  border:1px solid #dbe4f0;
  padding:clamp(17px,3vw,28px);
  border-radius:18px;
  box-shadow:0 10px 30px rgba(15,23,42,.075);
}
#he-current-calculator-v2 .hc-panel>h3{
  color:#172554;
  font-size:clamp(21px,2.5vw,24px);
  line-height:1.35;
  font-weight:850;
  margin:0 0 23px;
  padding:0 0 14px;
  border-bottom:2px solid #eaf0fa;
}
#he-current-calculator-v2 .hc-grid{
  display:grid;
  grid-template-columns:repeat(2,minmax(0,1fr));
  gap:19px;
}
#he-current-calculator-v2 .hc-field{min-width:0}
#he-current-calculator-v2 label{
  display:block;
  color:#26364b;
  font-size:14px;
  font-weight:750;
  margin:0 0 7px;
}
#he-current-calculator-v2 input,
#he-current-calculator-v2 select{
  display:block;
  width:100%;
  min-width:0;
  min-height:49px;
  padding:11px 13px;
  border:1px solid #cbd5e1;
  border-radius:10px;
  background:#fff;
  color:#172554;
  font:inherit;
  font-size:16px;
  line-height:1.4;
  box-shadow:0 1px 2px rgba(15,23,42,.025);
  transition:border-color .18s ease,box-shadow .18s ease;
}
#he-current-calculator-v2 input:focus,
#he-current-calculator-v2 select:focus{
  outline:0;
  border-color:#3b82f6;
  box-shadow:0 0 0 4px rgba(59,130,246,.13);
}
#he-current-calculator-v2 input::placeholder{color:#94a3b8}
#he-current-calculator-v2 .hc-unit{margin-top:8px}
#he-current-calculator-v2 .hc-hint{
  color:#64748b;
  font-size:12px;
  line-height:1.5;
  margin-top:6px;
}
#he-current-calculator-v2 .hc-buttons{
  display:flex;
  flex-wrap:wrap;
  gap:11px;
  margin-top:23px;
}
#he-current-calculator-v2 button{
  appearance:none;
  border:1px solid transparent;
  border-radius:10px;
  background:linear-gradient(135deg,#2563eb,#1d4ed8);
  color:#fff;
  padding:13px 21px;
  min-height:48px;
  font:inherit;
  font-size:15px;
  font-weight:750;
  line-height:1.3;
  cursor:pointer;
  box-shadow:0 4px 10px rgba(37,99,235,.16);
  transition:transform .18s ease,box-shadow .18s ease,background .18s ease;
}
#he-current-calculator-v2 button:hover{
  background:linear-gradient(135deg,#1d4ed8,#1e40af);
  box-shadow:0 6px 15px rgba(37,99,235,.22);
  transform:translateY(-1px);
}
#he-current-calculator-v2 button:active{transform:translateY(0)}
#he-current-calculator-v2 button:focus-visible{
  outline:3px solid #93c5fd;
  outline-offset:3px;
}
#he-current-calculator-v2 .hc-reset{
  background:#eef2f7;
  color:#26364b;
  border-color:#dbe3ed;
  box-shadow:none;
}
#he-current-calculator-v2 .hc-reset:hover{background:#e2e8f0}
#he-current-calculator-v2 .hc-error{
  color:#b91c1c;
  background:#fef2f2;
  border:1px solid #fecaca;
  border-radius:9px;
  padding:10px 13px;
  font-weight:650;
  margin-top:13px;
}
#he-current-calculator-v2 .hc-result{
  display:none;
  background:linear-gradient(145deg,#eff6ff,#f8fbff);
  border:1px solid #bfdbfe;
  border-radius:15px;
  padding:clamp(16px,3vw,23px);
  margin-top:23px;
}
#he-current-calculator-v2 .hc-answer{
  color:#1d4ed8;
  font-size:clamp(31px,5vw,43px);
  font-weight:850;
  line-height:1.25;
  margin:9px 0 13px;
  overflow-wrap:anywhere;
}
#he-current-calculator-v2 .hc-detail{
  background:#fff;
  padding:15px 16px;
  border:1px solid #dbeafe;
  border-radius:11px;
  margin-top:13px;
  overflow-wrap:anywhere;
}
#he-current-calculator-v2 .hc-detail p{margin:6px 0;line-height:1.7}
#he-current-calculator-v2 .hc-success{color:#15803d;font-size:13px;font-weight:750}
#he-current-calculator-v2 [hidden]{display:none!important}
@media(max-width:600px){
  #he-current-calculator-v2{margin:22px auto}
  #he-current-calculator-v2 .hc-grid{grid-template-columns:1fr;gap:15px}
  #he-current-calculator-v2 .hc-panel{padding:17px;border-radius:14px}
  #he-current-calculator-v2 .hc-panel>h3{font-size:21px;margin-bottom:19px}
  #he-current-calculator-v2 .hc-buttons{gap:9px}
  #he-current-calculator-v2 .hc-buttons button{flex:1 1 140px}
}
@media(max-width:380px){
  #he-current-calculator-v2 .hc-buttons button{flex:1 1 100%;width:100%}
}
@media print{
  body *{visibility:hidden}
  #he-current-tool .he-result,
  #he-current-tool .he-result *{visibility:visible}
  #he-current-tool .he-result{
    display:block!important;
    position:absolute;
    left:0;top:0;
    width:100%;
    box-shadow:none;
  }
  #he-current-tool .he-result .he-buttons{display:none!important}
}
</style>

<!-- INTRO -->
<div class="he-hero">
  <h2>Current Calculator – Calculate Electrical Amps</h2>
  <p>
    Calculate electrical current in DC, single-phase AC and balanced
    three-phase AC circuits using power, voltage, resistance and power factor.
  </p>
</div>

<div id="he-current-calculator-v2">



<div class="hc-panel">
<h3>Electrical Current Calculator</h3>
<div class="hc-grid">
<div class="hc-field">
<label for="hc2-circuit">Circuit Type</label>
<select id="hc2-circuit">
<option value="dc">DC Circuit</option>
<option value="single">Single Phase AC</option>
<option value="three">Three Phase AC</option>
</select>
</div>
<div class="hc-field">
<label for="hc2-method">Calculate Current From</label>
<select id="hc2-method">
<option value="pv">Power and Voltage</option>
<option value="vr">Voltage and Resistance</option>
<option value="pr">Power and Resistance</option>
</select>
</div>
<div class="hc-field" id="hc2-power-wrap">
<label for="hc2-power">Power</label>
<input id="hc2-power" type="number" min="0" step="any" placeholder="Enter power">
<select id="hc2-power-unit" class="hc-unit">
<option value="1">Watts (W)</option>
<option value="1000">Kilowatts (kW)</option>
</select>
</div>
<div class="hc-field" id="hc2-voltage-wrap">
<label for="hc2-voltage">Voltage</label>
<input id="hc2-voltage" type="number" min="0" step="any" placeholder="Enter voltage">
<select id="hc2-voltage-unit" class="hc-unit">
<option value="1">Volts (V)</option>
<option value="1000">Kilovolts (kV)</option>
</select>
</div>
<div class="hc-field" id="hc2-resistance-wrap" hidden="">
<label for="hc2-resistance">Resistance</label>
<input id="hc2-resistance" type="number" min="0" step="any" placeholder="Enter resistance (Ω)">
</div>
<div class="hc-field" id="hc2-pf-wrap">
<label for="hc2-pf">Power Factor (PF)</label>
<input id="hc2-pf" type="number" min="0.01" max="1" step="any" value="1">
<div class="hc-hint">Enter a value greater than 0 and up to 1.</div>
</div>
<div class="hc-field" id="hc2-phase-wrap" hidden="">
<label for="hc2-phase">Three Phase Voltage Type</label>
<select id="hc2-phase">
<option value="ll">Line-to-Line Voltage (VLL)</option>
<option value="ln">Line-to-Neutral Voltage (VLN)</option>
</select>
</div>
</div>
<div class="hc-buttons">
<button type="button" id="hc2-calculate"><img src="https://s.w.org/images/core/emoji/17.0.2/72x72/26a1.png" alt="⚡" class="wp-smiley" style="height: 1em; max-height: 1em;" /> Calculate Current</button>
<button type="button" class="hc-reset" id="hc2-reset">Reset</button>
</div>
<div id="hc2-error" class="hc-error" role="alert"></div>
<div id="hc2-result" class="hc-result" aria-live="polite">
<div class="hc-success">✓ Calculation completed successfully</div>
<strong>Calculated Electrical Current</strong>
<div class="hc-answer" id="hc2-answer">0 A</div>
<div class="hc-detail">
<strong>Formula Used</strong>
<p id="hc2-formula"></p>
</div>
<div class="hc-detail">
<strong>Step-by-Step Calculation</strong>
<p id="hc2-steps"></p>
</div>
<div class="hc-detail">
<strong>Explanation</strong>
<p id="hc2-info"></p>
</div>
<div class="hc-buttons">
<button type="button" id="hc2-copy">Copy Result</button>
<button type="button" class="hc-reset" id="hc2-print">Print Result</button>
</div>
<p id="hc2-copy-status" class="hc-success"></p>
</div>
</div>
</div>

<script>
(function(){
"use strict";
function initialize(){
const root=document.getElementById("he-current-calculator-v2");
if(!root || root.dataset.ready==="yes") return;
root.dataset.ready="yes";
const el=id=>root.querySelector("#hc2-"+id);
const circuit=el("circuit");
const method=el("method");
function num(id){
const v=el(id).value.trim();
return v===""?NaN:Number(v);
}
function valid(v){
return Number.isFinite(v)&&v>0;
}
function fmt(v){
return v.toLocaleString("en-IN",{maximumFractionDigits:4});
}
function showFields(){

const c=circuit.value;
const m=method.value;

el("power-wrap").hidden=!(m==="pv"||m==="pr");
el("voltage-wrap").hidden=!(m==="pv"||m==="vr");
el("resistance-wrap").hidden=!(m==="vr"||m==="pr");
el("pf-wrap").hidden=!(m==="pv"&&c!=="dc");
el("phase-wrap").hidden=!(m==="pv"&&c==="three");

el("error").textContent="";
el("result").style.display="none";

}

function calculate(){

el("error").textContent="";
el("result").style.display="none";

const c=circuit.value;
const m=method.value;

let I=0,formula="",steps="",info="";

if(m==="pv"){

const P=num("power")*Number(el("power-unit").value);
const V=num("voltage")*Number(el("voltage-unit").value);
const PF=num("pf");

if(!valid(P)||!valid(V)){
el("error").textContent="Please enter valid positive Power and Voltage.";
return;
}

if(c!=="dc"&&(!Number.isFinite(PF)||PF<=0||PF>1)){
el("error").textContent="Power Factor must be greater than 0 and up to 1.";
return;
}

if(c==="dc"){

I=P/V;
formula="I = P / V";
steps=fmt(P)+" / "+fmt(V)+" = "+fmt(I)+" A";
info="DC current calculation.";

}else if(c==="single"){

I=P/(V*PF);
formula="I = P / (V × PF)";
steps=fmt(P)+" / ("+fmt(V)+" × "+fmt(PF)+") = "+fmt(I)+" A";
info="Single-phase AC current calculation.";

}else{

if(el("phase").value==="ll"){

I=P/(Math.sqrt(3)*V*PF);
formula="I = P / (√3 × VLL × PF)";
steps=fmt(P)+" / (1.73205 × "+fmt(V)+" × "+fmt(PF)+") = "+fmt(I)+" A";

}else{

I=P/(3*V*PF);
formula="I = P / (3 × VLN × PF)";
steps=fmt(P)+" / (3 × "+fmt(V)+" × "+fmt(PF)+") = "+fmt(I)+" A";

}

info="Balanced three-phase AC current per line.";

}

}else if(m==="vr"){

const V=num("voltage")*Number(el("voltage-unit").value);
const R=num("resistance");

if(!valid(V)||!valid(R)){
el("error").textContent="Please enter valid positive Voltage and Resistance.";
return;
}

I=V/R;
formula="I = V / R";
steps=fmt(V)+" / "+fmt(R)+" = "+fmt(I)+" A";
info="Ohm's law calculation.";

}else{

const P=num("power")*Number(el("power-unit").value);
const R=num("resistance");

if(!valid(P)||!valid(R)){
el("error").textContent="Please enter valid positive Power and Resistance.";
return;
}

I=Math.sqrt(P/R);
formula="I = √(P / R)";
steps="√("+fmt(P)+" / "+fmt(R)+") = "+fmt(I)+" A";
info="Power and resistance calculation for a resistive load.";

}

if(!Number.isFinite(I)||I<=0){
el("error").textContent="Unable to calculate. Please check your inputs.";
return;
}

el("answer").textContent=fmt(I)+" A";
el("formula").textContent=formula;
el("steps").textContent=steps;
el("info").textContent=info;

el("result").style.display="block";

}

function reset(){

["power","voltage","resistance"].forEach(id=>{
el(id).value="";
});

el("pf").value="1";
el("power-unit").value="1";
el("voltage-unit").value="1";
el("phase").value="ll";

circuit.value="dc";
method.value="pv";

el("error").textContent="";
el("result").style.display="none";
el("copy-status").textContent="";

showFields();

}

function copy(){

const text=
"Current Calculator Results\n"+
"Current: "+el("answer").textContent+"\n"+
"Formula: "+el("formula").textContent+"\n"+
"Calculation: "+el("steps").textContent+"\n"+
el("info").textContent;

if(navigator.clipboard&&window.isSecureContext){

navigator.clipboard.writeText(text).then(()=>{
el("copy-status").textContent="Results copied successfully!";
}).catch(()=>{
window.prompt("Copy results:",text);
});

}else{

window.prompt("Copy results:",text);

}

}

function print(){

const w=window.open("","_blank");

if(!w){
alert("Please allow popups to print results.");
return;
}

w.document.write(
"<html><head><title>Current Calculator Results</title>"+
"<style>body{font-family:Arial;padding:25px;line-height:1.7}"+
"h2{color:#155eef}.answer{font-size:30px;color:#155eef}</style>"+
"</head><body><h2>Current Calculator Results</h2>"+
"<div class='answer'>"+el("answer").textContent+"</div>"+
"<p><b>Formula:</b> "+el("formula").textContent+"</p>"+
"<p><b>Calculation:</b> "+el("steps").textContent+"</p>"+
"<p>"+el("info").textContent+"</p>"+
"</body></html>"
);

w.document.close();
w.focus();
w.print();

}

el("calculate").addEventListener("click",calculate);
el("reset").addEventListener("click",reset);
el("copy").addEventListener("click",copy);
el("print").addEventListener("click",print);

circuit.addEventListener("change",showFields);
method.addEventListener("change",showFields);

showFields();

}

if(document.readyState==="loading"){
document.addEventListener("DOMContentLoaded",initialize);
}else{
initialize();
}

})();
</script>

</div>


<style>
/* HOWELECTRICAL ARTICLE CSS - FIXED SCOPE */
/* The style tag sits between calculator and article, so use general sibling (~), not adjacent sibling (+). */
#he-current-tool ~ .he-content{
  --article-ink:#172b4d;
  --article-text:#40516a;
  --article-muted:#64748b;
  --article-blue:#2563eb;
  --article-border:#e1e8f2;
  display:block !important;
  width:100% !important;
  max-width:100% !important;
  margin:34px auto 0 !important;
  padding:clamp(16px,3vw,34px) !important;
  background:#fff !important;
  color:var(--article-text) !important;
  font-family:Arial,Helvetica,sans-serif !important;
  font-size:16px !important;
  line-height:1.8 !important;
  overflow-wrap:break-word;
  word-break:normal;
}
#he-current-tool ~ .he-content,
#he-current-tool ~ .he-content *{box-sizing:border-box}
#he-current-tool ~ .he-content h2{
  display:block !important;
  color:var(--article-ink) !important;
  font-family:Arial,Helvetica,sans-serif !important;
  font-size:clamp(22px,2.6vw,29px) !important;
  font-weight:800 !important;
  line-height:1.35 !important;
  letter-spacing:-.35px;
  margin:44px 0 17px !important;
  padding:0 0 12px 15px !important;
  border:0 !important;
  border-bottom:1px solid var(--article-border) !important;
  background:transparent !important;
  box-shadow:none !important;
  position:relative;
}
#he-current-tool ~ .he-content h2:before{
  content:"";
  position:absolute;
  left:0;
  top:2px;
  bottom:13px;
  width:5px;
  border-radius:5px;
  background:#2563eb;
}
#he-current-tool ~ .he-content h2:first-child{margin-top:0 !important}
#he-current-tool ~ .he-content h3{
  display:block !important;
  color:#1e40af !important;
  font-family:Arial,Helvetica,sans-serif !important;
  font-size:clamp(18px,2vw,21px) !important;
  font-weight:750 !important;
  line-height:1.45 !important;
  margin:28px 0 10px !important;
  padding:0 !important;
  border:0 !important;
  background:transparent !important;
  box-shadow:none !important;
}
#he-current-tool ~ .he-content p{
  color:var(--article-text) !important;
  font-family:Arial,Helvetica,sans-serif !important;
  font-size:16px !important;
  line-height:1.85 !important;
  margin:0 0 17px !important;
}
#he-current-tool ~ .he-content strong,
#he-current-tool ~ .he-content b{color:#243b5a !important;font-weight:750 !important}
#he-current-tool ~ .he-content a{color:#1d4ed8 !important;text-decoration:underline;text-underline-offset:3px}
#he-current-tool ~ .he-content ul,
#he-current-tool ~ .he-content ol{
  margin:14px 0 23px !important;
  padding:15px 22px 15px 43px !important;
  background:#f7f9fd !important;
  border:1px solid #e3eaf4 !important;
  border-radius:12px !important;
}
#he-current-tool ~ .he-content li{
  color:var(--article-text) !important;
  font-size:15.5px !important;
  line-height:1.8 !important;
  margin:7px 0 !important;
  padding-left:3px;
}
#he-current-tool ~ .he-content li::marker{color:#2563eb;font-weight:700}
#he-current-tool ~ .he-content .he-equation{
  display:block !important;
  margin:20px 0 !important;
  padding:16px 19px !important;
  color:#173b78 !important;
  background:#f0f6ff !important;
  border:1px solid #d5e4ff !important;
  border-left:5px solid #2563eb !important;
  border-radius:11px !important;
  font-size:16px !important;
  font-weight:650 !important;
  line-height:1.85 !important;
  overflow-x:auto;
}
#he-current-tool ~ .he-content .he-equation p{
  color:#435b7b !important;
  font-size:14px !important;
  line-height:1.7 !important;
  margin:8px 0 0 !important;
}
#he-current-tool ~ .he-content .he-note{
  margin:22px 0 !important;
  padding:16px 19px !important;
  color:#704b0b !important;
  background:#fff9e9 !important;
  border:1px solid #f3dfaa !important;
  border-left:5px solid #e9a323 !important;
  border-radius:11px !important;
  font-size:15px !important;
  line-height:1.8 !important;
}
#he-current-tool ~ .he-content table{
  display:table !important;
  width:100% !important;
  max-width:100% !important;
  margin:20px 0 26px !important;
  border:1px solid #dce5f0 !important;
  border-collapse:separate !important;
  border-spacing:0 !important;
  border-radius:11px !important;
  overflow:hidden;
  background:#fff !important;
  color:var(--article-text) !important;
  font-size:14px !important;
  line-height:1.6 !important;
}
#he-current-tool ~ .he-content th{
  padding:12px 14px !important;
  color:#fff !important;
  background:#1e55b5 !important;
  border:0 !important;
  text-align:left !important;
  font-weight:750 !important;
}
#he-current-tool ~ .he-content td{
  padding:12px 14px !important;
  color:#40516a !important;
  border:0 !important;
  border-bottom:1px solid #e7edf5 !important;
  text-align:left !important;
  vertical-align:top !important;
}
#he-current-tool ~ .he-content tbody tr:nth-child(even){background:#f5f8fd !important}
#he-current-tool ~ .he-content tbody tr:last-child td{border-bottom:0 !important}
#he-current-tool ~ .he-content .he-faq{
  margin:13px 0 !important;
  padding:17px 19px !important;
  background:#f8faff !important;
  border:1px solid #e1eafa !important;
  border-radius:12px !important;
  box-shadow:0 3px 10px rgba(24,55,100,.04) !important;
}
#he-current-tool ~ .he-content .he-faq h3{
  color:#173b78 !important;
  font-size:17px !important;
  margin:0 0 8px !important;
}
#he-current-tool ~ .he-content .he-faq p{font-size:15px !important;margin:0 !important}
@media(max-width:700px){
  #he-current-tool ~ .he-content{padding:16px 12px !important;margin-top:24px !important}
  #he-current-tool ~ .he-content table{display:block !important;overflow-x:auto !important;white-space:nowrap !important;-webkit-overflow-scrolling:touch}
  #he-current-tool ~ .he-content h2{margin-top:34px !important}
}
@media(max-width:600px){
  #he-current-tool ~ .he-content p{font-size:15px !important;line-height:1.8 !important}
  #he-current-tool ~ .he-content li{font-size:14.5px !important}
  #he-current-tool ~ .he-content h2{font-size:22px !important}
  #he-current-tool ~ .he-content h3{font-size:18px !important}
  #he-current-tool ~ .he-content .he-equation,
  #he-current-tool ~ .he-content .he-note{padding:13px 14px !important}
  #he-current-tool ~ .he-content .he-faq{padding:14px !important}
}
</style>

<!-- ARTICLE -->
<div class="he-content">

<h2>What Is Electrical Current?</h2>

<p>
Electrical current is the flow of electric charge through a conductor.
It is a fundamental quantity in electrical engineering and is important
for understanding circuits, appliances, motors, batteries, generators
and power distribution systems.
</p>

<p>
Current is measured in amperes, commonly written as amps (A).
One ampere represents the flow of one coulomb of electric charge per second.
</p>

<div class="he-equation">
  <strong>Basic Current Equation:</strong><br>
  I = Q / t
  <p>
    Where I is current in amperes, Q is charge in coulombs
    and t is time in seconds.
  </p>
</div>

<h2>How to Calculate Current in Amps</h2>

<p>
The correct formula depends on the electrical system and the values available.
Common methods use power and voltage, voltage and resistance,
or power and resistance.
</p>

<h3>1. Current Using Power and Voltage</h3>

<p>For a DC circuit:</p>

<div class="he-equation">
  \(I = \frac{P}{V}\)
</div>

<p>For a single-phase AC circuit when real power is known:</p>

<div class="he-equation">
  \(I = \frac{P}{V \times PF}\)
</div>

<p>For a balanced three-phase AC circuit using line-to-line voltage:</p>

<div class="he-equation">
  \(I = \frac{P}{\sqrt{3}\times V_{LL}\times PF}\)
</div>

<p>
Here, P is real power in watts, V is voltage in volts
and PF is power factor.
</p>

<h3>2. Current Using Voltage and Resistance</h3>

<p>
Ohm’s law gives the current through a resistive element:
</p>

<div class="he-equation">
  \(I = \frac{V}{R}\)
</div>

<p>
For example, a 12 V supply across a 4 Ω resistor gives
\(I = 12/4 = 3 A\).
</p>

<h3>3. Current Using Power and Resistance</h3>

<p>For a resistive load:</p>

<div class="he-equation">
  \(I = \sqrt{\frac{P}{R}}\)
</div>

<p>
For example, a 100 W resistive load with 4 Ω resistance draws
\(I = \sqrt{100/4} = 5 A\).
</p>

<div class="he-note">
  <strong>Important:</strong>
  The voltage-resistance and power-resistance methods assume a simple
  resistive load. They are not general impedance-based AC or three-phase
  motor calculations. For motors and other AC loads, use the nameplate/input
  power, voltage, power factor and efficiency as applicable.
</div>
<h2>Difference Between DC, Single Phase and Three Phase Current</h2>

<p>
DC flows in one direction. AC periodically changes direction and is
commonly supplied as single-phase or three-phase power.
</p>

<table>
<thead>
<tr>
  <th>System</th>
  <th>Current Formula</th>
  <th>Common Application</th>
</tr>
</thead>
<tbody>
<tr>
  <td>DC</td>
  <td>I = P / V</td>
  <td>Batteries and DC systems</td>
</tr>
<tr>
  <td>Single Phase AC</td>
  <td>I = P / (V × PF)</td>
  <td>Homes and small appliances</td>
</tr>
<tr>
  <td>Balanced Three Phase AC</td>
  <td>I = P / (√3 × VLL × PF)</td>
  <td>Industrial motors and machinery</td>
</tr>
</tbody>
</table>

<h3>DC Current</h3>

<p>
Direct current flows in one direction. Batteries and many electronic
systems use DC power. For an ideal DC circuit, current equals power
divided by voltage.
</p>

<h3>Single Phase AC Current</h3>

<p>
Single-phase AC is common in residential and small commercial installations.
When calculating current from real power, power factor is generally required
for non-purely-resistive loads.
</p>

<h3>Three Phase AC Current</h3>

<p>
Three-phase systems use three alternating voltages separated by
120 electrical degrees. The calculator’s three-phase power formula
assumes a balanced load and uses line-to-line or line-to-neutral voltage
as selected.
</p>

<h2>What Is Power Factor?</h2>

<p>
Power factor describes the relationship between real power and apparent
power in an AC circuit.
</p>

<div class="he-equation">
  \(PF = \frac{kW}{kVA}\)
</div>

<p>
A power factor of 1 is unity power factor. Resistive loads often operate
close to unity, while motors and inductive loads may have a lower power factor.
For the same real power and voltage, a lower power factor generally means
higher current.
</p>

<p>
Example: a 2,000 W single-phase load at 230 V and PF 0.8 draws:
</p>

<div class="he-equation">
  \(I = \frac{2000}{230 \times 0.8} = 10.87 A\)
</div>

<h2>Current Calculation Examples</h2>

<table>
<thead>
<tr>
  <th>Electrical Load</th>
  <th>Voltage</th>
  <th>Power Factor</th>
  <th>Current</th>
</tr>
</thead>
<tbody>
<tr><td>1000 W DC</td><td>12 V</td><td>1</td><td>83.33 A</td></tr>
<tr><td>1000 W AC</td><td>230 V</td><td>1</td><td>4.35 A</td></tr>
<tr><td>2000 W AC</td><td>230 V</td><td>0.8</td><td>10.87 A</td></tr>
<tr><td>5000 W, 3 Phase</td><td>415 V</td><td>0.85</td><td>8.18 A</td></tr>
</tbody>
</table>

<p>
These are calculated values. Actual current can vary with efficiency,
load, harmonics, voltage variation and operating conditions.
</p>

<h2>Amps to Watts Conversion</h2>

<p>
When current and voltage are known, real power can be estimated using:
</p>

<div class="he-equation">
  <strong>DC:</strong> \(P = V \times I\)<br>
  <strong>Single Phase AC:</strong> \(P = V \times I \times PF\)<br>
  <strong>Balanced Three Phase AC:</strong>
  \(P = \sqrt{3}\times V_{LL}\times I\times PF\)
</div>

<p>
For example, a single-phase circuit at 230 V drawing 10 A with PF 0.9
consumes \(P = 230 \times 10 \times 0.9 = 2070 W\), or 2.07 kW.
</p>

<h2>Amps per Kilowatt Reference Table</h2>

<p>
Approximate current for a 1 kW load at different voltages,
assuming power factor 1:
</p>

<table>
<thead>
<tr>
  <th>Supply System</th>
  <th>Voltage</th>
  <th>Current per kW</th>
</tr>
</thead>
<tbody>
<tr><td>DC</td><td>12 V</td><td>83.33 A</td></tr>
<tr><td>DC</td><td>24 V</td><td>41.67 A</td></tr>
<tr><td>Single Phase</td><td>230 V</td><td>4.35 A</td></tr>
<tr><td>Single Phase</td><td>240 V</td><td>4.17 A</td></tr>
<tr><td>Three Phase</td><td>400 V</td><td>1.44 A</td></tr>
<tr><td>Three Phase</td><td>415 V</td><td>1.39 A</td></tr>
</tbody>
</table>

<h2>How to Use the Current Calculator</h2>

<ol>
  <li>Select DC, single-phase AC or three-phase AC.</li>
  <li>Select the calculation method.</li>
  <li>Enter power and select W or kW when required.</li>
  <li>Enter voltage and select V or kV when required.</li>
  <li>Enter resistance in ohms for a resistance-based method.</li>
  <li>Enter power factor for AC power calculations.</li>
  <li>For three-phase calculations, select line-to-line or line-to-neutral voltage.</li>
  <li>Click Calculate Current to see the result, formula and calculation steps.</li>
</ol>

<h2>Applications of Electrical Current Calculations</h2>

<ul>
  <li><strong>Electrical wiring:</strong> Estimating circuit current before conductor selection.</li>
  <li><strong>Motor applications:</strong> Understanding motor operating current.</li>
  <li><strong>Solar systems:</strong> Estimating current in DC and AC systems.</li>
  <li><strong>Battery systems:</strong> Calculating load current from battery voltage and power.</li>
  <li><strong>Transformers:</strong> Understanding primary and secondary current.</li>
  <li><strong>Troubleshooting:</strong> Comparing calculated and measured current.</li>
  <li><strong>Industrial installations:</strong> Estimating balanced three-phase load current.</li>
</ul>

<h2>Important Electrical Safety Considerations</h2>

<div class="he-note">
  <strong>Safety Warning:</strong>
  A calculated current value alone is not sufficient to select a wire,
  fuse, MCB or circuit breaker. Consider applicable electrical codes,
  conductor material, insulation temperature, installation method,
  ambient temperature, voltage drop, fault current, equipment ratings
  and protective-device coordination.
</div>

<p>
For continuous loads, motor circuits and protective-device selection,
follow applicable local standards and manufacturer data. Motor starting
current, efficiency, service factor and nameplate information may also
be important. Do not use this calculator as a substitute for a qualified
electrical design or inspection.
</p>

<h2>Frequently Asked Questions</h2>

<div class="he-faq">
  <h3>1. What is the formula for calculating amps?</h3>
  <p>
    For DC, use I = P / V. For single-phase AC real power,
    use I = P / (V × PF). For balanced three-phase AC using
    line-to-line voltage, use I = P / (√3 × V × PF).
  </p>
</div>

<div class="he-faq">
  <h3>2. How many amps are in 1 kW?</h3>
  <p>
    It depends on voltage and power factor. At 230 V single-phase
    and unity power factor, 1 kW draws approximately 4.35 A.
  </p>
</div>

<div class="he-faq">
  <h3>3. How do I calculate current without knowing resistance?</h3>
  <p>
    If power and voltage are known, use the relevant DC,
    single-phase AC or three-phase AC power formula.
  </p>
</div>

<div class="he-faq">
  <h3>4. What is the difference between kW and kVA?</h3>
  <p>
    kW is real power and kVA is apparent power.
    In an AC circuit, kW = kVA × power factor.
  </p>
</div>

<div class="he-faq">
  <h3>5. Why is power factor important?</h3>
  <p>
    For a given real AC power and voltage, a lower power factor
    generally requires more current.
  </p>
</div>

<div class="he-faq">
  <h3>6. Can I use this calculator for three-phase motors?</h3>
  <p>
    You can estimate balanced three-phase current when real electrical
    input power, line voltage and power factor are known. If the power
    value is motor output power, account for motor efficiency as well.
  </p>
</div>

<div class="he-faq">
  <h3>7. What unit is electrical current measured in?</h3>
  <p>
    Current is measured in amperes (A). Smaller values may be
    expressed in milliamperes (mA).
  </p>
</div>

<h2>Conclusion</h2>

<p>
Electrical current is an important parameter for understanding and
troubleshooting electrical systems. Whether working with DC batteries,
single-phase appliances or three-phase equipment, selecting the correct
formula and input values is essential.
</p>

<p>
Use the Current Calculator above to estimate amps from power and voltage,
voltage and resistance, or power and resistance. The displayed formula
and calculation steps help students, electricians and technicians
understand the result.
</p>

</div>
<p>The post <a href="https://howelectrical.com/current-calculator/">Current Calculator – Calculate Amps from Watts &amp; Volts</a> appeared first on <a href="https://howelectrical.com">Electrical and Electronics Blog</a>.</p>
]]></content:encoded>

					<wfw:commentRss>https://howelectrical.com/current-calculator/feed/</wfw:commentRss>
			<slash:comments>0</slash:comments>


			</item>
		<item>
		<title>Ohm’s Law Calculator – Voltage, Current, Resistance &#038; Power</title>
		<link>https://howelectrical.com/ohms-law-calculator/</link>
					<comments>https://howelectrical.com/ohms-law-calculator/#respond</comments>

		<dc:creator><![CDATA[admin]]></dc:creator>
		<pubDate>Wed, 28 Oct 2026 18:42:37 +0000</pubDate>
				<category><![CDATA[Basic Electrical]]></category>
		<guid isPermaLink="false">https://howelectrical.com/?p=4992</guid>

					<description><![CDATA[<p>Calculate voltage, current, resistance and power using Ohm’s Law. Explore formulas, practical examples and an interactive electrical calculator.</p>
<p>The post <a href="https://howelectrical.com/ohms-law-calculator/">Ohm’s Law Calculator – Voltage, Current, Resistance &amp; Power</a> appeared first on <a href="https://howelectrical.com">Electrical and Electronics Blog</a>.</p>
]]></description>
										<content:encoded><![CDATA[
<div id="he-ohms-calculator">
  <style>
    #he-ohms-calculator{font-family:Arial,Helvetica,sans-serif;color:#243247;line-height:1.65;max-width:100%;margin:0 auto}
    #he-ohms-calculator *{box-sizing:border-box}
    #he-ohms-calculator .he-wrap{max-width:1000px;margin:0 auto}
    #he-ohms-calculator .he-hero{background:linear-gradient(135deg,#102a43,#155eef);color:#fff;border-radius:18px;padding:26px 22px;margin:0 0 20px}
    #he-ohms-calculator .he-hero h2{color:#fff;font-size:clamp(25px,4vw,36px);line-height:1.2;margin:0 0 10px}
    #he-ohms-calculator .he-hero p{margin:0;color:#edf4ff}
    #he-ohms-calculator .he-panel{background:#fff;border:1px solid #dce5ef;border-radius:15px;padding:22px;margin:18px 0;box-shadow:0 5px 20px rgba(20,45,80,.05)}
    #he-ohms-calculator h2{font-size:clamp(23px,3vw,30px);line-height:1.3;color:#102a43;margin:30px 0 12px}
    #he-ohms-calculator h3{font-size:20px;color:#155eef;margin:24px 0 8px}
    #he-ohms-calculator p{margin:12px 0}
    #he-ohms-calculator .he-grid{display:grid;grid-template-columns:repeat(2,minmax(0,1fr));gap:16px}
    #he-ohms-calculator .he-field label{display:block;font-weight:700;margin-bottom:6px;color:#20334a}
    #he-ohms-calculator .he-unit-row{display:grid;grid-template-columns:minmax(0,1fr) 112px;gap:8px}
    #he-ohms-calculator input,#he-ohms-calculator select{width:100%;min-width:0;padding:12px 11px;border:1px solid #cbd5e1;border-radius:9px;background:#fff;color:#172b43;font-size:16px}
    #he-ohms-calculator input:focus,#he-ohms-calculator select:focus{outline:2px solid #a8c5ff;border-color:#155eef}
    #he-ohms-calculator .he-actions{display:flex;flex-wrap:wrap;gap:10px;margin-top:18px}
    #he-ohms-calculator button{border:0;border-radius:9px;padding:12px 18px;font-weight:700;font-size:15px;cursor:pointer}
    #he-ohms-calculator .he-calculate{background:#155eef;color:white}
    #he-ohms-calculator .he-clear{background:#e9eef5;color:#20334a}
    #he-ohms-calculator .he-example{background:#e7f7ed;color:#166534}
    #he-ohms-calculator button:focus-visible{outline:3px solid #9bbcff;outline-offset:2px}
    #he-ohms-calculator .he-status{margin-top:14px;padding:11px 13px;border-radius:8px;display:none}
    #he-ohms-calculator .he-status.he-error{display:block;background:#fff0f0;color:#9b1c1c;border:1px solid #ffcaca}
    #he-ohms-calculator .he-status.he-success{display:block;background:#eefbf2;color:#166534;border:1px solid #bce9ca}
    #he-ohms-calculator .he-results{display:none}
    #he-ohms-calculator .he-results.he-show{display:block}
    #he-ohms-calculator .he-results-grid{display:grid;grid-template-columns:repeat(2,minmax(0,1fr));gap:12px}
    #he-ohms-calculator .he-result{border:1px solid #dce5ef;border-radius:12px;padding:15px;background:#f8fbff}
    #he-ohms-calculator .he-result-label{font-size:14px;color:#52657a;font-weight:700}
    #he-ohms-calculator .he-result-value{font-size:clamp(20px,3vw,28px);font-weight:800;color:#102a43;overflow-wrap:anywhere}
    #he-ohms-calculator .he-formula{margin-top:16px;padding:15px;background:#eef4ff;border-left:4px solid #155eef;border-radius:8px;overflow-wrap:anywhere}
    #he-ohms-calculator .he-article{overflow-wrap:anywhere}
    #he-ohms-calculator .he-note{padding:15px;background:#fff8e8;border:1px solid #f0d69a;border-radius:9px;margin:18px 0}
    #he-ohms-calculator .he-table-wrap{overflow-x:auto}
    #he-ohms-calculator table{border-collapse:collapse;width:100%;margin:16px 0;min-width:480px}
    #he-ohms-calculator th,#he-ohms-calculator td{border:1px solid #dce4ee;padding:10px;text-align:left}
    #he-ohms-calculator th{background:#eef4fb;color:#102a43}
    #he-ohms-calculator details{border:1px solid #dce4ee;border-radius:9px;padding:13px 15px;margin:11px 0}
    #he-ohms-calculator summary{font-weight:700;cursor:pointer;color:#102a43}
    #he-ohms-calculator ul,#he-ohms-calculator ol{padding-left:24px}
    #he-ohms-calculator li{margin:7px 0}
    @media(max-width:600px){
      #he-ohms-calculator .he-hero{padding:22px 17px;border-radius:13px}
      #he-ohms-calculator .he-panel{padding:16px;margin:14px 0}
      #he-ohms-calculator .he-grid,#he-ohms-calculator .he-results-grid{grid-template-columns:1fr}
      #he-ohms-calculator .he-unit-row{grid-template-columns:minmax(0,1fr) 100px}
      #he-ohms-calculator .he-actions button{flex:1 1 100%;width:100%}
    }
  </style>

  <div class="he-wrap">
    <header class="he-hero">
      <h2>Ohm’s Law Calculator</h2>
      <p>Calculate voltage, current, resistance and electrical power. Enter any two known values, select their units, and calculate the remaining values.</p>
    </header>

    <section class="he-panel" aria-labelledby="he-calc-heading">
      <h2 id="he-calc-heading" style="margin-top:0">Calculate Electrical Values</h2>
      <p>Enter exactly two known values. Leave the other two fields empty.</p>
      <form id="he-ohms-form" novalidate="">
        <div class="he-grid">
          <div class="he-field">
            <label for="he-v">Voltage (V)</label>
            <div class="he-unit-row">
              <input id="he-v" name="voltage" type="number" min="0" step="any" inputmode="decimal" placeholder="e.g. 12">
              <select id="he-v-unit" aria-label="Voltage unit">
                <option value="1">V</option><option value="0.001">mV</option><option value="1000">kV</option>
              </select>
            </div>
          </div>
          <div class="he-field">
            <label for="he-i">Current (I)</label>
            <div class="he-unit-row">
              <input id="he-i" name="current" type="number" min="0" step="any" inputmode="decimal" placeholder="e.g. 0.5">
              <select id="he-i-unit" aria-label="Current unit">
                <option value="1">A</option><option value="0.001">mA</option><option value="0.000001">µA</option><option value="1000">kA</option>
              </select>
            </div>
          </div>
          <div class="he-field">
            <label for="he-r">Resistance (R)</label>
            <div class="he-unit-row">
              <input id="he-r" name="resistance" type="number" min="0" step="any" inputmode="decimal" placeholder="e.g. 220">
              <select id="he-r-unit" aria-label="Resistance unit">
                <option value="1">Ω</option><option value="1000">kΩ</option><option value="1000000">MΩ</option><option value="0.001">mΩ</option>
              </select>
            </div>
          </div>
          <div class="he-field">
            <label for="he-p">Power (P)</label>
            <div class="he-unit-row">
              <input id="he-p" name="power" type="number" min="0" step="any" inputmode="decimal" placeholder="e.g. 2">
              <select id="he-p-unit" aria-label="Power unit">
                <option value="1">W</option><option value="0.001">mW</option><option value="1000">kW</option><option value="1000000">MW</option>
              </select>
            </div>
          </div>
        </div>
        <div class="he-actions">
          <button class="he-calculate" type="submit">Calculate</button>
          <button class="he-clear" type="button" id="he-clear">Clear</button>
          <button class="he-example" type="button" id="he-example">Try Example (12 V, 220 Ω)</button>
        </div>
        <div id="he-status" class="he-status" role="status" aria-live="polite"></div>
      </form>
    </section>

    <section id="he-output" class="he-panel he-results" aria-live="polite">
      <h2 style="margin-top:0">Calculated Results</h2>
      <div class="he-results-grid">
        <div class="he-result"><div class="he-result-label">Voltage</div><div id="he-out-v" class="he-result-value">—</div></div>
        <div class="he-result"><div class="he-result-label">Current</div><div id="he-out-i" class="he-result-value">—</div></div>
        <div class="he-result"><div class="he-result-label">Resistance</div><div id="he-out-r" class="he-result-value">—</div></div>
        <div class="he-result"><div class="he-result-label">Power</div><div id="he-out-p" class="he-result-value">—</div></div>
      </div>
      <div class="he-formula"><strong>Calculation steps</strong><div id="he-steps"></div></div>
    </section></div></div>
    <article class="he-panel he-article">
      <h2 style="margin-top:0">Ohm’s Law Calculator: Voltage, Current, Resistance and Power</h2>
      <p>The free Ohm’s Law Calculator from HowElectrical helps you calculate voltage, current, resistance and electrical power in a resistive circuit. Enter any two known values to find the remaining quantities. The calculator supports common units such as volts, millivolts, amperes, milliamperes, ohms, kilo-ohms, watts and kilowatts.</p>
      <p>Ohm’s law is one of the most important principles in electrical engineering and electronics. Students, electricians, technicians, engineers and hobbyists use it to understand circuit behaviour, check measurements and estimate component operating conditions. This guide explains the formulas, provides worked examples, describes unit conversions and answers common questions.</p>

      <h2>What Is Ohm’s Law?</h2>
      <p>Ohm’s law describes the relationship between voltage, current and resistance. For an ohmic conductor operating under stable physical conditions, the current flowing through it is directly proportional to the voltage applied across it. Resistance determines how much current flows for a particular voltage.</p>
      <p>The law is named after Georg Simon Ohm, a German physicist who investigated the relationship between electrical potential difference and current. His work became foundational to modern electrical circuit analysis.</p>
      <div class="he-formula"><strong>Ohm’s Law:</strong> V = I × R<br><strong>Current:</strong> I = V ÷ R<br><strong>Resistance:</strong> R = V ÷ I</div>
      <p>In these equations, V represents voltage in volts, I represents current in amperes, and R represents resistance in ohms. If two quantities are known, the third can be calculated using the appropriate equation.</p>
      <p>For example, suppose a 12-volt supply is connected across a 600-ohm resistor. The current is 12 ÷ 600 = 0.02 amperes, or 20 milliamperes. If resistance stays constant and voltage doubles, current also doubles.</p>
      <p>This relationship is useful for resistor circuits, troubleshooting and estimating component conditions. Not every electrical component behaves like a fixed resistor: diodes, LEDs, transistors and incandescent lamps can have nonlinear or temperature-dependent characteristics.</p>

      <h2>Understanding the Four Electrical Quantities</h2>
      <h3>1. Voltage (V)</h3>
      <p>Voltage is the electric potential difference between two points in a circuit. It represents energy transferred per unit of electric charge and is measured in volts (V). Batteries, generators and power supplies establish voltage that can drive current through a connected circuit.</p>
      <p>Voltage is measured across a component. A voltmeter is normally connected in parallel with the component being tested, following the meter’s instructions and relevant safety procedures. Voltage alone does not determine current; the circuit’s resistance and behaviour must also be considered.</p>
      <p>Common units include millivolts (mV), volts (V) and kilovolts (kV). One volt equals 1,000 millivolts, and one kilovolt equals 1,000 volts.</p>

      <h3>2. Current (I)</h3>
      <p>Electric current is the rate at which electric charge flows through a conductor. It is measured in amperes (A). Electronic circuits often use smaller units because sensors, integrated circuits and indicator LEDs may operate at milliamperes or microamperes.</p>
      <p>One ampere equals 1,000 milliamperes, and one milliampere equals 1,000 microamperes. For example, 25 mA equals 0.025 A. Correct conversion is essential because unit errors can make a result wrong by a factor of 1,000 or more.</p>
      <p>An ammeter is normally connected in series when measuring current. Follow the meter’s terminal, range and connection instructions. Never connect a current meter directly across a voltage source unless the instrument and procedure specifically permit it.</p>

      <h3>3. Resistance (R)</h3>
      <p>Resistance describes the opposition a material or component offers to current flow. Its standard unit is the ohm (Ω). A higher resistance allows less current to flow for the same applied voltage in a simple resistive circuit.</p>
      <p>Resistors are used to limit current, divide voltage, establish circuit bias and control signal levels. Their actual resistance can depend on manufacturing tolerance, temperature, applied voltage and other operating conditions.</p>
      <p>Common resistance units include milliohms (mΩ), ohms (Ω), kilo-ohms (kΩ) and mega-ohms (MΩ). A 4.7 kΩ resistor has a nominal resistance of 4,700 Ω; a 1 MΩ resistor has a nominal resistance of 1,000,000 Ω.</p>

      <h3>4. Electrical Power (P)</h3>
      <p>Electrical power is the rate at which electrical energy is transferred or converted. It is measured in watts (W). In a resistor, electrical power is largely converted into heat, so the component must have an appropriate power rating for its operating conditions.</p>
      <div class="he-formula"><strong>Power:</strong> P = V × I<br><strong>Using voltage and resistance:</strong> P = V² ÷ R<br><strong>Using current and resistance:</strong> P = I² × R</div>
      <p>A resistor’s power rating is not its resistance value. Two 100-ohm resistors can have different power ratings. Selection depends on calculated dissipation, ambient temperature, mounting conditions and manufacturer derating recommendations.</p>

      <h2>Important Ohm’s Law and Power Formulas</h2>
      <p>These equations cover common calculations for ideal resistive circuits. Choose the equation that matches the two quantities you know. Keep units consistent and use values that describe the same component and operating condition.</p>
      <div class="he-table-wrap">
        <table>
          <thead><tr><th>Calculate</th><th>Known values</th><th>Formula</th></tr></thead>
          <tbody>
            <tr><td>Voltage</td><td>Current and resistance</td><td>V = I × R</td></tr>
            <tr><td>Voltage</td><td>Power and current</td><td>V = P ÷ I</td></tr>
            <tr><td>Voltage</td><td>Power and resistance</td><td>V = √(P × R)</td></tr>
            <tr><td>Current</td><td>Voltage and resistance</td><td>I = V ÷ R</td></tr>
            <tr><td>Current</td><td>Power and voltage</td><td>I = P ÷ V</td></tr>
            <tr><td>Current</td><td>Power and resistance</td><td>I = √(P ÷ R)</td></tr>
            <tr><td>Resistance</td><td>Voltage and current</td><td>R = V ÷ I</td></tr>
            <tr><td>Resistance</td><td>Voltage and power</td><td>R = V² ÷ P</td></tr>
            <tr><td>Resistance</td><td>Power and current</td><td>R = P ÷ I²</td></tr>
            <tr><td>Power</td><td>Voltage and current</td><td>P = V × I</td></tr>
            <tr><td>Power</td><td>Voltage and resistance</td><td>P = V² ÷ R</td></tr>
            <tr><td>Power</td><td>Current and resistance</td><td>P = I² × R</td></tr>
          </tbody>
        </table>
      </div>
      <p>These formulas are rearrangements of the same basic relationships. They allow many simple circuit problems to be solved without measuring all four quantities. The calculator converts selected units to standard units before calculating.</p>

      <h2>How to Use This Ohm’s Law Calculator</h2>
      <ol>
        <li><strong>Choose the known values.</strong> Decide which two quantities you know: voltage, current, resistance or power.</li>
        <li><strong>Enter the first value.</strong> Type the number into the appropriate input field.</li>
        <li><strong>Select its unit.</strong> Choose V, mA, kΩ, W or another available unit.</li>
        <li><strong>Enter the second value.</strong> Complete one more field and leave the remaining two blank.</li>
        <li><strong>Calculate.</strong> Press the Calculate button to find the other quantities.</li>
        <li><strong>Review the answer.</strong> Check results, units, formulas and component ratings before using the values in a real circuit.</li>
      </ol>
      <p>For example, enter 12 V for voltage and 220 Ω for resistance. The estimated current is approximately 0.05455 A, or 54.55 mA, and the power is about 0.6545 W.</p>
      <p>This is a mathematical estimate for an ideal resistor connected across an ideal 12 V supply. A real resistor must have an appropriate power rating and operate within its specified limits. A calculated result does not automatically establish that a component is safe for a particular application.</p>

      <h2>Worked Examples of Ohm’s Law</h2>
      <h3>Example 1: Calculate current from voltage and resistance</h3>
      <p><strong>Given:</strong> Voltage = 9 V; resistance = 18 Ω.</p>
      <p>Use I = V ÷ R. Substitute the values: I = 9 ÷ 18 = 0.5 A.</p>
      <div class="he-formula">Answer: Current = 0.5 A</div>
      <p>Power is P = V × I = 9 × 0.5 = 4.5 W. A real component needs a suitable power rating and thermal conditions.</p>

      <h3>Example 2: Calculate voltage from current and resistance</h3>
      <p><strong>Given:</strong> Current = 0.2 A; resistance = 50 Ω.</p>
      <p>Apply V = I × R. Multiply 0.2 A by 50 Ω to obtain 10 V.</p>
      <div class="he-formula">Answer: Voltage = 10 V</div>
      <p>Power is P = I² × R = 0.2² × 50 = 2 W.</p>

      <h3>Example 3: Calculate resistance from voltage and current</h3>
      <p><strong>Given:</strong> Voltage = 5 V; current = 20 mA. Convert 20 mA to 0.020 A. Then R = 5 ÷ 0.020 = 250 Ω.</p>
      <div class="he-formula">Answer: Resistance = 250 Ω</div>
      <p>Power is P = V × I = 5 × 0.020 = 0.1 W, equivalent to 100 mW.</p>

      <h3>Example 4: Calculate power from voltage and resistance</h3>
      <p><strong>Given:</strong> Voltage = 24 V; resistance = 120 Ω.</p>
      <p>Use P = V² ÷ R. Squaring 24 gives 576; dividing by 120 gives 4.8 W.</p>
      <div class="he-formula">Answer: Power = 4.8 W</div>
      <p>Check the resistor’s power rating and operating conditions. A component with a nominal rating near the calculated dissipation may not provide enough margin for every application.</p>

      <h3>Example 5: Calculate current and voltage from power and resistance</h3>
      <p><strong>Given:</strong> Power = 2 W; resistance = 8 Ω.</p>
      <p>Current is I = √(P ÷ R) = √(2 ÷ 8) = 0.5 A. Voltage is V = √(P × R) = √16 = 4 V.</p>
      <div class="he-formula">Answer: Current = 0.5 A; voltage = 4 V</div>
      <p>Verify using P = V × I = 4 × 0.5 = 2 W. The calculated quantities agree with the original power value.</p>

      <h3>Example 6: Calculate current using kilo-ohms</h3>
      <p><strong>Given:</strong> Voltage = 3.3 V; resistance = 1.5 kΩ. Convert 1.5 kΩ to 1,500 Ω. Current is 3.3 ÷ 1,500 = 0.0022 A, or 2.2 mA.</p>
      <div class="he-formula">Answer: Current = 2.2 mA</div>
      <p>Power is P = V² ÷ R = 3.3² ÷ 1,500 = 0.00726 W, approximately 7.26 mW.</p>

      <h2>Electrical Units and Unit Conversions</h2>
      <p>Electrical calculations often involve very small or very large quantities. Metric prefixes make values easier to express, but each prefix must be interpreted correctly. In particular, lowercase m means milli, while uppercase M means mega.</p>
      <div class="he-table-wrap">
        <table>
          <thead><tr><th>Unit</th><th>Meaning</th><th>Equivalent base unit</th></tr></thead>
          <tbody>
            <tr><td>1 mV</td><td>Millivolt</td><td>0.001 V</td></tr>
            <tr><td>1 kV</td><td>Kilovolt</td><td>1,000 V</td></tr>
            <tr><td>1 µA</td><td>Microampere</td><td>0.000001 A</td></tr>
            <tr><td>1 mA</td><td>Milliampere</td><td>0.001 A</td></tr>
            <tr><td>1 kA</td><td>Kiloampere</td><td>1,000 A</td></tr>
            <tr><td>1 mΩ</td><td>Milliohm</td><td>0.001 Ω</td></tr>
            <tr><td>1 kΩ</td><td>Kilo-ohm</td><td>1,000 Ω</td></tr>
            <tr><td>1 MΩ</td><td>Mega-ohm</td><td>1,000,000 Ω</td></tr>
            <tr><td>1 mW</td><td>Milliwatt</td><td>0.001 W</td></tr>
            <tr><td>1 kW</td><td>Kilowatt</td><td>1,000 W</td></tr>
            <tr><td>1 MW</td><td>Megawatt</td><td>1,000,000 W</td></tr>
          </tbody>
        </table>
      </div>
      <p>A frequent mistake is entering a milliampere value as if it were amperes. For example, 50 mA is 0.05 A, not 50 A. Another mistake is confusing kΩ with Ω. Always check the unit displayed beside the final answer.</p>

      <h2>Practical Applications of Ohm’s Law</h2>
      <h3>Electronics circuit design</h3>
      <p>Engineers use Ohm’s law to estimate current through resistors, calculate voltage drops and select component values. In a simple LED circuit, a series resistor can limit current. Its value depends on supply voltage, LED forward voltage and desired current. The LED datasheet and circuit requirements must also be considered.</p>
      <h3>Battery-powered devices</h3>
      <p>A simple resistive model can estimate current demanded by a load at a particular voltage. This helps with preliminary battery and power-supply calculations. Runtime also depends on battery capacity, discharge rate, temperature, battery condition and changing load behaviour. Ohm’s law alone cannot accurately predict every device’s runtime.</p>
      <h3>Electrical troubleshooting</h3>
      <p>Technicians can compare expected voltage and current with measurements to investigate faults. An unexpected voltage drop may indicate excessive resistance, a poor connection or an overloaded circuit. Resistance measurements should be taken with power disconnected and the circuit appropriately isolated, following instrument instructions.</p>
      <h3>Resistor power selection</h3>
      <p>Power calculations help estimate how much heat a resistor may dissipate. A component must operate within specified power, voltage and temperature limits. Account for ambient temperature, enclosure ventilation, mounting conditions and manufacturer derating instructions.</p>
      <h3>Electrical education and laboratory experiments</h3>
      <p>Students can investigate Ohm’s law by applying different voltages across a fixed resistor and recording current. Under stable conditions, an ohmic resistor produces an approximately linear voltage-current relationship. Graphing voltage against current helps demonstrate how resistance relates to the slope.</p>

      <h2>Limitations of Ohm’s Law</h2>
      <p>Ohm’s law is useful, but its simple form is not a complete model of every electrical device. It describes the relationship for an ohmic element under relevant operating conditions. A component’s resistance may change with temperature, voltage or current.</p>
      <p>A diode has a nonlinear current-voltage characteristic. An incandescent lamp’s filament resistance increases as it heats. Transistors and switching power supplies require more detailed models. Ohm’s law can still be used for individual resistive parts of such circuits, but additional equations may be needed to analyse the complete device.</p>
      <h3>DC circuits</h3>
      <p>In a simple direct-current circuit, voltage and current can often be treated as steady values after switching transients have settled. Standard formulas are especially convenient for fixed resistors connected to DC supplies.</p>
      <h3>AC circuits</h3>
      <p>For a purely resistive AC load, voltage and current RMS values can be used in the familiar relationships. In circuits containing inductors, capacitors or motors, voltage and current may not be in phase. The product of RMS voltage and RMS current is apparent power, measured in volt-amperes (VA), and can differ from real power measured in watts.</p>
      <p>For a sinusoidal single-phase AC circuit, real power can be expressed as P = V RMS × I RMS × cos φ, where cos φ is the power factor under the relevant conditions. Three-phase circuits require appropriate equations. This calculator does not calculate impedance, phase angle, power factor or three-phase power.</p>

      <h2>Common Ohm’s Law Calculation Mistakes</h2>
      <ul>
        <li><strong>Incorrect unit conversion:</strong> Convert milliamperes to amperes and kilo-ohms to ohms when calculating manually.</li>
        <li><strong>Using the wrong equation:</strong> Current equals voltage divided by resistance, not voltage multiplied by resistance.</li>
        <li><strong>Entering too many values:</strong> This calculator expects exactly two known quantities.</li>
        <li><strong>Ignoring component ratings:</strong> A mathematical result may exceed a resistor’s permitted power or voltage rating.</li>
        <li><strong>Assuming all components are ohmic:</strong> Nonlinear devices may need additional analysis.</li>
        <li><strong>Confusing power with energy:</strong> Watts measure power; joules and watt-hours measure energy. Energy depends on power and time.</li>
      </ul>
      <p>Estimate the approximate result before calculating. For example, 12 V across 1,000 Ω should produce about 0.012 A, or 12 mA. If your answer is thousands of amperes, check the units and equation.</p>

      <h2>Frequently Asked Questions</h2>
      <details><summary>What is the basic formula for Ohm’s law?</summary><p>The basic formula is V = I × R. Voltage equals current multiplied by resistance. Rearranging it gives I = V ÷ R and R = V ÷ I.</p></details>
      <details><summary>How do I calculate current from voltage and resistance?</summary><p>Divide voltage by resistance using I = V ÷ R. For example, 12 V across 600 Ω gives 0.02 A, equivalent to 20 mA.</p></details>
      <details><summary>How do I calculate resistance from voltage and current?</summary><p>Divide voltage by current using R = V ÷ I. If voltage is 5 V and current is 0.02 A, resistance is 250 Ω.</p></details>
      <details><summary>How can I calculate electrical power?</summary><p>Use P = V × I. For a resistor, you can also use P = V² ÷ R or P = I² × R when the required values are known.</p></details>
      <details><summary>Which two values should I enter?</summary><p>Enter any two positive values from voltage, current, resistance and power. Leave the other two fields blank and select the correct units.</p></details>
      <details><summary>Why does the calculator require exactly two values?</summary><p>Two independent values are enough to calculate the remaining quantities in the ideal resistive model. If more values are already known, compare them separately to check measurement consistency.</p></details>
      <details><summary>What is the difference between ohms and kilo-ohms?</summary><p>One kilo-ohm equals 1,000 ohms. One mega-ohm equals 1,000,000 ohms. Select the correct unit to avoid manual conversion errors.</p></details>
      <details><summary>Can Ohm’s law be used for AC circuits?</summary><p>It can be used for purely resistive AC loads with suitable RMS values. General AC circuits containing reactive components may require impedance, phase and power-factor calculations.</p></details>
      <details><summary>Does Ohm’s law apply directly to LEDs?</summary><p>An LED does not behave like a fixed resistor. Its nonlinear current-voltage relationship must be considered. Use manufacturer specifications and a suitable current-limiting circuit or LED driver.</p></details>
      <details><summary>Is this calculator suitable for mains electricity?</summary><p>This is an educational and preliminary calculation tool. It does not replace electrical codes, installation design, protection coordination or qualified professional advice. Mains electricity can cause severe injury or death.</p></details>

      <h2>Conclusion</h2>
      <p>Ohm’s law provides a straightforward way to relate voltage, current and resistance. Combined with electrical power equations, it allows many basic resistive circuit problems to be solved from two known quantities.</p>
      <p>Use the HowElectrical Ohm’s Law Calculator to perform calculations, convert common electrical units and review results. For real designs, verify component ratings, consider temperature and tolerance, and use more detailed circuit analysis whenever the simple resistive model is insufficient.</p>
      <div class="he-note"><strong>Electrical safety:</strong> This calculator is intended for education and preliminary calculations. Follow applicable safety procedures. Disconnect power before changing wiring or measuring resistance. Use appropriately rated instruments and consult a qualified electrician for mains-voltage and high-energy systems.</div>
    </article>
  </div>
  <script>
    (function () {
      "use strict";

      const root = document.getElementById("he-ohms-calculator");
      if (!root || root.dataset.heInitialized === "1") return;
      root.dataset.heInitialized = "1";

      const form = root.querySelector("#he-ohms-form");

      const fields = {
        v: {
          input: root.querySelector("#he-v"),
          unit: root.querySelector("#he-v-unit"),
          name: "Voltage",
          output: root.querySelector("#he-out-v")
        },
        i: {
          input: root.querySelector("#he-i"),
          unit: root.querySelector("#he-i-unit"),
          name: "Current",
          output: root.querySelector("#he-out-i")
        },
        r: {
          input: root.querySelector("#he-r"),
          unit: root.querySelector("#he-r-unit"),
          name: "Resistance",
          output: root.querySelector("#he-out-r")
        },
        p: {
          input: root.querySelector("#he-p"),
          unit: root.querySelector("#he-p-unit"),
          name: "Power",
          output: root.querySelector("#he-out-p")
        }
      };

      const status = root.querySelector("#he-status");
      const output = root.querySelector("#he-output");
      const steps = root.querySelector("#he-steps");

      function showStatus(message, type) {
        status.textContent = message;
        status.className = "he-status " +
          (type === "error" ? "he-error" : "he-success");
      }

      function clearStatus() {
        status.textContent = "";
        status.className = "he-status";
      }

      function fmt(n) {
        if (!Number.isFinite(n)) return "Not available";
        if (n === 0) return "0";

        const abs = Math.abs(n);

        if (abs >= 1e9 || abs < 1e-6) {
          return n.toExponential(5);
        }

        return Number(n.toPrecision(7)).toLocaleString("en-US", {
          maximumFractionDigits: 7
        });
      }

      function displayValue(key, baseValue) {
        const field = fields[key];
        const multiplier = Number(field.unit.value);
        const value = baseValue / multiplier;
        const unit = field.unit.options[field.unit.selectedIndex].text;

        return fmt(value) + " " + unit;
      }

      function resetResults() {
        output.classList.remove("he-show");

        Object.values(fields).forEach(function (field) {
          field.output.textContent = "—";
        });

        steps.textContent = "";
      }

      function calculate(event) {
        if (event) event.preventDefault();

        clearStatus();

        const entered = [];

        for (const key of Object.keys(fields)) {
          const field = fields[key];
          const raw = field.input.value.trim();

          if (raw !== "") {
            const number = Number(raw);
            const base = number * Number(field.unit.value);

            if (
              !Number.isFinite(number) ||
              number <= 0 ||
              !Number.isFinite(base) ||
              base <= 0
            ) {
              resetResults();

              showStatus(
                field.name + " must be a positive, valid number.",
                "error"
              );

              field.input.focus();
              return;
            }

            entered.push({
              key: key,
              value: base
            });
          }
        }

        if (entered.length !== 2) {
          resetResults();

          showStatus(
            "Please enter exactly two positive values and leave the other two fields blank.",
            "error"
          );

          return;
        }

        const values = {
          v: null,
          i: null,
          r: null,
          p: null
        };

        entered.forEach(function (item) {
          values[item.key] = item.value;
        });

        const pair = entered
          .map(function (item) {
            return item.key;
          })
          .sort()
          .join("");

        let formula = "";

        const V = values.v;
        const I = values.i;
        const R = values.r;
        const P = values.p;

        if (pair === "iv") {
          values.r = V / I;
          values.p = V * I;
          formula = "R = V ÷ I; P = V × I";
        } else if (pair === "rv") {
          values.i = V / R;
          values.p = V * values.i;
          formula = "I = V ÷ R; P = V² ÷ R";
        } else if (pair === "pv") {
          values.i = P / V;
          values.r = (V * V) / P;
          formula = "I = P ÷ V; R = V² ÷ P";
        } else if (pair === "ir") {
          values.v = I * R;
          values.p = I * I * R;
          formula = "V = I × R; P = I² × R";
        } else if (pair === "ip") {
          values.v = P / I;
          values.r = P / (I * I);
          formula = "V = P ÷ I; R = P ÷ I²";
        } else if (pair === "pr") {
          values.i = Math.sqrt(P / R);
          values.v = Math.sqrt(P * R);
          formula = "I = √(P ÷ R); V = √(P × R)";
        } else {
          resetResults();

          showStatus(
            "These values could not be calculated. Check your entries.",
            "error"
          );

          return;
        }

        if (
          Object.values(values).some(function (value) {
            return (
              value === null ||
              !Number.isFinite(value) ||
              value <= 0
            );
          })
        ) {
          resetResults();

          showStatus(
            "The calculation produced an invalid result. Please check the entered values and units.",
            "error"
          );

          return;
        }

        Object.keys(fields).forEach(function (key) {
          const field = fields[key];

          field.output.textContent = displayValue(key, values[key]);

          if (
            !entered.some(function (item) {
              return item.key === key;
            })
          ) {
            field.input.value = String(
              Number(
                (
                  values[key] / Number(field.unit.value)
                ).toPrecision(8)
              )
            );
          }
        });

        steps.textContent = formula;
        output.classList.add("he-show");

        showStatus(
          "Calculation completed. Check the component ratings before using these values in a real circuit.",
          "success"
        );
      }

      form.addEventListener("submit", calculate);

      root.querySelector("#he-clear").addEventListener("click", function () {
        form.reset();

        Object.values(fields).forEach(function (field) {
          field.input.value = "";
        });

        clearStatus();
        resetResults();
      });

      root.querySelector("#he-example").addEventListener("click", function () {
        form.reset();

        Object.values(fields).forEach(function (field) {
          field.input.value = "";
        });

        fields.v.input.value = "12";
        fields.v.unit.value = "1";

        fields.r.input.value = "220";
        fields.r.unit.value = "1";

        calculate();
      });

    })();
  </script>
</div>



<p class="wp-block-paragraph"></p>
<p>The post <a href="https://howelectrical.com/ohms-law-calculator/">Ohm’s Law Calculator – Voltage, Current, Resistance &amp; Power</a> appeared first on <a href="https://howelectrical.com">Electrical and Electronics Blog</a>.</p>
]]></content:encoded>

					<wfw:commentRss>https://howelectrical.com/ohms-law-calculator/feed/</wfw:commentRss>
			<slash:comments>0</slash:comments>


			</item>
		<item>
		<title>Wireless EV Charging: The Future of Electric Vehicle Powering</title>
		<link>https://howelectrical.com/wireless-ev-charging/</link>
					<comments>https://howelectrical.com/wireless-ev-charging/#respond</comments>

		<dc:creator><![CDATA[admin]]></dc:creator>
		<pubDate>Sat, 30 May 2026 19:11:43 +0000</pubDate>
				<category><![CDATA[Basic Electrical]]></category>
		<guid isPermaLink="false">https://howelectrical.com/?p=4976</guid>

					<description><![CDATA[<p>Wireless EV Charging: The Future of Electric Vehicle Powering The electric vehicle industry is evolving rapidly, and one of the most exciting innovations is Wireless EV Charging. Traditional EV charging requires drivers to connect charging cables manually. Wireless charging eliminates the need for plugs and cables by transferring energy through electromagnetic fields. As electric vehicle [&#8230;]</p>
<p>The post <a href="https://howelectrical.com/wireless-ev-charging/">Wireless EV Charging: The Future of Electric Vehicle Powering</a> appeared first on <a href="https://howelectrical.com">Electrical and Electronics Blog</a>.</p>
]]></description>
										<content:encoded><![CDATA[
<figure class="wp-block-image size-large"><img fetchpriority="high" decoding="async" width="1024" height="819" src="https://howelectrical.com/wp-content/uploads/2026/05/Wireless-EV-Charging-1024x819.png" alt="Wireless EV Charging" class="wp-image-4978" srcset="https://howelectrical.com/wp-content/uploads/2026/05/Wireless-EV-Charging-1024x819.png 1024w, https://howelectrical.com/wp-content/uploads/2026/05/Wireless-EV-Charging-300x240.png 300w, https://howelectrical.com/wp-content/uploads/2026/05/Wireless-EV-Charging-768x615.png 768w, https://howelectrical.com/wp-content/uploads/2026/05/Wireless-EV-Charging.png 1402w" sizes="(max-width: 1024px) 100vw, 1024px" /></figure>



<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8">
<meta name="viewport" content="width=device-width, initial-scale=1.0">
<title>Wireless EV Charging: The Future of Electric Vehicle Powering</title>
<meta name="description" content="Discover how Wireless EV Charging works, its benefits, challenges, future potential, and impact on electric mobility.">
<style>
*{
margin:0;
padding:0;
box-sizing:border-box;
}

body{
font-family:Arial,sans-serif;
line-height:1.8;
background:#f5f7fa;
color:#333;
}

.container{
max-width:1200px;
margin:auto;
background:#fff;
}

.hero{
background:linear-gradient(135deg,#0f172a,#2563eb);
color:#fff;
padding:60px 20px;
text-align:center;
}

.hero h1{
font-size:2.5rem;
margin-bottom:15px;
}

.hero p{
font-size:1.1rem;
max-width:800px;
margin:auto;
}

.content{
padding:25px;
}

h2{
color:#2563eb;
margin-top:30px;
margin-bottom:15px;
border-left:5px solid #2563eb;
padding-left:10px;
}

p{
margin-bottom:15px;
}

ul{
padding-left:20px;
margin-bottom:20px;
}

.highlight{
background:#eff6ff;
padding:20px;
border-left:5px solid #2563eb;
border-radius:8px;
margin:20px 0;
}

.table-responsive{
overflow-x:auto;
margin:20px 0;
}

table{
width:100%;
border-collapse:collapse;
}

table th,table td{
border:1px solid #ddd;
padding:12px;
text-align:left;
}

table th{
background:#2563eb;
color:white;
}

.footer-box{
background:#0f172a;
color:white;
padding:30px;
text-align:center;
margin-top:30px;
}

@media(max-width:768px){
.hero h1{
font-size:1.8rem;
}

.content{
padding:15px;
}
}
</style>
</head>
<body>



<div class="content">

<p>The electric vehicle industry is evolving rapidly, and one of the most exciting innovations is Wireless EV Charging. Traditional EV charging requires drivers to connect charging cables manually. Wireless charging eliminates the need for plugs and cables by transferring energy through electromagnetic fields.</p>

<p>As electric vehicle adoption grows worldwide, convenience becomes increasingly important. Wireless EV charging promises a future where drivers simply park their vehicles over a charging pad and charging begins automatically.</p>

<h2>What is Wireless EV Charging?</h2>

<p>Wireless EV Charging, also known as Inductive Charging, is a technology that allows electric vehicles to charge without physical cables. The system uses electromagnetic induction to transfer energy from a charging pad installed on the ground to a receiver installed in the vehicle.</p>

<p>The process is similar to wireless smartphone charging but on a much larger scale. A charging pad generates a magnetic field that transfers energy to the vehicle&#8217;s receiving coil, converting it into electricity to charge the battery.</p>

<div class="highlight">
<strong>Key Idea:</strong> Wireless EV charging allows electric vehicles to recharge automatically without plugging in any charging cable.
</div>

<h2>How Wireless EV Charging Works</h2>

<p>The technology relies on electromagnetic induction and consists of two major components:</p>

<ul>
<li>Ground Charging Pad (Transmitter)</li>
<li>Vehicle Receiver Pad</li>
</ul>

<p>When alternating current passes through the transmitter coil, it creates a magnetic field. The receiver coil captures this magnetic field and converts it back into electrical energy to charge the EV battery.</p>

<p>The charging process typically follows these steps:</p>

<ul>
<li>Vehicle parks above the charging pad.</li>
<li>System detects vehicle alignment.</li>
<li>Magnetic field is generated.</li>
<li>Energy transfers wirelessly.</li>
<li>Battery charging begins automatically.</li>
</ul>

<h2>Types of Wireless EV Charging</h2>

<h3>1. Static Wireless Charging</h3>

<p>Static charging occurs when the vehicle remains parked over a charging pad. This is currently the most common wireless EV charging method.</p>

<h3>2. Dynamic Wireless Charging</h3>

<p>Dynamic charging allows EVs to charge while driving. Charging coils are embedded beneath roads, continuously transferring energy to moving vehicles.</p>

<p>This technology could significantly reduce battery size requirements and extend vehicle range.</p>

<h2>Advantages of Wireless EV Charging</h2>

<ul>
<li>Maximum convenience for drivers.</li>
<li>No physical charging cables.</li>
<li>Reduced wear and tear.</li>
<li>Improved user experience.</li>
<li>Weather-resistant charging.</li>
<li>Supports autonomous vehicles.</li>
<li>Enhanced accessibility.</li>
<li>Smart charging integration.</li>
</ul>

<h2>Wireless Charging vs Traditional Charging</h2>

<div class="table-responsive">
<table>
<tr>
<th>Feature</th>
<th>Wireless Charging</th>
<th>Plug-in Charging</th>
</tr>

<tr>
<td>Convenience</td>
<td>Very High</td>
<td>Moderate</td>
</tr>

<tr>
<td>Cable Required</td>
<td>No</td>
<td>Yes</td>
</tr>

<tr>
<td>Automation</td>
<td>Fully Automatic</td>
<td>Manual Connection</td>
</tr>

<tr>
<td>Maintenance</td>
<td>Lower</td>
<td>Higher</td>
</tr>

<tr>
<td>User Experience</td>
<td>Excellent</td>
<td>Good</td>
</tr>

<tr>
<td>Initial Cost</td>
<td>Higher</td>
<td>Lower</td>
</tr>
</table>
</div>

<h2>Applications of Wireless EV Charging</h2>

<p>Wireless charging can be implemented in various environments:</p>

<ul>
<li>Residential homes</li>
<li>Office parking areas</li>
<li>Commercial buildings</li>
<li>Shopping centers</li>
<li>Airports</li>
<li>Bus depots</li>
<li>Taxi stations</li>
<li>Autonomous vehicle fleets</li>
<li>Smart city infrastructure</li>
</ul>

<h2>Wireless Charging for Autonomous Vehicles</h2>

<p>Autonomous vehicles require automated charging solutions. Wireless EV charging perfectly complements self-driving technology because vehicles can recharge themselves without human intervention.</p>

<p>Future robotaxis and autonomous delivery vehicles may operate continuously using automated wireless charging stations.</p>

<h2>Challenges Facing Wireless EV Charging</h2>

<p>Despite its benefits, several challenges remain:</p>

<ul>
<li>Higher installation costs.</li>
<li>Infrastructure development requirements.</li>
<li>Alignment precision issues.</li>
<li>Standardization challenges.</li>
<li>Energy transfer efficiency concerns.</li>
<li>Limited public charging availability.</li>
</ul>

<p>However, ongoing research continues to improve efficiency and reduce costs.</p>

<h2>Energy Efficiency Considerations</h2>

<p>Modern wireless charging systems can achieve efficiency levels close to traditional wired charging systems. Advanced alignment systems and improved magnetic resonance technologies are helping minimize energy losses.</p>

<p>Many next-generation wireless charging systems now exceed 90% efficiency under optimal conditions.</p>

<h2>Role in Smart Cities</h2>

<p>Smart cities aim to integrate connected technologies that improve urban living. Wireless EV charging can become a key component of smart transportation infrastructure.</p>

<p>Future parking spaces may include embedded charging pads that automatically charge vehicles whenever they are parked.</p>

<p>Public roads equipped with dynamic wireless charging systems may further reduce range anxiety among EV owners.</p>

<h2>Environmental Benefits</h2>

<ul>
<li>Encourages EV adoption.</li>
<li>Supports renewable energy integration.</li>
<li>Reduces greenhouse gas emissions.</li>
<li>Improves urban air quality.</li>
<li>Promotes sustainable transportation.</li>
</ul>

<p>As renewable electricity generation increases, wireless charging will contribute to cleaner transportation systems worldwide.</p>

<h2>Future Trends in Wireless EV Charging</h2>

<p>The future of wireless EV charging looks highly promising. Several emerging trends include:</p>

<ul>
<li>AI-powered charging optimization.</li>
<li>Vehicle-to-grid integration.</li>
<li>Smart energy management.</li>
<li>Dynamic charging highways.</li>
<li>Autonomous charging networks.</li>
<li>Ultra-high efficiency charging pads.</li>
<li>Renewable-powered charging systems.</li>
</ul>

<p>Governments, automakers, and technology companies are investing heavily in advanced charging infrastructure to support growing EV adoption.</p>

<h2>Market Growth Potential</h2>

<p>The global wireless EV charging market is expected to experience rapid growth throughout the next decade. Increasing electric vehicle sales, government incentives, and advancements in charging technology are driving demand.</p>

<p>Major automotive manufacturers are already testing wireless charging solutions for future vehicle models.</p>

<h2>Conclusion</h2>

<p>Wireless EV Charging represents one of the most exciting advancements in electric mobility. By eliminating cables and creating a seamless charging experience, this technology has the potential to transform how electric vehicles are powered.</p>

<p>Although challenges such as infrastructure costs and standardization remain, continuous innovation is accelerating adoption. As smart cities, autonomous vehicles, and renewable energy systems become more widespread, wireless EV charging is expected to play a crucial role in the future transportation ecosystem.</p>

<p>For EV owners, businesses, and city planners, wireless charging offers a glimpse into a future where charging becomes effortless, automatic, and fully integrated into everyday life.</p>


</body>
</html>



<p class="wp-block-paragraph"></p>
<p>The post <a href="https://howelectrical.com/wireless-ev-charging/">Wireless EV Charging: The Future of Electric Vehicle Powering</a> appeared first on <a href="https://howelectrical.com">Electrical and Electronics Blog</a>.</p>
]]></content:encoded>

					<wfw:commentRss>https://howelectrical.com/wireless-ev-charging/feed/</wfw:commentRss>
			<slash:comments>0</slash:comments>


			</item>
		<item>
		<title>What is Linear Induction Motor? Definition, Construction, Working Principle, Diagram, Characteristics, Advantages, Disadvantages &#038; Applications</title>
		<link>https://howelectrical.com/linear-induction-motor/</link>
					<comments>https://howelectrical.com/linear-induction-motor/#respond</comments>

		<dc:creator><![CDATA[admin]]></dc:creator>
		<pubDate>Wed, 07 Jan 2026 18:05:26 +0000</pubDate>
				<category><![CDATA[Basic Electrical]]></category>
		<guid isPermaLink="false">https://howelectrical.com/?p=4912</guid>

					<description><![CDATA[<p>A Linear Induction Motor (LIM) is a special form of induction motor in which the electromagnetic field does not rotate in a circular manner, but instead travels linearly along a straight path. Instead of producing rotational motion like a conventional induction motor, a LIM produces direct linear or translational motion. Because of this unique behavior, [&#8230;]</p>
<p>The post <a href="https://howelectrical.com/linear-induction-motor/">What is Linear Induction Motor? Definition, Construction, Working Principle, Diagram, Characteristics, Advantages, Disadvantages &#038; Applications</a> appeared first on <a href="https://howelectrical.com">Electrical and Electronics Blog</a>.</p>
]]></description>
										<content:encoded><![CDATA[<p><span style="font-size: 16px;">A Linear Induction Motor (LIM) is a special form of induction motor in which the electromagnetic field does not rotate in a circular manner, but instead travels linearly along a straight path. Instead of producing rotational motion like a conventional induction motor, a LIM produces </span><b style="font-style: inherit;">direct linear or translational motion</b><span style="font-size: 16px;">. Because of this unique behavior, LIMs are widely used in transportation systems, magnetic launchers, material handling devices, sliding doors, and high-speed automation processes.</span></p>
<div class="container">
<p>The LIM is conceptually obtained by imagining a traditional cylindrical induction motor cut along its axis and opened out into a flat plane. The stator becomes the <b>primary</b> of the LIM, while the rotor becomes the <b>secondary conducting plate</b>. The electromagnetic principle remains the same, but the motion produced is linear instead of rotational.</p>
<div class="highlight"><span style="color: #003300;"><b>Simple Meaning:</b></span> A Linear Induction Motor converts electrical energy directly into straight-line motion instead of rotational motion.</div>
<div></div>
<h2><span style="color: #000080;">Definition of Linear Induction Motor</span></h2>
<p>A Linear Induction Motor is an induction machine in which a traveling magnetic field is produced along a straight path, and when this traveling field interacts with a conducting secondary sheet, a linear thrust force is developed instead of torque. The motion generated is translational, and the secondary body moves along the direction of the traveling magnetic field.</p>
<p>In short, the conventional induction motor torque becomes <b>thrust</b>, and angular velocity becomes <b>linear velocity</b>.</p>
<h2><span style="color: #000080;">Construction and Working of Linear Induction Motor</span></h2>
<p><img decoding="async" class="size-full wp-image-4915 aligncenter" src="https://howelectrical.com/wp-content/uploads/2026/01/Linear-Induction-Motor.png" alt="Linear Induction Motor" width="1231" height="555" srcset="https://howelectrical.com/wp-content/uploads/2026/01/Linear-Induction-Motor.png 1231w, https://howelectrical.com/wp-content/uploads/2026/01/Linear-Induction-Motor-300x135.png 300w, https://howelectrical.com/wp-content/uploads/2026/01/Linear-Induction-Motor-1024x462.png 1024w, https://howelectrical.com/wp-content/uploads/2026/01/Linear-Induction-Motor-768x346.png 768w" sizes="(max-width: 1231px) 100vw, 1231px" /></p>
<p>(a) A conventional induction motor is cut along its axis and then unfolded into a flat structure to form a Linear Induction Motor (LIM).<br data-start="266" data-end="269" />(b) A LIM configuration where the primary winding is on one side and the secondary consists of a flat metallic sheet.<br data-start="388" data-end="391" data-is-only-node="" />(c) A LIM in which the secondary metallic sheet is supported by an additional backing layer made of ferromagnetic material to improve the magnetic path.<br data-start="545" data-end="548" />(d) A double-sided LIM in which the secondary metal sheet is placed between two primary windings, one on each side.</p>
<p data-start="158" data-end="548">A Linear Induction Motor (LIM) can be visualized by imagining an ordinary induction motor that has been cut open along its length and unfolded into a flat structure. Even though the physical shape changes, the operating principle remains the same as that of a rotating induction motor. However, instead of producing rotational motion, the LIM produces straight-line or translational motion.</p>
<p data-start="550" data-end="1000">In a rotating induction motor, the stator forms the stationary part and the rotor forms the rotating part. But in a LIM, these elements are referred to as <strong data-start="705" data-end="730">primary and secondary</strong>. The primary corresponds to the stator and carries the three-phase winding, whereas the secondary corresponds to the rotor. Unlike a conventional rotor that contains embedded conductors, the secondary of a LIM is usually made from a flat metal sheet, commonly aluminum.</p>
<p data-start="1002" data-end="1321">If we compare both machines, the angular speed of a rotary induction motor becomes the <strong data-start="1089" data-end="1108">linear velocity</strong> in a LIM, and the torque produced in a normal motor becomes <strong data-start="1169" data-end="1194">thrust (linear force)</strong> in a LIM. While a rotary motor produces continuous rotation, a LIM produces a continuous straight-line force along its length.</p>
<p data-start="1323" data-end="1651">In many designs, the primary winding is made shorter than the secondary. In some applications, the opposite arrangement may be used, depending on motion requirements. To improve the magnetic path and reduce reluctance, the secondary metal sheet is often supported by a backing layer of ferromagnetic material such as iron.</p>
<p data-start="1653" data-end="2030">A LIM may be constructed with either a <strong data-start="1692" data-end="1716">single-sided primary</strong> or a <strong data-start="1722" data-end="1746">double-sided primary</strong>. In the single-sided type, the primary winding is placed on one side of the secondary sheet with an air-gap between them. In the double-sided type, there are two primary windings placed on opposite sides of the secondary, which helps produce stronger thrust and improved performance.</p>
<p data-start="2032" data-end="2275">Overall, a Linear Induction Motor is essentially a modified version of a conventional induction motor that has been transformed from a circular structure into a flat, linear form to generate <strong data-start="2223" data-end="2274">direct translational motion instead of rotation</strong>.</p>
<p data-start="187" data-end="890">When a three-phase AC supply is applied to the primary windings of a Linear Induction Motor, a <strong data-start="282" data-end="318">travelling linear magnetic field</strong> is produced. This field behaves in the same way as the rotating magnetic field in a conventional induction motor, except that here it moves in a straight line instead of rotating. The secondary of the LIM is generally a flat metal sheet, usually made of aluminum, and it is often supported by a layer of ferromagnetic material to improve the magnetic path. As the travelling magnetic field passes over the secondary sheet, <strong data-start="742" data-end="759">eddy currents</strong> are induced in it according to Lenz’s Law. These induced currents create their own magnetic field that opposes the original field.</p>
<p data-start="892" data-end="1459">The magnetic field produced in the primary and the opposing field in the secondary interact with each other. Because of this interaction, a <strong data-start="1032" data-end="1061">repulsive force or thrust</strong> is developed. This thrust causes motion as the magnetic field travels along the secondary surface. If the primary remains fixed and only the secondary is free, then the secondary moves in the <strong data-start="1254" data-end="1272">same direction</strong> as the travelling magnetic field. However, if the secondary is fixed and the primary is allowed to move, then the primary will move in the <strong data-start="1412" data-end="1434">opposite direction</strong> to the travelling field.</p>
<p data-start="1461" data-end="1612">In simple terms, the movement always occurs due to the reaction between the travelling magnetic field and the induced current field in the metal sheet.</p>
<h3><span style="color: #000080;">Important Constructional Parts</span></h3>
<ul>
<li><b>Primary (Stator Equivalent):</b> Contains three-phase distributed windings placed in slots similar to a normal stator.</li>
<li><b>Secondary (Rotor Equivalent):</b> Usually a flat conducting sheet made of aluminum or copper.</li>
<li><b>Ferromagnetic Backing Plate:</b> Often placed behind the secondary to improve flux linkage and reduce reluctance.</li>
<li><b>Air-Gap:</b> Separates the primary and secondary parts; in LIMs it is larger compared to rotary machines.</li>
<li><b>Mechanical Frame:</b> Provides support, insulation and mounting structure.</li>
</ul>
<p>In many LIM designs, the primary winding may be located on one side or both sides of the secondary plate, resulting in:</p>
<ul>
<li>Single-sided LIM</li>
<li>Double-sided LIM</li>
</ul>
<h2><span style="color: #000080;">Working Principle of Linear Induction Motor</span></h2>
<p>The working principle of a Linear Induction Motor is based on the production of a <b>travelling magnetic field</b>. When a three-phase AC supply is applied to the primary winding, a magnetic field is produced which travels linearly along the length of the primary. This traveling magnetic wave cuts the conducting secondary plate and induces eddy currents in it.</p>
<p>According to Lenz’s Law, the induced currents produce their own magnetic field which opposes the cause producing them. The interaction of the traveling magnetic field and the induced secondary field results in a <b>thrust force</b>, causing linear motion of the secondary or primary depending on which one is free to move.</p>
<div class="highlight"><b>Key Point:</b> In a rotary induction motor torque is produced, whereas in a LIM <b>thrust</b> is produced.</div>
<div></div>
<h2><span style="color: #000080;">Performance Characteristics and Discussion</span></h2>
<p><img decoding="async" class="size-full wp-image-4919 aligncenter" src="https://howelectrical.com/wp-content/uploads/2026/01/What-is-Linear-Induction-Motor-Definition-Construction-Working-Principle-Diagram-Characteristics-Derivation-Advantages-Disadvantages-Applications.png" alt="What is Linear Induction Motor Definition, Construction, Working Principle, Diagram, Characteristics, Derivation, Advantages, Disadvantages &amp; Applications" width="1107" height="407" srcset="https://howelectrical.com/wp-content/uploads/2026/01/What-is-Linear-Induction-Motor-Definition-Construction-Working-Principle-Diagram-Characteristics-Derivation-Advantages-Disadvantages-Applications.png 1107w, https://howelectrical.com/wp-content/uploads/2026/01/What-is-Linear-Induction-Motor-Definition-Construction-Working-Principle-Diagram-Characteristics-Derivation-Advantages-Disadvantages-Applications-300x110.png 300w, https://howelectrical.com/wp-content/uploads/2026/01/What-is-Linear-Induction-Motor-Definition-Construction-Working-Principle-Diagram-Characteristics-Derivation-Advantages-Disadvantages-Applications-1024x376.png 1024w, https://howelectrical.com/wp-content/uploads/2026/01/What-is-Linear-Induction-Motor-Definition-Construction-Working-Principle-Diagram-Characteristics-Derivation-Advantages-Disadvantages-Applications-768x282.png 768w" sizes="(max-width: 1107px) 100vw, 1107px" /></p>
<p>The linear induction motor shown in figure (b) is obtained by modifying the rotary induction motor shown in figure (a), where the cylindrical motor is cut open and converted into a flat linear form.</p>
<p data-start="191" data-end="536">In a conventional induction motor, when a three-phase AC supply is applied to the stator windings, a rotating magnetic field is produced which rotates at synchronous speed. The same concept applies to a Linear Induction Motor (LIM), but instead of a rotating field, a <strong data-start="459" data-end="483">travelling flux wave</strong> is produced along the length of the primary winding.</p>
<p data-start="538" data-end="959">When the three-phase supply is fed to the primary of a LIM, a travelling magnetic flux density wave moves forward along the motor, as illustrated in the figure. This changing magnetic field cuts the secondary conductor and induces an emf in it. As a result, current begins to flow in the secondary sheet. The interaction between the induced current and the travelling magnetic field produces a <strong data-start="932" data-end="958">linear force or thrust</strong>.</p>
<p data-start="961" data-end="1285">If the primary remains stationary and the secondary is free to move, the secondary body will travel in the <strong data-start="1068" data-end="1086">same direction</strong> as the moving magnetic wave. On the other hand, if the secondary is fixed and the primary is allowed to move freely, then the primary will move in the <strong data-start="1238" data-end="1260">opposite direction</strong> of the travelling field. The velocity of the travelling magnetic wave is represented as \(V_s\)<span class="katex-html" style="font-size: 16px;" aria-hidden="true"><span class="base"><span class="mord"><span class="msupsub"><span class="vlist-t vlist-t2"><span class="vlist-r"><span class="vlist-s">​</span></span></span></span></span></span></span><span style="font-size: 16px;">, while the actual velocity of the moving secondary is denoted as \(V_s\)</span><span style="font-size: 16px;">. The difference between these velocities leads to translational slip, which defines the relative motion between the flux wave and the secondary.</span></p>
<h2><span style="color: #000080;">Thrust-Speed Characteristics of LIM</span></h2>
<p><img loading="lazy" decoding="async" class="size-full wp-image-4918 aligncenter" src="https://howelectrical.com/wp-content/uploads/2026/01/What-is-Linear-Induction-Motor.png" alt="What is Linear Induction Motor" width="922" height="540" srcset="https://howelectrical.com/wp-content/uploads/2026/01/What-is-Linear-Induction-Motor.png 922w, https://howelectrical.com/wp-content/uploads/2026/01/What-is-Linear-Induction-Motor-300x176.png 300w, https://howelectrical.com/wp-content/uploads/2026/01/What-is-Linear-Induction-Motor-768x450.png 768w" sizes="auto, (max-width: 922px) 100vw, 922px" /></p>
<p>At high speeds, thrust reduces and becomes zero when the secondary speed approaches synchronous velocity $V_s$. Thus, maximum thrust occurs at some intermediate slip value.</p>
<p data-start="1287" data-end="1577"><span style="font-size: 1.7em; font-weight: bold; color: #000080;">Translational Slip and Synchronous Velocity in a Linear Induction Motor</span></p>
<div class="container">
<p>In a Linear Induction Motor (LIM), the motion of the secondary conductor is compared with the speed of the travelling magnetic wave produced by the primary winding. The difference between these two speeds is expressed in terms of <b>translational slip</b>. Slip represents how much slower the secondary moves compared to the travelling magnetic field.</p>
<p>The slip \(S\) is mathematically defined as:</p>
<p>$$ S = \frac{V_s &#8211; V}{V_s} $$</p>
<p>where \(V_s\) is the synchronous (travelling wave) velocity and \(V\) is the actual velocity of the secondary member.</p>
<p>The synchronous linear velocity of the travelling magnetic wave is given by:</p>
<p>$$ V_s = 2\,T_p\,f $$</p>
<p>Here, \(T_p\) is the pole pitch and \(f\) is the supply frequency. The pole pitch is expressed as:</p>
<p>$$ T_p = \frac{2\pi}{P} $$</p>
<p>where \(P\) represents the number of poles.</p>
<div class="highlight">
<p>For comparison, in a conventional induction motor the synchronous speed in revolutions per minute (rpm) is:</p>
<p>$$ N_s = \frac{120f}{P} $$</p>
<p>and in revolutions per second (rps):</p>
<p>$$ n_s = \frac{2f}{P} $$</p>
<p>Therefore, the corresponding linear synchronous velocity becomes:</p>
<p>$$ V_s = 2\pi n_s = \frac{2\pi}{P} \times 2f = 2fT_p $$</p>
</div>
<p>This relationship shows that the synchronous speed of the travelling field in a LIM depends directly on the supply frequency and the pole pitch. The slip determines the thrust-producing interaction between the secondary conductor and the travelling magnetic wave.</p>
</div>
<h2><span style="color: #000080;">Types of Linear Induction Motors</span></h2>
<div class="table-box">
<table>
<tbody>
<tr>
<th>Type</th>
<th>Description</th>
</tr>
<tr>
<td><b>Single-Sided LIM</b></td>
<td>Primary winding on one side and a single secondary plate.</td>
</tr>
<tr>
<td><b>Double-Sided LIM</b></td>
<td>Primary windings on both sides with the secondary plate in between.</td>
</tr>
<tr>
<td><b>Short Primary LIM</b></td>
<td>Primary length shorter than secondary; commonly used in transportation.</td>
</tr>
<tr>
<td><b>Short Secondary LIM</b></td>
<td>Secondary shorter than primary; used where moving mass must be light.</td>
</tr>
</tbody>
</table>
</div>
<h2><span style="color: #000080;">Advantages of Linear Induction Motor</span></h2>
<ul>
<li>Produces direct linear motion without mechanical gears or screws.</li>
<li>High starting thrust and fast acceleration.</li>
<li>Simple construction and low mechanical wear.</li>
<li>Suitable for automation and motion-control applications.</li>
<li>Ideal for magnetic levitation and transportation systems.</li>
<li>Silent operation and smooth movement.</li>
</ul>
<h2><span style="color: #000080;">Disadvantages of Linear Induction Motor</span></h2>
<ul>
<li>Low efficiency due to large air-gap and high magnetizing current.</li>
<li>Poor power factor compared to rotary machines.</li>
<li>High eddy current and copper losses.</li>
<li>Requires precise alignment and material selection.</li>
<li>Higher manufacturing cost.</li>
</ul>
<h2><span style="color: #000080;">Applications of Linear Induction Motor</span></h2>
<ul>
<li>High-speed transportation and maglev trains</li>
<li>Automated sliding doors and elevators</li>
<li>Material handling and conveyors</li>
<li>Airport baggage transport systems</li>
<li>Theme-park and roller-coaster propulsion</li>
<li>Robotics and precision actuation</li>
<li>Stage curtains and automatic gates</li>
<li>Shuttle launchers and magnetic launch systems</li>
</ul>
<h2><span style="color: #000080;">Conclusion</span></h2>
<p>The Linear Induction Motor is a powerful electromechanical system that produces direct translational motion using electromagnetic induction principles. Even though its efficiency and power factor are comparatively lower than traditional rotary motors, its ability to generate thrust without mechanical conversion makes it invaluable in specialized applications such as transportation, automation and motion-control systems. With advancements in materials and power electronics, LIM technology continues to evolve and expand into high-performance industrial and transportation environments.</p>
</div>
<p>The post <a href="https://howelectrical.com/linear-induction-motor/">What is Linear Induction Motor? Definition, Construction, Working Principle, Diagram, Characteristics, Advantages, Disadvantages &#038; Applications</a> appeared first on <a href="https://howelectrical.com">Electrical and Electronics Blog</a>.</p>
]]></content:encoded>

					<wfw:commentRss>https://howelectrical.com/linear-induction-motor/feed/</wfw:commentRss>
			<slash:comments>0</slash:comments>


			</item>
		<item>
		<title>What is Flux Meter? Definition, Construction, Working Principle, Diagram, Types, Advantages, Disadvantages &#038; Applications</title>
		<link>https://howelectrical.com/flux-meter/</link>
					<comments>https://howelectrical.com/flux-meter/#respond</comments>

		<dc:creator><![CDATA[admin]]></dc:creator>
		<pubDate>Wed, 07 Jan 2026 15:42:43 +0000</pubDate>
				<category><![CDATA[Basic Electrical]]></category>
		<guid isPermaLink="false">https://howelectrical.com/?p=4896</guid>

					<description><![CDATA[<p>A flux meter is an electrical measuring instrument used for determining the total magnetic flux linked with a magnetic material or a search coil. Unlike ordinary moving-coil instruments that measure steady current, a flux meter is specially designed to respond to very small currents produced due to a change in magnetic flux. It is widely [&#8230;]</p>
<p>The post <a href="https://howelectrical.com/flux-meter/">What is Flux Meter? Definition, Construction, Working Principle, Diagram, Types, Advantages, Disadvantages &#038; Applications</a> appeared first on <a href="https://howelectrical.com">Electrical and Electronics Blog</a>.</p>
]]></description>
										<content:encoded><![CDATA[<p><span style="font-size: 16px;">A flux meter is an electrical measuring instrument used for determining the total magnetic flux linked with a magnetic material or a search coil. </span><span style="font-size: 16px;">Unlike ordinary moving-coil instruments that measure steady current, a flux meter is specially designed to respond to very small currents produced due to a change in magnetic flux. </span><span style="font-size: 16px;">It is widely used in laboratories, magnetic testing, transformer research, magnetic core studies and electrical machine experiments.</span></p>
<div class="container">
<div class="highlight"><span style="color: #003300;"><b>Simple Meaning:</b></span> A flux meter measures the amount of magnetic flux or the change in magnetic flux in a magnetic circuit.</div>
</div>
<div></div>
<div>
<h2><span style="color: #000080;">Flux Meter Diagram</span></h2>
<p>The following diagrams illustrate the construction and working arrangement of a flux meter:</p>
<p><img loading="lazy" decoding="async" class="size-full wp-image-4898 aligncenter" src="https://howelectrical.com/wp-content/uploads/2026/01/Flux-Meter.png" alt="Flux Meter" width="838" height="727" srcset="https://howelectrical.com/wp-content/uploads/2026/01/Flux-Meter.png 838w, https://howelectrical.com/wp-content/uploads/2026/01/Flux-Meter-300x260.png 300w, https://howelectrical.com/wp-content/uploads/2026/01/Flux-Meter-768x666.png 768w" sizes="auto, (max-width: 838px) 100vw, 838px" /></p>
<p style="text-align: center;"><strong>Figure 1: Flux Meter.</strong></p>
<p>In the figure 1, a search coil is wound on a magnetic core that carries alternating flux. The coil of the flux meter is suspended in a weak control torque system using fine silver strips and a silk thread.</p>
</div>
<div class="container">
<h2><span style="color: #000080;">Definition of Flux Meter</span></h2>
<p>A flux meter is a highly sensitive moving-coil instrument that measures magnetic flux by detecting the amount of charge flowing through its coil when a change in magnetic flux occurs in a connected search coil. The deflection of the meter pointer is directly proportional to the change in magnetic flux linked with the search coil.</p>
<h2><span style="color: #000080;">Construction of Flux Meter</span></h2>
<p>The construction of a flux meter is similar to a highly sensitive permanent magnet moving-coil instrument, but several modifications are made so that it can measure change in magnetic flux instead of current. The major constructional parts are:</p>
<ul>
<li><b>Permanent Magnet System</b> – Produces a uniform magnetic field for the moving coil.</li>
<li><b>Lightweight Moving Coil</b> – Carries the measuring current coming from the search coil.</li>
<li><b>Silk Thread Suspension</b> – The coil is suspended with almost negligible restoring torque.</li>
<li><b>Fine Silver Control Strips</b> – Replace control springs to minimize control torque and damping.</li>
<li><b>Search Coil (External)</b> – Connected to the terminals of the flux meter and linked with the magnetic field.</li>
<li><b>Pointer and Scale</b> – Indicates the angular deflection proportional to change in flux.</li>
</ul>
<p>The absence of strong control springs allows the coil to respond freely even to a very small induced current. This makes the flux meter extremely sensitive to magnetic flux variations.</p>
<h2><span style="color: #000080;">Working Principle of Flux Meter</span></h2>
<p>The working principle of a flux meter is based on <b>electromagnetic induction</b> and <b>ballistic deflection</b>. When the magnetic flux linking the search coil changes, an EMF is induced in the coil according to Faraday’s law of electromagnetic induction. This induced EMF produces a current that flows through the flux meter coil.</p>
<p>Because the instrument has very low control torque and resistance, the coil experiences a deflecting torque proportional to the total charge passed. Hence, the angular deflection of the pointer becomes proportional to the change in magnetic flux.</p>
<div class="highlight"><span style="color: #003300;"><b>Key Principle:</b></span> The deflection of the flux meter is proportional to the total change in flux, not to the instantaneous rate of change of flux.</div>
<div></div>
<h2><span style="color: #000080;">Working of Flux Meter (Step-by-Step)</span></h2>
<ol>
<li>The search coil is placed over or around a magnetic specimen or core.</li>
<li>When the magnetic flux in the specimen changes, an EMF is induced in the search coil.</li>
<li>This induced EMF drives a small current through the flux meter coil.</li>
<li>The moving coil experiences a torque and starts deflecting.</li>
<li>The deflection stops once the flux becomes steady again.</li>
<li>The final deflection reading is proportional to the total change in magnetic flux.</li>
</ol>
<p>Therefore, the flux meter serves as an integrating instrument that measures the net change in flux rather than instantaneous flux density.</p>
<h2><span style="color: #000080;">Mathematical Relationship</span></h2>
<p>If <b>φ</b> is the change in flux and <b>θ</b> is the deflection, then:</p>
<div class="highlight">φ = (G / N) × θ</div>
<p>where G is the proportionality constant and N is the number of turns of the search coil.</p>
<h2><span style="color: #000080;">Types of Flux Meters</span></h2>
<div class="table-box">
<table>
<tbody>
<tr>
<th>Type</th>
<th>Description</th>
</tr>
<tr>
<td><b>Moving Coil Flux Meter</b></td>
<td>Traditional type based on mechanical deflection of a suspended coil.</td>
</tr>
<tr>
<td><b>Digital Flux Meter</b></td>
<td>Uses electronic circuits and digital integration for high-accuracy readings.</td>
</tr>
<tr>
<td><b>Vibrating Coil Flux Meter</b></td>
<td>Improved sensitivity using vibration-based detecting system.</td>
</tr>
<tr>
<td><b>Hall Effect Flux Meter</b></td>
<td>Uses Hall-effect sensors instead of a mechanical coil.</td>
</tr>
<tr>
<td><b>Portable Laboratory Flux Meter</b></td>
<td>Used in research labs and academic experiments.</td>
</tr>
</tbody>
</table>
</div>
<h2><span style="color: #000080;">Advantages of Flux Meter</span></h2>
<ul>
<li>Measures very small magnetic flux variations accurately.</li>
<li>High sensitivity and negligible control torque.</li>
<li>Uniform and linear scale reading.</li>
<li>Can measure total flux or change in flux directly.</li>
<li>Useful for transformer and magnetic material testing.</li>
<li>Low power consumption.</li>
<li>Can be used with shunt to increase measurement range.</li>
</ul>
<h2><span style="color: #000080;">Disadvantages of Flux Meter</span></h2>
<ul>
<li>Mechanical construction is delicate and requires careful handling.</li>
<li>Affected by external vibrations and shock.</li>
<li>Cannot measure steady flux directly — only change in flux.</li>
<li>Accuracy depends on uniform magnetic field conditions.</li>
<li>Needs frequent calibration.</li>
</ul>
<h2><span style="color: #000080;">Applications of Flux Meter</span></h2>
<ul>
<li>Measurement of magnetic flux in transformer cores.</li>
<li>Testing of permanent magnets and magnetic circuits.</li>
<li>Magnetic hysteresis and B-H loop experiments.</li>
<li>Measurement of flux linkage in rotating machines.</li>
<li>Calibration of electromagnetic instruments.</li>
<li>Magnetic material research laboratories.</li>
<li>Flux distribution analysis in electrical devices.</li>
</ul>
<h2><span style="color: #000080;">Conclusion</span></h2>
<p>A flux meter is an essential instrument in the study and testing of magnetic systems. Its ability to measure very small variations in magnetic flux makes it highly valuable in electrical engineering laboratories, magnetic material testing, transformer development and research activities. With the advancement of technology, modern digital flux meters have further improved accuracy, resolution and ease of operation, while still being based on the same fundamental principle of electromagnetic induction.</p>
</div>
<p>The post <a href="https://howelectrical.com/flux-meter/">What is Flux Meter? Definition, Construction, Working Principle, Diagram, Types, Advantages, Disadvantages &#038; Applications</a> appeared first on <a href="https://howelectrical.com">Electrical and Electronics Blog</a>.</p>
]]></content:encoded>

					<wfw:commentRss>https://howelectrical.com/flux-meter/feed/</wfw:commentRss>
			<slash:comments>0</slash:comments>


			</item>
	</channel>
</rss>
